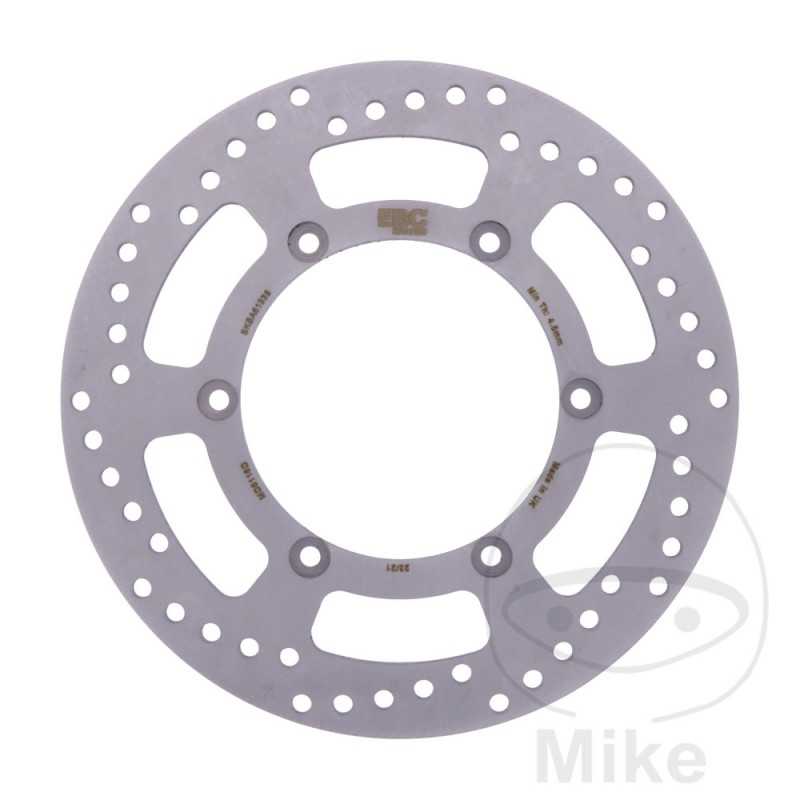

EBC motorcycle brake disc MX / ENDURO ATV 760.42.34
€93.85
€115.06
Save €21.21Tax included
EBC MX brake disc for offroad motorcycles. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 280MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA TDR 125 12,6 CV, 9,3 KW 1CIL. 4GW 4GW1 BASTIDORES: 4GW henceforth00101-- 1993-1995
YAMAHA TDR 125 12,6 CV, 9,3 KW 1CIL. 4GW 4GW4 BASTIDORES: 4GW henceforth24101-- 1996
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN2 BASTIDORES: 5AN henceforth01721-- 1997
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN4 BASTIDORES: 5AN henceforth04730-- 1998
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN6 BASTIDORES: 5AN henceforth08226-- 1999
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN8 BASTIDORES: 5AN henceforth10289-- 2000
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5ANA BASTIDORES: 5AN henceforth11362-- 2001
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5ANC BASTIDORES: 5AN henceforth12725-- 2002
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN1 BASTIDORES: 5AN henceforth00901-- 1997
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN3 BASTIDORES: 5AN henceforth04630-- 1998
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN5 BASTIDORES: 5AN henceforth08385-- 1999
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN7 BASTIDORES: 5AN henceforth10403-- 2000
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN9 BASTIDORES: 5AN henceforth11591-- 2001
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. 3TB 4PT3 BASTIDORES: 3TB-203101-- 1996
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. 3TB 4PT5 BASTIDORES: 3TB-229615-- 1997
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. 3TB 4PT7 BASTIDORES: 3TB-238135-- 1998
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. DJ021 4PT9 BASTIDORES: DJ021 henceforth00301-- 1999
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. DJ021 4PTA BASTIDORES: DJ021 henceforth06337-- 2000-2001
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. DJ021 4PTB BASTIDORES: DJ021 henceforth22489-- 2002-2003
YAMAHA XT 600 EH 45 CV, 33 KW 1CIL. 3TB 4PT1 BASTIDORES: 3TB-181101-3TB-200999 1995
YAMAHA XT 600 EN 34 CV, 25 KW 1CIL. 3UW 4SK1 BASTIDORES: 3UW henceforth30101-3UW henceforth31999 1995
YAMAHA XTZ 660 H TENERE 46 CV, 34 KW 1CIL. 3YF 4MY3 BASTIDORES: 3YF-106101-- 1996-1998
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 3YF1 BASTIDORES: 3YF henceforth00101-3YF henceforth29000 1991
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 3YF4 BASTIDORES: 3YF henceforth32101-3YF henceforth57000 1992
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 3YF7 BASTIDORES: 3YF henceforth64101-- 1993
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 4MY1 BASTIDORES: 3YF henceforth88101-3YF-104099 1994-1995
YAMAHA XTZ 660 N TENERE 27 CV, 20 KW 1CIL. 3YF 3YF3 BASTIDORES: 3YF henceforth59101-3YF henceforth62000 1992
YAMAHA XTZ 660 N TENERE 27 CV, 20 KW 1CIL. 3YF 3YF6 BASTIDORES: 3YF henceforth62101-- 1993
YAMAHA XTZ 660 N TENERE 34 CV, 25 KW 1CIL. 4MD 4NW1 BASTIDORES: 4MD henceforth01101-- 1994-1995
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 280MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA TDR 125 12,6 CV, 9,3 KW 1CIL. 4GW 4GW1 BASTIDORES: 4GW henceforth00101-- 1993-1995
YAMAHA TDR 125 12,6 CV, 9,3 KW 1CIL. 4GW 4GW4 BASTIDORES: 4GW henceforth24101-- 1996
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN2 BASTIDORES: 5AN henceforth01721-- 1997
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN4 BASTIDORES: 5AN henceforth04730-- 1998
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN6 BASTIDORES: 5AN henceforth08226-- 1999
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5AN8 BASTIDORES: 5AN henceforth10289-- 2000
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5ANA BASTIDORES: 5AN henceforth11362-- 2001
YAMAHA TDR 125 H 15 CV, 11 KW 1CIL. 5AN 5ANC BASTIDORES: 5AN henceforth12725-- 2002
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN1 BASTIDORES: 5AN henceforth00901-- 1997
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN3 BASTIDORES: 5AN henceforth04630-- 1998
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN5 BASTIDORES: 5AN henceforth08385-- 1999
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN7 BASTIDORES: 5AN henceforth10403-- 2000
YAMAHA TDR 125 N 80 KM/H 15 CV, 11 KW 1CIL. 5AN 5AN9 BASTIDORES: 5AN henceforth11591-- 2001
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. 3TB 4PT3 BASTIDORES: 3TB-203101-- 1996
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. 3TB 4PT5 BASTIDORES: 3TB-229615-- 1997
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. 3TB 4PT7 BASTIDORES: 3TB-238135-- 1998
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. DJ021 4PT9 BASTIDORES: DJ021 henceforth00301-- 1999
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. DJ021 4PTA BASTIDORES: DJ021 henceforth06337-- 2000-2001
YAMAHA XT 600 EH 40 CV, 29 KW 1CIL. DJ021 4PTB BASTIDORES: DJ021 henceforth22489-- 2002-2003
YAMAHA XT 600 EH 45 CV, 33 KW 1CIL. 3TB 4PT1 BASTIDORES: 3TB-181101-3TB-200999 1995
YAMAHA XT 600 EN 34 CV, 25 KW 1CIL. 3UW 4SK1 BASTIDORES: 3UW henceforth30101-3UW henceforth31999 1995
YAMAHA XTZ 660 H TENERE 46 CV, 34 KW 1CIL. 3YF 4MY3 BASTIDORES: 3YF-106101-- 1996-1998
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 3YF1 BASTIDORES: 3YF henceforth00101-3YF henceforth29000 1991
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 3YF4 BASTIDORES: 3YF henceforth32101-3YF henceforth57000 1992
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 3YF7 BASTIDORES: 3YF henceforth64101-- 1993
YAMAHA XTZ 660 H TENERE 48 CV, 35 KW 1CIL. 3YF 4MY1 BASTIDORES: 3YF henceforth88101-3YF-104099 1994-1995
YAMAHA XTZ 660 N TENERE 27 CV, 20 KW 1CIL. 3YF 3YF3 BASTIDORES: 3YF henceforth59101-3YF henceforth62000 1992
YAMAHA XTZ 660 N TENERE 27 CV, 20 KW 1CIL. 3YF 3YF6 BASTIDORES: 3YF henceforth62101-- 1993
YAMAHA XTZ 660 N TENERE 34 CV, 25 KW 1CIL. 4MD 4NW1 BASTIDORES: 4MD henceforth01101-- 1994-1995
760.42.34
10 Items
Data sheet
- CIRCLE MEASUREMENT
- 150 MM
- HOLE DIAMETER
- 8.5 MM
- INSIDE DIAMETER
- 150 MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 6
- EXTERNAL DIAMETER
- 280 MM
- THICKNESS
- 4 MM
