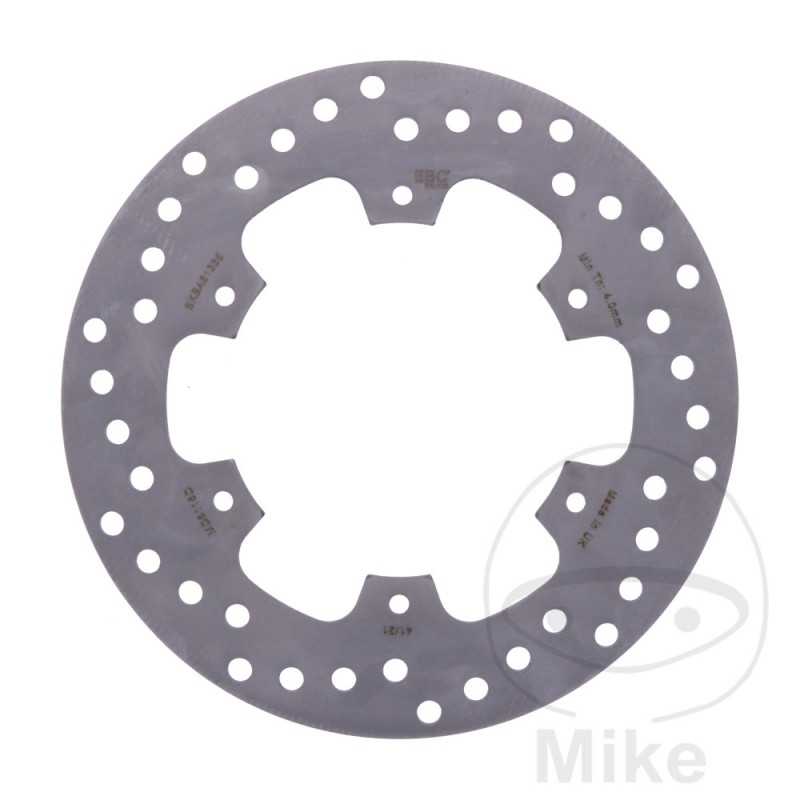

EBC motorcycle brake disc MX / ENDURO ATV 760.42.26

EBC MX brake disc for all-terrain motorcycles. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a slight flash of rust form after a long period of time.

The brake discs are drilled in a bird's wing design to function with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better braking behavior in the wet and less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic TT brake pads or for sports drivers EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary with respect to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 115.2MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM3 Bastidores: 4BL henceforth00101-- 1991
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM4 Bastidores: 4BL henceforth10101-4BL henceforth13000 1992-1993
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM6 Bastidores: 4BL henceforth23101-4BL henceforth28999 1994-1995
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM8 Bastidores: 4BL henceforth38101-- 1996
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D01 Bastidores: DE061 henceforth00142-DE061 henceforth06706 2004
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RM9 Bastidores: 4BL henceforth52099-- 1997
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RMB Bastidores: 4BL henceforth86042-- 1998
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMD Bastidores: DE031 henceforth00301-- 1999
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMJ Bastidores: DE031 henceforth03387-- 2000-2001
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMM Bastidores: DE031 henceforth07068-- 2002-2003
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMA Bastidores: 4BL henceforth57669-- 1997
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMC Bastidores: 4BL henceforth80321-- 1998
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RME Bastidores: DE032 henceforth00301-- 1999
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMG Bastidores: DE032 henceforth02301-- 2000-2001
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMK Bastidores: DE032 henceforth05008-- 2002-2003
Yamaha TDR 125 12,6 CV, 9,3 kw 1cil. 4GW 4GW1 Bastidores: 4GW henceforth00101-- 1993-1995
Yamaha TDR 125 12,6 CV, 9,3 kw 1cil. 4GW 4GW4 Bastidores: 4GW henceforth24101-- 1996
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN2 Bastidores: 5AN henceforth01721-- 1997
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN4 Bastidores: 5AN henceforth04730-- 1998
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN6 Bastidores: 5AN henceforth08226-- 1999
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN8 Bastidores: 5AN henceforth10289-- 2000
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5ANA Bastidores: 5AN henceforth11362-- 2001
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5ANC Bastidores: 5AN henceforth12725-- 2002
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN1 Bastidores: 5AN henceforth00901-- 1997
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN3 Bastidores: 5AN henceforth04630-- 1998
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN5 Bastidores: 5AN henceforth08385-- 1999
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN7 Bastidores: 5AN henceforth10403-- 2000
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN9 Bastidores: 5AN henceforth11591-- 2001
