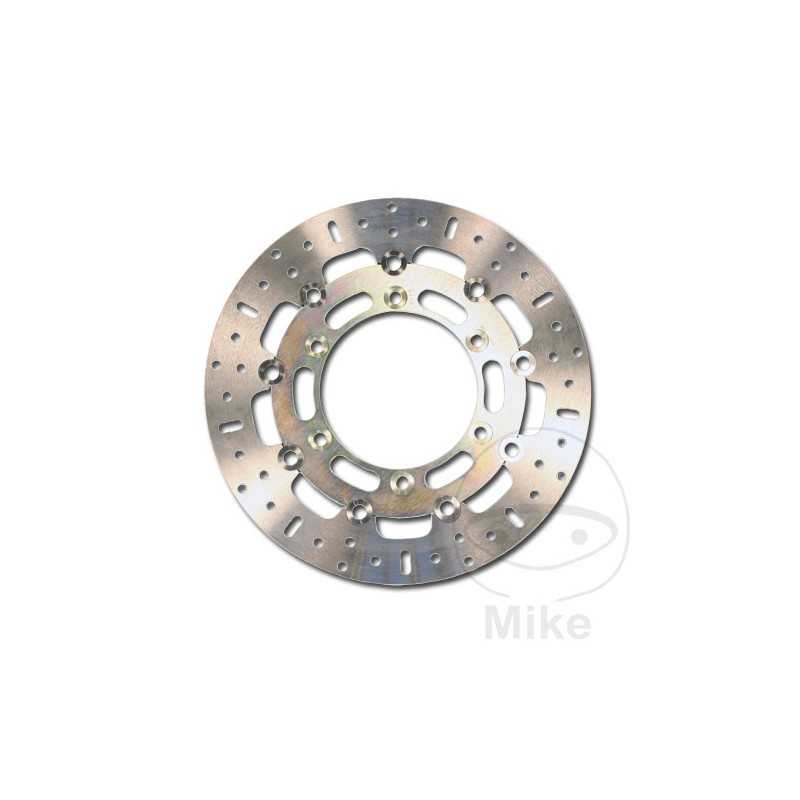

EBC motorcycle brake disc MX / ENDURO ATV 760.42.00

EBC Prolite brake disc, full float

EBC replaces the original rigid disc with a fully floating brake disc

Complete floats, very complex and expensive to manufacture, offer decisive advantages when it comes to braking. The brake ring, which is sawn, drilled and ground from forged HPSR steel bars, can freely expand without deformation even after repeated emergency braking, for example when going down mountain passes. Here, too, the low carbon content of the HPSR steel used has proven its worth as it ensures very few structural changes to the steel under the constant thermal stress of heating and cooling the brake disc in rough road use. An EBC fully floating brake disc is always a significant safety gain.

- Brake ring milled in forged HPSR steel with low carbon content.

- Therefore, there is no distortion of the brake disc even under the highest load.

- No glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect against corrosion.

- Anodized aluminum hub.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B M BASTIDORES: SR43B-100001-SR43B-100876 1991
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B N BASTIDORES: SR43B-100877-SR43B-101720 1992
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B P BASTIDORES: SR43B-101721-SR43B-103042 1993
SUZUKI DR 800 SU BIG 27 CV, 20 KW 1CIL. SR43B M BASTIDORES: SR43B-100001-SR43B-100876 1991
SUZUKI DR 800 SU BIG 27 CV, 20 KW 1CIL. SR43B N BASTIDORES: SR43B-100877-SR43B-101720 1992
SUZUKI DR 800 SU BIG 27 CV, 20 KW 1CIL. SR43B P BASTIDORES: SR43B-101721-SR43B-103042 1993
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 K1 BASTIDORES: AC1112 henceforth0114394-- 2001-2002
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 V BASTIDORES: AC1112 henceforth0100001-AC1112 henceforth0103735 1997
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 W BASTIDORES: AC1112 henceforth0103736-AC1112 henceforth0109546 1998
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 X BASTIDORES: AC1112 henceforth0109547-AC1112 henceforth0112016 1999
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 Y BASTIDORES: AC1112 henceforth0112017-AC1112 henceforth0114393 2000
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 K1 BASTIDORES: AC2112 henceforth0101790-- 2001-2002
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 V BASTIDORES: AC2112 henceforth0100001-AC2112 henceforth0104112 1997
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 W BASTIDORES: AC2112 henceforth0104113-AC2112 henceforth0101379 1998
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 X BASTIDORES: AC2112 henceforth0101380-AC2112 henceforth0101639 1999
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 Y BASTIDORES: AC2112 henceforth0101640-AC2112 henceforth0101789 2000
