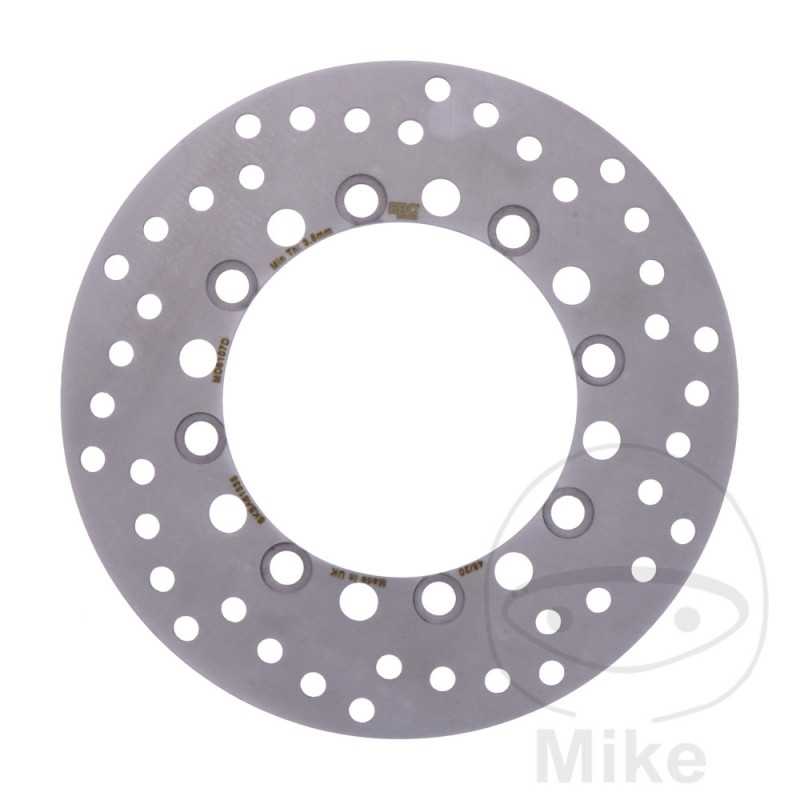

EBC motorcycle brake disc MX / ENDURO ATV 760.41.43

EBC MX brake disc for all-terrain motorcycles. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty drivers EBC sintered brake pads in an R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary with respect to the original part.
OUTER DIAMETER: 210MM
INSIDE DIAMETER: 110.2MM
CIRCLE SIZE: 126 MM
HOLES QUANTITY: 8
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KMX 125 B 15 CV, 11 KW 1CIL. MX125B 6 BASTIDORES: MX125B henceforth22001-MX125B henceforth26000 1991
KAWASAKI KMX 125 B 15 CV, 11 KW 1CIL. MX125B 7 BASTIDORES: MX125B henceforth26001-MX125B henceforth29000 1992-1994
KAWASAKI KMX 125 B 15 CV, 11 KW 1CIL. MX125B 8 BASTIDORES: MX125B henceforth35001-MX125B henceforth40000 1995-1997
KAWASAKI KMX 125 B 15 CV, 11 KW 1CIL. MX125B 9 BASTIDORES: MX125B henceforth40001-MX125B-999999 1998
KAWASAKI KMX 125 B 15 CV, 11 KW 1CIL. MX125BBCB 10 BASTIDORES: MX125BBCB henceforth0001-MX125BBCB henceforth7408 1999-2000
KAWASAKI KMX 125 B 15 CV, 11 KW 1CIL. MX125BBCB 11 BASTIDORES: MX125BBCB henceforth7409-MX125BBCB henceforth9958 2001
KAWASAKI KMX 125 B 15 CV, 11 KW 1CIL. MX125BBCB 12 BASTIDORES: MX125BBCB henceforth9959-- 2002-2003
KAWASAKI KMX 125 B 80 KM/H 6,5 CV, 4,8 KW 1CIL. MX125B 6 BASTIDORES: MX125B henceforth22001-MX125B henceforth26000 1991
KAWASAKI KMX 125 B 80 KM/H 6,5 CV, 4,8 KW 1CIL. MX125B 7 BASTIDORES: MX125B henceforth26001-MX125B henceforth29000 1992-1994
KAWASAKI KMX 125 B 80 KM/H 6,5 CV, 4,8 KW 1CIL. MX125B 8 BASTIDORES: MX125B henceforth35001-MX125B henceforth40000 1995-1997
KAWASAKI KMX 125 B 80 KM/H 6,5 CV, 4,8 KW 1CIL. MX125B 9 BASTIDORES: MX125B henceforth40001-MX125B-999999 1998
KAWASAKI KMX 125 B 80 KM/H 6,5 CV, 4,8 KW 1CIL. MX125BBCB 10 BASTIDORES: MX125BBCB henceforth0001-MX125BBCB henceforth7408 1999-2000
KAWASAKI KMX 125 B 80 KM/H 6,5 CV, 4,8 KW 1CIL. MX125BBCB 11 BASTIDORES: MX125BBCB henceforth7409-MX125BBCB henceforth9958 2001
KAWASAKI KMX 125 B 80 KM/H 6,5 CV, 4,8 KW 1CIL. MX125BBCB 12 BASTIDORES: MX125BBCB henceforth9959-- 2002-2003
