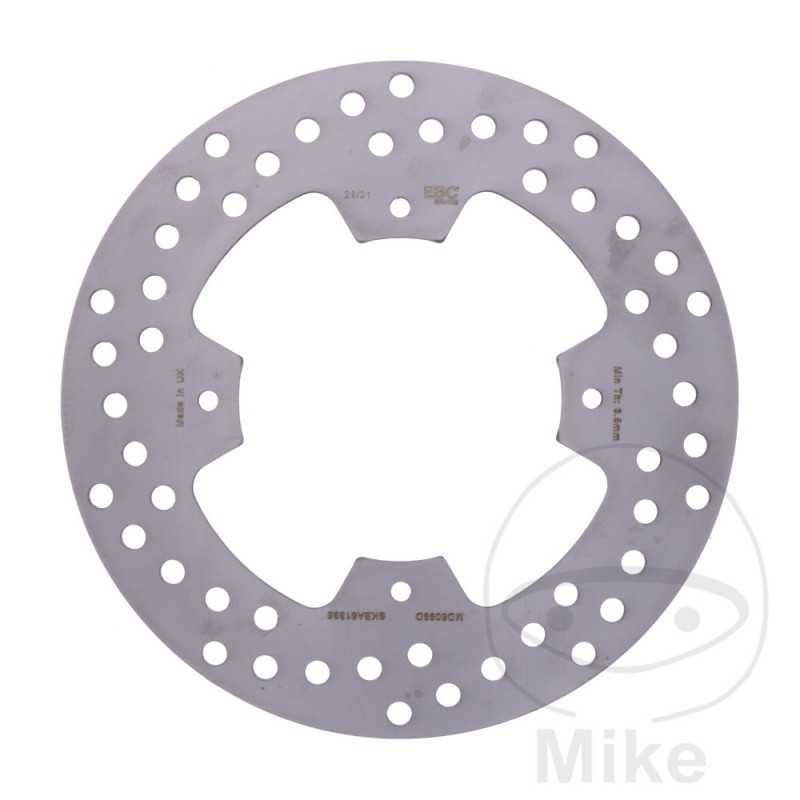

EBC motorcycle brake disc MX / ENDURO ATV 760.40.69

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA FMX 650 34 CV, 25 KW 1CIL. RD12B 5 BASTIDORES: VTM RD12B henceforth5E000001-VTM RD12B henceforth5E099999 2005
HONDA FMX 650 34 CV, 25 KW 1CIL. RD12B 6 BASTIDORES: VTM RD12B henceforth6E010001-- 2006-2007
HONDA FMX 650 38 CV, 28 KW 1CIL. RD12A 5 BASTIDORES: VTM RD12A henceforth5E000023-VTM RD12A henceforth5E099999 2005
HONDA FMX 650 38 CV, 28 KW 1CIL. RD12A 6 BASTIDORES: VTM RD12A henceforth6E210001-- 2006-2007
HONDA FX 650 VIGOR 34 CV, 25 KW 1CIL. RD09C X BASTIDORES: VTM RD09C henceforthXE110002-- 1999-2000
HONDA FX 650 VIGOR 39 CV, 29 KW 1CIL. RD09A X BASTIDORES: VTM RD09A henceforthXE420004-- 1999-2000
HONDA NX 650 DOMINATOR 27 CV, 20 KW 1CIL. RD02 N BASTIDORES: RD02-3500001-RD02-3500740 1992
HONDA NX 650 DOMINATOR 27 CV, 20 KW 1CIL. RD02 P BASTIDORES: RD02-3600001-- 1993
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD02 R BASTIDORES: RD02-7000001-- 1994
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD087 S BASTIDORES: ZDC RD087-1SF000396-- 1995
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B T BASTIDORES: ZDC RD08B henceforthTF100001-- 1996
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B V BASTIDORES: ZDC RD08B henceforthVF200001-- 1997
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B W BASTIDORES: ZDC RD08B henceforthWF300001-- 1998
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B X BASTIDORES: ZDC RD08B henceforthXF300001-- 1999-2000
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD02 N BASTIDORES: RD02-5500015-RD02-5508074 1992
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD02 P BASTIDORES: RD02-5600354-- 1993
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD02 R BASTIDORES: RD02-5700005-- 1994
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD087 S BASTIDORES: ZDC RD087 henceforthSF000276-- 1995
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A T BASTIDORES: ZDC RD08A henceforthTF100001-- 1996
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A V BASTIDORES: ZDC RD08A 0VF200001-- 1997
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A W BASTIDORES: ZDC RD08A henceforthWF300001-- 1998
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A X BASTIDORES: ZDC RD08A henceforthXF300001-- 1999-2000
HONDA SLR 650 34 CV, 25 KW 1CIL. RD09C V BASTIDORES: VTM RD09C henceforthVE000001-VTM RD09C henceforthVE001381 1997
HONDA SLR 650 34 CV, 25 KW 1CIL. RD09C W BASTIDORES: VTM RD09C henceforthWE000002-- 1998
HONDA SLR 650 39 CV, 29 KW 1CIL. RD09A V BASTIDORES: VTM RD09A henceforthVE100001-VTM RD09A henceforthVE101384 1997
HONDA SLR 650 39 CV, 29 KW 1CIL. RD09A W BASTIDORES: VTM RD09A henceforthWE100002-VTM RD09A henceforthWE100301 1998
