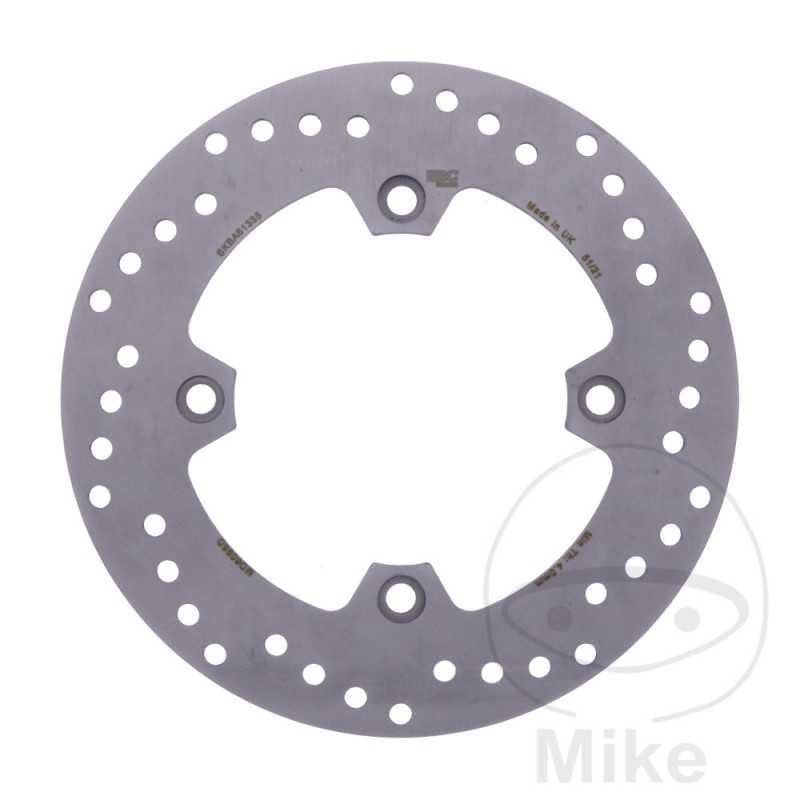

EBC motorcycle brake disc MX / ENDURO ATV 760.40.28

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 142 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA ATC 200 X 12,9 CV, 9,5 KW 1CIL. TB052 D BASTIDORES: JH3 TB052-DC263800-- 1983
HONDA ATC 200 X 12,9 CV, 9,5 KW 1CIL. TB052 E BASTIDORES: JH3 TB052-EC300015-- 1984
HONDA ATC 200 X 12,9 CV, 9,5 KW 1CIL. TB052 F BASTIDORES: JH3 TB052-FK400006-- 1985
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B T BASTIDORES: SP46B henceforth00500001-SP46B henceforth00501710 1996
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B V BASTIDORES: SP46B henceforth00501711-SP46B henceforth00502735 1997
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B W BASTIDORES: SP46B henceforth00502736-SP46B henceforth00503488 1998
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B X BASTIDORES: SP46B henceforth00503489-SP46B henceforth00503800 1999
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B Y BASTIDORES: SP46B henceforth00503801-- 2000
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B T BASTIDORES: SP46B henceforth00500001-SP46B henceforth00501710 1996
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B V BASTIDORES: SP46B henceforth00501711-SP46B henceforth00502735 1997
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B W BASTIDORES: SP46B henceforth00502736-SP46B henceforth00503488 1998
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B X BASTIDORES: SP46B henceforth00503489-SP46B henceforth00503800 1999
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B Y BASTIDORES: SP46B henceforth00503801-- 2000
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 K1 BASTIDORES: AC1112 henceforth0114394-- 2001-2002
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 V BASTIDORES: AC1112 henceforth0100001-AC1112 henceforth0103735 1997
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 W BASTIDORES: AC1112 henceforth0103736-AC1112 henceforth0109546 1998
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 X BASTIDORES: AC1112 henceforth0109547-AC1112 henceforth0112016 1999
SUZUKI XF 650 FREEWIND 48 CV, 35 KW 1CIL. AC1112 Y BASTIDORES: AC1112 henceforth0112017-AC1112 henceforth0114393 2000
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 K1 BASTIDORES: AC2112 henceforth0101790-- 2001-2002
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 V BASTIDORES: AC2112 henceforth0100001-AC2112 henceforth0104112 1997
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 W BASTIDORES: AC2112 henceforth0104113-AC2112 henceforth0101379 1998
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 X BASTIDORES: AC2112 henceforth0101380-AC2112 henceforth0101639 1999
SUZUKI XF 650 U FREEWIND 34 CV, 25 KW 1CIL. AC2112 Y BASTIDORES: AC2112 henceforth0101640-AC2112 henceforth0101789 2000
