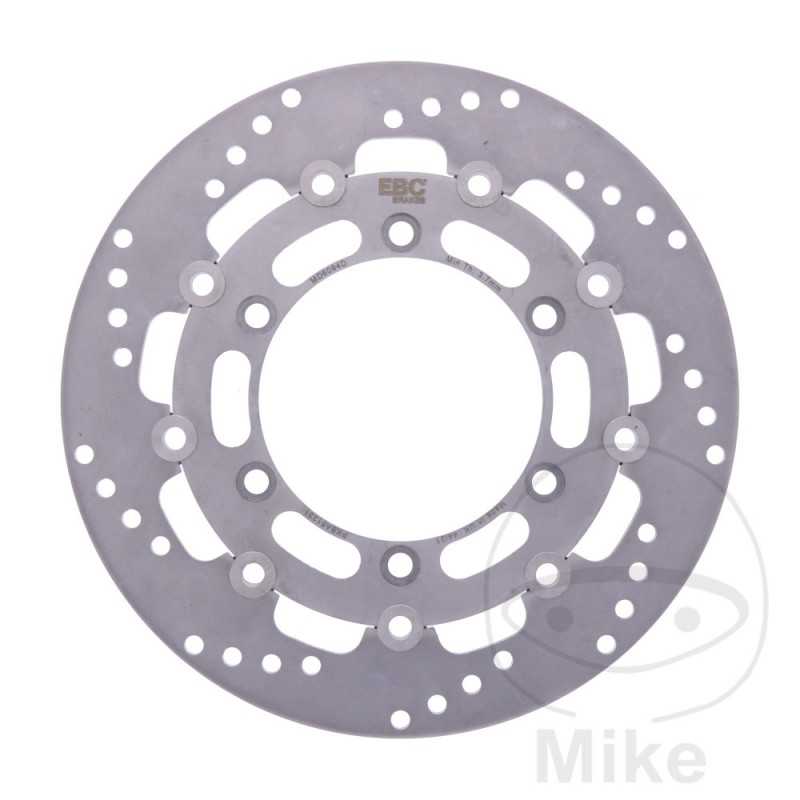

EBC motorcycle brake disc MX / ENDURO ATV 760.40.10

EBC Prolite floating brake disc, full floater. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Brake ring milled in forged HPSR steel with low carbon content.

- Therefore, there is no distortion of the brake disc even under the highest load.

- No glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect against corrosion.

- Anodized aluminum hub.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 290MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B T BASTIDORES: SP46B henceforth00500001-SP46B henceforth00501710 1996
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B V BASTIDORES: SP46B henceforth00501711-SP46B henceforth00502735 1997
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B W BASTIDORES: SP46B henceforth00502736-SP46B henceforth00503488 1998
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B X BASTIDORES: SP46B henceforth00503489-SP46B henceforth00503800 1999
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B Y BASTIDORES: SP46B henceforth00503801-- 2000
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B T BASTIDORES: SP46B henceforth00500001-SP46B henceforth00501710 1996
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B V BASTIDORES: SP46B henceforth00501711-SP46B henceforth00502735 1997
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B W BASTIDORES: SP46B henceforth00502736-SP46B henceforth00503488 1998
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B X BASTIDORES: SP46B henceforth00503489-SP46B henceforth00503800 1999
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B Y BASTIDORES: SP46B henceforth00503801-- 2000
