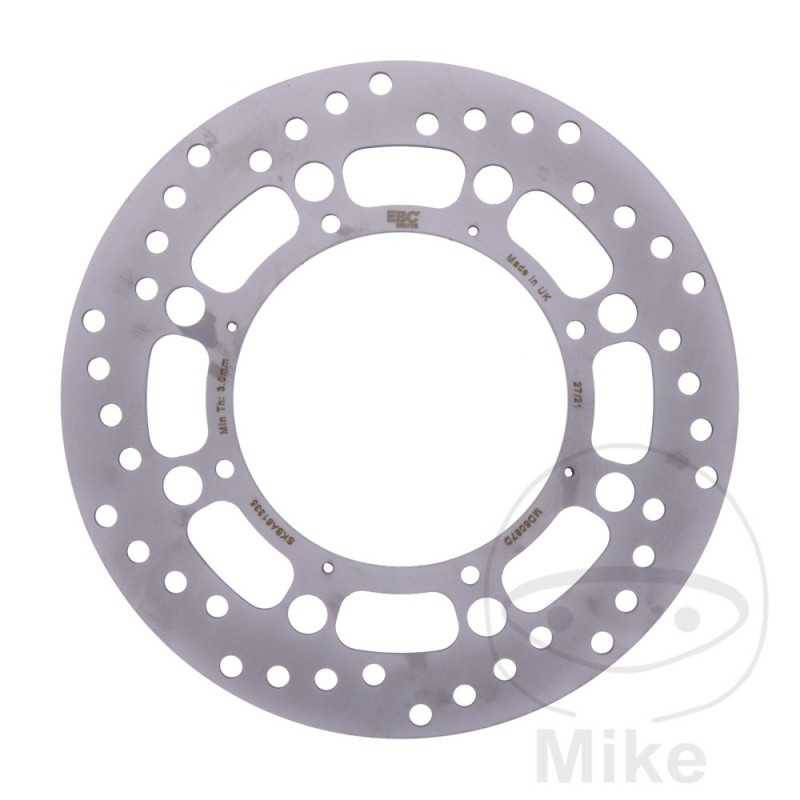

EBC motorcycle brake disc MX / ENDURO ATV 760.39.47
€92.20
Tax included
EBC MX brake disc for offroad motorcycles. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 118.6MM
CIRCLE SIZE: 134 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 1cil. JE01 J Bastidores: JE01-5900001-JE01-5904696 1988
Honda CR 125 R 1cil. JE010 F Bastidores: JH2 JE010-FC600037-JH2 JE010-FC608930 1985
Honda CR 125 R 1cil. JE010 G Bastidores: JH2 JE010-GC700633-JH2 JE010-GC709727 1986
Honda CR 125 R 1cil. JE010 H Bastidores: JH2 JE010-HC800417-JH2 JE010-HC806957 1987
Honda CR 125 R 31 CV, 23 kw 1cil. JE010 E Bastidores: JH2 JE010-EC500001-JH2 JE010-EC508307 1984
Honda CR 250 R 1cil. ME03 J Bastidores: ME03-2000002-ME03-2004982 1988
Honda CR 250 R 1cil. ME030 F Bastidores: JH2 ME030-FC700033-JH2 ME030-FC708919 1985
Honda CR 250 R 1cil. ME030 G Bastidores: JH2 ME030-GC800331-JH2 ME030-GC808877 1986
Honda CR 250 R 1cil. ME030 H Bastidores: JH2 ME030-HC900796-JH2 ME030-HC906301 1987
Honda CR 250 R 43 CV, 31,5 kw 1cil. ME030 E Bastidores: JH2 ME030-EC600052-JH2 ME030-EC606921 1984
Honda CR 500 R 1cil. PE02 J Bastidores: PE02-5700001-PE02-5799999 1988
Honda CR 500 R 1cil. PE020 E Bastidores: JH2 PE020-EC300001-JH2 PE020-EC399999 1984
Honda CR 500 R 1cil. PE020 F Bastidores: JH2 PE020-FC400016-JH2 PE020-FC499999 1985
Honda CR 500 R 1cil. PE020 G Bastidores: JH2 PE020-GC500323-JH2 PE020-GC599999 1986
Honda CR 500 R 1cil. PE020 H Bastidores: JH2 PE020-HC600619-JH2 PE020-HC699999 1987
Honda MTX 200 RW 27 CV, 20 kw 1cil. MD07 F Bastidores: MD07-5100001-MD07-5100419 1985-1988
Honda MTX 80 R2 10,1 CV, 7,4 kw 1cil. HD09 H Bastidores: HD09-5000009-HD09-5099999 1987
Honda XL 600 R 27 CV, 20 kw 1cil. PD03 F Bastidores: PD03-7000002-PD03-7099999 1985-1986
Honda XL 600 R 27 CV, 20 kw 1cil. PD03 H Bastidores: PD03-7100001-PD03-7199999 1987
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 D Bastidores: PD03-5000015-PD03-5056013 1983-1984
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 F Bastidores: PD03-5100010-PD03-5199999 1985-1986
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 H Bastidores: PD03-5200001-PD03-5299999 1987
Honda XR 250 R 1cil. ME06 G Bastidores: ME06-5200001-ME06-5200733 1986
Honda XR 250 R 1cil. ME06 H Bastidores: ME06-5300006-ME06-5301516 1987
Honda XR 250 R 1cil. ME06 J Bastidores: ME06-5400010-ME06-5401738 1988
Honda XR 250 R 1cil. ME06 K Bastidores: ME06-5500101-ME06-5500790 1989
Honda XR 250 R 1cil. ME06 L Bastidores: ME06-5600001-ME06-5602424 1990
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 F Bastidores: PE04-5000011-PE04-5002261 1985
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 G Bastidores: PE04-5100001-PE04-5101920 1986
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 H Bastidores: PE04-5200001-PE04-5201612 1987
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 J Bastidores: PE04-5300008-PE04-5302689 1988
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 K Bastidores: PE04-5400001-PE04-5402404 1989
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 L Bastidores: PE04-5500001-PE04-5503245 1990
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 118.6MM
CIRCLE SIZE: 134 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 1cil. JE01 J Bastidores: JE01-5900001-JE01-5904696 1988
Honda CR 125 R 1cil. JE010 F Bastidores: JH2 JE010-FC600037-JH2 JE010-FC608930 1985
Honda CR 125 R 1cil. JE010 G Bastidores: JH2 JE010-GC700633-JH2 JE010-GC709727 1986
Honda CR 125 R 1cil. JE010 H Bastidores: JH2 JE010-HC800417-JH2 JE010-HC806957 1987
Honda CR 125 R 31 CV, 23 kw 1cil. JE010 E Bastidores: JH2 JE010-EC500001-JH2 JE010-EC508307 1984
Honda CR 250 R 1cil. ME03 J Bastidores: ME03-2000002-ME03-2004982 1988
Honda CR 250 R 1cil. ME030 F Bastidores: JH2 ME030-FC700033-JH2 ME030-FC708919 1985
Honda CR 250 R 1cil. ME030 G Bastidores: JH2 ME030-GC800331-JH2 ME030-GC808877 1986
Honda CR 250 R 1cil. ME030 H Bastidores: JH2 ME030-HC900796-JH2 ME030-HC906301 1987
Honda CR 250 R 43 CV, 31,5 kw 1cil. ME030 E Bastidores: JH2 ME030-EC600052-JH2 ME030-EC606921 1984
Honda CR 500 R 1cil. PE02 J Bastidores: PE02-5700001-PE02-5799999 1988
Honda CR 500 R 1cil. PE020 E Bastidores: JH2 PE020-EC300001-JH2 PE020-EC399999 1984
Honda CR 500 R 1cil. PE020 F Bastidores: JH2 PE020-FC400016-JH2 PE020-FC499999 1985
Honda CR 500 R 1cil. PE020 G Bastidores: JH2 PE020-GC500323-JH2 PE020-GC599999 1986
Honda CR 500 R 1cil. PE020 H Bastidores: JH2 PE020-HC600619-JH2 PE020-HC699999 1987
Honda MTX 200 RW 27 CV, 20 kw 1cil. MD07 F Bastidores: MD07-5100001-MD07-5100419 1985-1988
Honda MTX 80 R2 10,1 CV, 7,4 kw 1cil. HD09 H Bastidores: HD09-5000009-HD09-5099999 1987
Honda XL 600 R 27 CV, 20 kw 1cil. PD03 F Bastidores: PD03-7000002-PD03-7099999 1985-1986
Honda XL 600 R 27 CV, 20 kw 1cil. PD03 H Bastidores: PD03-7100001-PD03-7199999 1987
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 D Bastidores: PD03-5000015-PD03-5056013 1983-1984
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 F Bastidores: PD03-5100010-PD03-5199999 1985-1986
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 H Bastidores: PD03-5200001-PD03-5299999 1987
Honda XR 250 R 1cil. ME06 G Bastidores: ME06-5200001-ME06-5200733 1986
Honda XR 250 R 1cil. ME06 H Bastidores: ME06-5300006-ME06-5301516 1987
Honda XR 250 R 1cil. ME06 J Bastidores: ME06-5400010-ME06-5401738 1988
Honda XR 250 R 1cil. ME06 K Bastidores: ME06-5500101-ME06-5500790 1989
Honda XR 250 R 1cil. ME06 L Bastidores: ME06-5600001-ME06-5602424 1990
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 F Bastidores: PE04-5000011-PE04-5002261 1985
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 G Bastidores: PE04-5100001-PE04-5101920 1986
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 H Bastidores: PE04-5200001-PE04-5201612 1987
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 J Bastidores: PE04-5300008-PE04-5302689 1988
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 K Bastidores: PE04-5400001-PE04-5402404 1989
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 L Bastidores: PE04-5500001-PE04-5503245 1990
760.39.47
10 Items
Data sheet
- EXTERNAL DIAMETER
- 240 MM
- CIRCLE MEASUREMENT
- 134MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 134MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 4
- THICKNESS
- 3.5 MM
