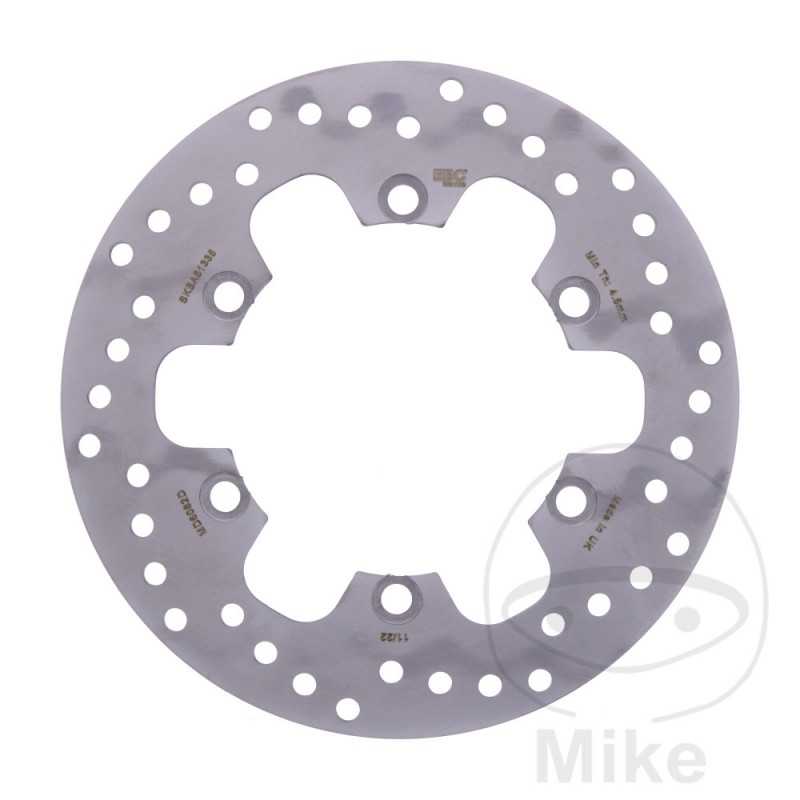

EBC motorcycle brake disc MX / ENDURO ATV 760.38.97

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 120.2MM
CIRCLE SIZE: 136 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KL 650 B TENGAI 42/27 CV, 31/20 KW 1CIL. KL650B 1 BASTIDORES: KL650B henceforth00001-KL650B henceforth04000 1989
KAWASAKI KL 650 B TENGAI 42/27 CV, 31/20 KW 1CIL. KL650B 2 BASTIDORES: KL650B henceforth04001-KL650B henceforth09500 1990
KAWASAKI KL 650 B TENGAI 42/27 CV, 31/20 KW 1CIL. KL650B 3 BASTIDORES: KL650B henceforth09501-KL650B-999999 1991
KAWASAKI KLE 500 A 34 CV, 20 KW 2CIL. LE500AAA 13 BASTIDORES: LE500AAA henceforth79001-LE500AAA henceforth85000 2003-2004
KAWASAKI KLE 500 A 34 CV, 25 KW 2CIL. LE500AAA 11 BASTIDORES: LE500AAA henceforth71001-LE500AAA henceforth76000 2001
KAWASAKI KLE 500 A 34 CV, 25 KW 2CIL. LE500AAA 12 BASTIDORES: LE500AAA henceforth76001-LE500AAA henceforth79000 2002
KAWASAKI KLE 500 A 34 CV, 25 KW 2CIL. LE500AAA 9 BASTIDORES: LE500AAA henceforth60001-LE500AAA-999999 1999-2000
KAWASAKI KLE 500 A 48 CV, 35 KW 2CIL. LE500AAA 11 BASTIDORES: LE500AAA henceforth71001-LE500AAA henceforth76000 2001
KAWASAKI KLE 500 A 48 CV, 35 KW 2CIL. LE500AAA 12 BASTIDORES: LE500AAA henceforth76001-LE500AAA henceforth79000 2002
KAWASAKI KLE 500 A 48 CV, 35 KW 2CIL. LE500AAA 13 BASTIDORES: LE500AAA henceforth79001-LE500AAA henceforth85000 2003-2004
KAWASAKI KLE 500 A 48 CV, 35 KW 2CIL. LE500AAA 9 BASTIDORES: LE500AAA henceforth60001-LE500AAA-999999 1999-2000
KAWASAKI KLE 500 A 48/34 CV, 35/25 KW 2CIL. LE500A 6 BASTIDORES: LE500A henceforth45001-LE500A henceforth50000 1996
KAWASAKI KLE 500 A 48/34 CV, 35/25 KW 2CIL. LE500A 7 BASTIDORES: LE500A henceforth50001-LE500A henceforth55000 1997
KAWASAKI KLE 500 A 48/34 CV, 35/25 KW 2CIL. LE500A 8 BASTIDORES: LE500A henceforth55001-LE500A henceforth60000 1998
KAWASAKI KLE 500 A 50/27 CV, 37/20 KW 2CIL. LE500A 1 BASTIDORES: LE500A henceforth00001-LE500A henceforth11000 1991
KAWASAKI KLE 500 A 50/27 CV, 37/20 KW 2CIL. LE500A 2 BASTIDORES: LE500A henceforth11001-LE500A henceforth27000 1992
KAWASAKI KLE 500 A 50/27 CV, 37/20 KW 2CIL. LE500A 3 BASTIDORES: LE500A henceforth27001-LE500A henceforth33000 1993
KAWASAKI KLE 500 A 50/34 CV, 37/25 KW 2CIL. LE500A 4 BASTIDORES: LE500A henceforth33001-LE500A henceforth39000 1994
KAWASAKI KLE 500 A 50/34 CV, 37/25 KW 2CIL. LE500A 5 BASTIDORES: LE500A henceforth39001-LE500A henceforth45000 1995
KAWASAKI KLE 500 B 45/34 CV, 33/20 KW 2CIL. LE500ABA 1P BASTIDORES: LE500ABA henceforth18001-LE500ABA henceforth91000 2005
KAWASAKI KLE 500 B 45/34 CV, 33/20 KW 2CIL. LE500ABA 6F BASTIDORES: LE500ABA henceforth91001-LE500ABA henceforth96000 2006
KAWASAKI KLE 500 B 45/34 CV, 33/20 KW 2CIL. LE500ABA 7F BASTIDORES: LE500ABA henceforth96001-LE500ABA-999999 2007
KAWASAKI KLR 650 A 48/27 CV, 35/19 KW 1CIL. KL650A 1 BASTIDORES: KL650A henceforth00001-- 1987
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCA 5 BASTIDORES: KL650CCA henceforth19001-KL650CCA henceforth28000 1999-2000
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCA 7 BASTIDORES: KL650CCA henceforth28001-KL650CCA-999999 2001
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCD 9 BASTIDORES: KL650CCD henceforth00980-KL650CCD henceforth01741 2003
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCDA 10 BASTIDORES: KL650CCDA henceforth1742-- 2004
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCDA 8 BASTIDORES: KL650CCDA henceforth0001-KL650CCDA henceforth0979 2002
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCA 5 BASTIDORES: KL650CCA henceforth19001-KL650CCA henceforth28000 1999-2000
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCA 7 BASTIDORES: KL650CCA henceforth28001-KL650CCA-999999 2001
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCD 9 BASTIDORES: KL650CCD henceforth00980-KL650CCD henceforth01741 2003
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCDA 10 BASTIDORES: KL650CCDA henceforth1742-- 2004
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCDA 8 BASTIDORES: KL650CCDA henceforth0001-KL650CCDA henceforth0979 2002
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 1 BASTIDORES: KL650C henceforth00001-KL650C henceforth08000 1995
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 2 BASTIDORES: KL650C henceforth08001-KL650C henceforth11000 1996
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 3 BASTIDORES: KL650C henceforth11001-KL650C henceforth15000 1997
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 4 BASTIDORES: KL650C henceforth15001-KL650C henceforth19000 1998
