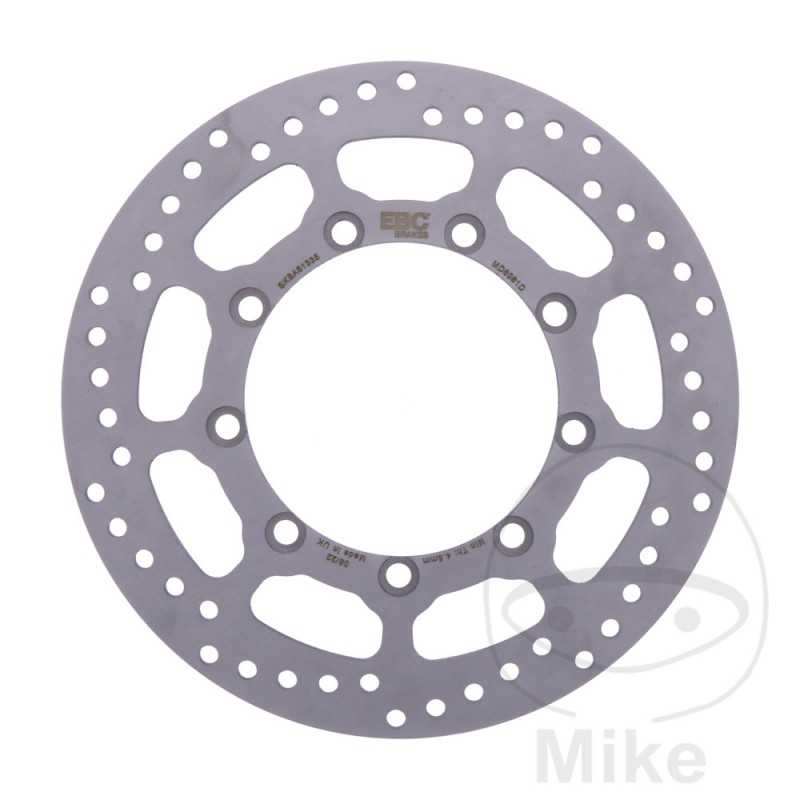

EBC motorcycle brake disc MX / ENDURO ATV 760.38.89

EBC MX brake disc for all-terrain motorcycles. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty drivers EBC sintered brake pads in an R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary with respect to the original part.
OUTER DIAMETER: 280MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 146 MM
HOLES QUANTITY: 9
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KL 650 B TENGAI 42/27 CV, 31/20 KW 1CIL. KL650B 1 BASTIDORES: KL650B henceforth00001-KL650B henceforth04000 1989
KAWASAKI KL 650 B TENGAI 42/27 CV, 31/20 KW 1CIL. KL650B 2 BASTIDORES: KL650B henceforth04001-KL650B henceforth09500 1990
KAWASAKI KL 650 B TENGAI 42/27 CV, 31/20 KW 1CIL. KL650B 3 BASTIDORES: KL650B henceforth09501-KL650B-999999 1991
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCA 5 BASTIDORES: KL650CCA henceforth19001-KL650CCA henceforth28000 1999-2000
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCA 7 BASTIDORES: KL650CCA henceforth28001-KL650CCA-999999 2001
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCD 9 BASTIDORES: KL650CCD henceforth00980-KL650CCD henceforth01741 2003
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCDA 10 BASTIDORES: KL650CCDA henceforth1742-- 2004
KAWASAKI KLR 650 C 34 CV, 25 KW 1CIL. KL650CCDA 8 BASTIDORES: KL650CCDA henceforth0001-KL650CCDA henceforth0979 2002
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCA 5 BASTIDORES: KL650CCA henceforth19001-KL650CCA henceforth28000 1999-2000
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCA 7 BASTIDORES: KL650CCA henceforth28001-KL650CCA-999999 2001
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCD 9 BASTIDORES: KL650CCD henceforth00980-KL650CCD henceforth01741 2003
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCDA 10 BASTIDORES: KL650CCDA henceforth1742-- 2004
KAWASAKI KLR 650 C 42 CV, 31 KW 1CIL. KL650CCDA 8 BASTIDORES: KL650CCDA henceforth0001-KL650CCDA henceforth0979 2002
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 1 BASTIDORES: KL650C henceforth00001-KL650C henceforth08000 1995
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 2 BASTIDORES: KL650C henceforth08001-KL650C henceforth11000 1996
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 3 BASTIDORES: KL650C henceforth11001-KL650C henceforth15000 1997
KAWASAKI KLR 650 C 42/34 CV, 31/25 KW 1CIL. KL650C 4 BASTIDORES: KL650C henceforth15001-KL650C henceforth19000 1998
