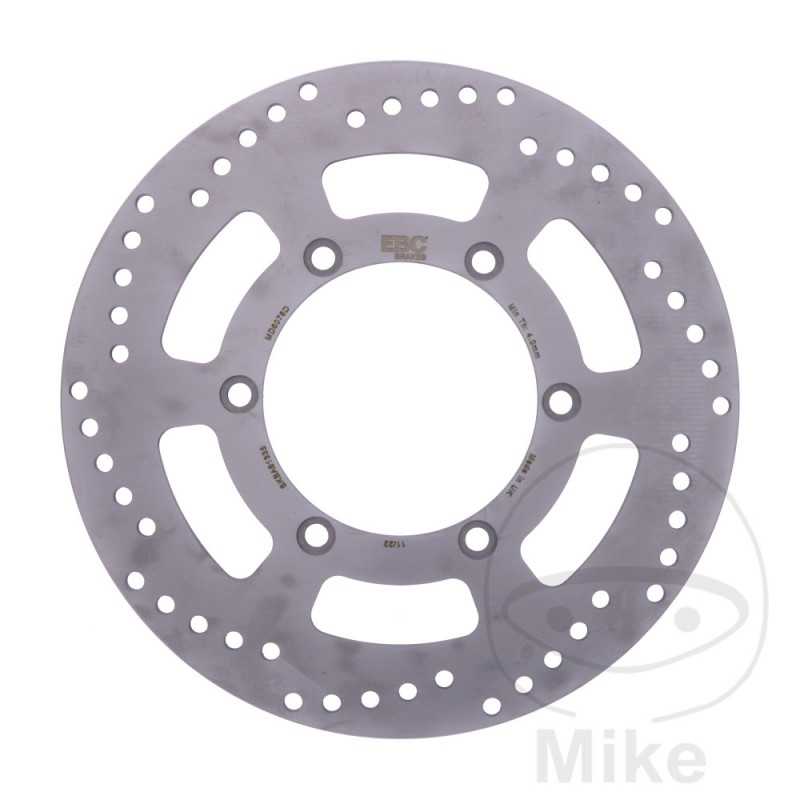

EBC motorcycle brake disc MX / ENDURO ATV 760.38.55

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 650 R 45 CV, 33 KW 1CIL. SP44B N BASTIDORES: SP44B-100001-SP44B-101523 1992
SUZUKI DR 650 R 45 CV, 33 KW 1CIL. SP44B P BASTIDORES: SP44B-101524-SP44B-103805 1993
SUZUKI DR 650 R 45 CV, 33 KW 1CIL. SP44B R BASTIDORES: SP44B-103806-- 1994-1995
SUZUKI DR 650 RE 45 CV, 33 KW 1CIL. SP45B R BASTIDORES: SP45B-100001-SP45B-101314 1994
SUZUKI DR 650 RE 45 CV, 33 KW 1CIL. SP45B S BASTIDORES: SP45B-101315-- 1995
SUZUKI DR 650 REU 34 CV, 25 KW 1CIL. SP45B R BASTIDORES: SP45B-100001-SP45B-101314 1994
SUZUKI DR 650 REU 34 CV, 25 KW 1CIL. SP45B S BASTIDORES: SP45B-101315-- 1995
SUZUKI DR 650 RSE 45 CV, 33 KW 1CIL. SP43B T BASTIDORES: SP43B-105569-- 1996
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B M BASTIDORES: SP43B-100001-SP43B-100904 1991
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B N BASTIDORES: SP43B-100905-SP43B-101857 1992
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B P BASTIDORES: SP43B-101858-SP43B-103588 1993
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B R BASTIDORES: SP43B-103589-SP43B-104946 1994
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B S BASTIDORES: SP43B-104947-SP43B-105568 1995
SUZUKI DR 650 RSEU 27 CV, 20 KW 1CIL. SP43B M BASTIDORES: SP43B-100001-SP43B-100904 1991
SUZUKI DR 650 RSEU 27 CV, 20 KW 1CIL. SP43B N BASTIDORES: SP43B-100905-SP43B-101857 1992
SUZUKI DR 650 RSEU 27 CV, 20 KW 1CIL. SP43B P BASTIDORES: SP43B-101858-SP43B-103588 1993
SUZUKI DR 650 RSEU 34 CV, 25 KW 1CIL. SP43B R BASTIDORES: SP43B-103589-SP43B-104946 1994
SUZUKI DR 650 RSEU 34 CV, 25 KW 1CIL. SP43B S BASTIDORES: SP43B-104947-SP43B-105568 1995
SUZUKI DR 650 RSEU 34 CV, 25 KW 1CIL. SP43B T BASTIDORES: SP43B-105569-- 1996
SUZUKI DR 650 RU 27 CV, 20 KW 1CIL. SP44B N BASTIDORES: SP44B-100001-SP44B-101523 1992
SUZUKI DR 650 RU 27 CV, 20 KW 1CIL. SP44B P BASTIDORES: SP44B-101524-SP44B-103805 1993
SUZUKI DR 650 RU 34 CV, 25 KW 1CIL. SP44B R BASTIDORES: SP44B-103806-- 1994-1995
