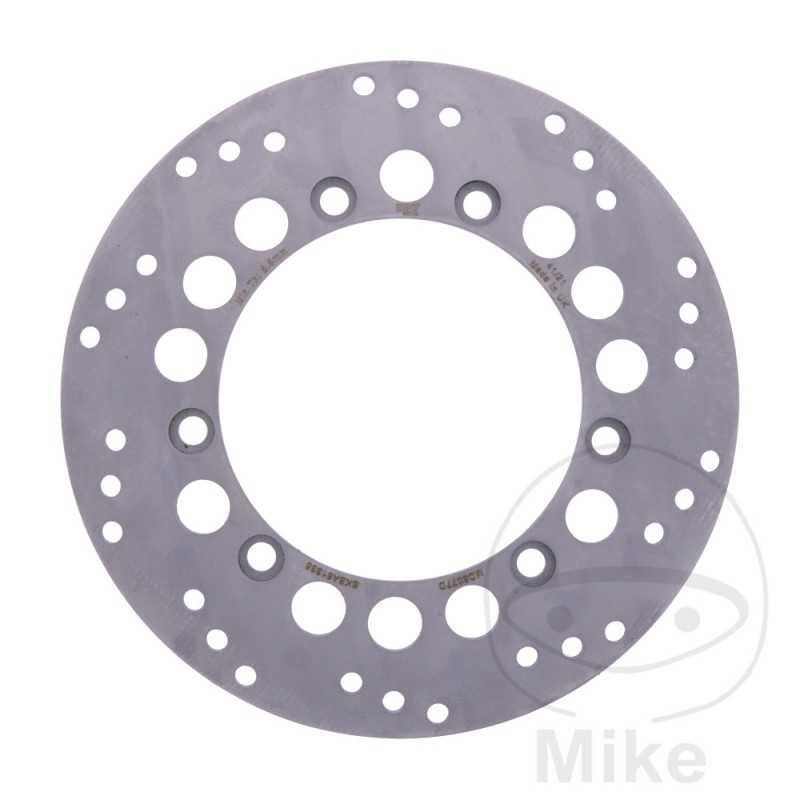

EBC motorcycle brake disc MX / ENDURO ATV 760.38.48

EBC MX brake disc for off-road motorcycles. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is crushed in the area of the contact patch of the brake pads when braking. It is only in this area that a light oxide film with a longer service life can form.

The brake discs are drilled in the bird's-eye design to fit through with as few holes as possible and at the same time the cleaning of the brake disc from rainwater and brake dust is optimized. The fewer holes drilled, the better the wet braking behavior and less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled braking surface with optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 134.6MM
CIRCLE SIZE: 155.5 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 600 R DAKAR 45 CV, 33 KW 1CIL. SN41A K BASTIDORES: SN41A-139723-- 1989
SUZUKI DR 600 RU DAKAR 27 CV, 20 KW 1CIL. SN41A K BASTIDORES: SN41A-139723-- 1989
SUZUKI DR 650 R 45 CV, 33 KW 1CIL. SP41B M BASTIDORES: SP41B-100704-- 1991
SUZUKI DR 650 R 45 CV, 33 KW 1CIL. SP44B N BASTIDORES: SP44B-100001-SP44B-101523 1992
SUZUKI DR 650 R 45 CV, 33 KW 1CIL. SP44B P BASTIDORES: SP44B-101524-SP44B-103805 1993
SUZUKI DR 650 R 45 CV, 33 KW 1CIL. SP44B R BASTIDORES: SP44B-103806-- 1994-1995
SUZUKI DR 650 R DAKAR 45 CV, 33 KW 1CIL. SP41B L BASTIDORES: SP41B-100001-SP41B-100703 1990-1991
SUZUKI DR 650 RE 45 CV, 33 KW 1CIL. SP45B R BASTIDORES: SP45B-100001-SP45B-101314 1994
SUZUKI DR 650 RE 45 CV, 33 KW 1CIL. SP45B S BASTIDORES: SP45B-101315-- 1995
SUZUKI DR 650 REU 34 CV, 25 KW 1CIL. SP45B R BASTIDORES: SP45B-100001-SP45B-101314 1994
SUZUKI DR 650 REU 34 CV, 25 KW 1CIL. SP45B S BASTIDORES: SP45B-101315-- 1995
SUZUKI DR 650 RS 46 CV, 34 KW 1CIL. SP42B L BASTIDORES: SP42B-100001-SP42B-101105 1990
SUZUKI DR 650 RS 46 CV, 34 KW 1CIL. SP42B M BASTIDORES: SP42B-101106-- 1991
SUZUKI DR 650 RSE 45 CV, 33 KW 1CIL. SP43B T BASTIDORES: SP43B-105569-- 1996
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B M BASTIDORES: SP43B-100001-SP43B-100904 1991
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B N BASTIDORES: SP43B-100905-SP43B-101857 1992
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B P BASTIDORES: SP43B-101858-SP43B-103588 1993
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B R BASTIDORES: SP43B-103589-SP43B-104946 1994
SUZUKI DR 650 RSE 46 CV, 34 KW 1CIL. SP43B S BASTIDORES: SP43B-104947-SP43B-105568 1995
SUZUKI DR 650 RSEU 27 CV, 20 KW 1CIL. SP43B M BASTIDORES: SP43B-100001-SP43B-100904 1991
SUZUKI DR 650 RSEU 27 CV, 20 KW 1CIL. SP43B N BASTIDORES: SP43B-100905-SP43B-101857 1992
SUZUKI DR 650 RSEU 27 CV, 20 KW 1CIL. SP43B P BASTIDORES: SP43B-101858-SP43B-103588 1993
SUZUKI DR 650 RSEU 34 CV, 25 KW 1CIL. SP43B R BASTIDORES: SP43B-103589-SP43B-104946 1994
SUZUKI DR 650 RSEU 34 CV, 25 KW 1CIL. SP43B S BASTIDORES: SP43B-104947-SP43B-105568 1995
SUZUKI DR 650 RSEU 34 CV, 25 KW 1CIL. SP43B T BASTIDORES: SP43B-105569-- 1996
SUZUKI DR 650 RSU 27 CV, 20 KW 1CIL. SP42B L BASTIDORES: SP42B-100001-SP42B-101105 1990
SUZUKI DR 650 RSU 27 CV, 20 KW 1CIL. SP42B M BASTIDORES: SP42B-101106-- 1991
SUZUKI DR 650 RU 27 CV, 20 KW 1CIL. SP41B M BASTIDORES: SP41B-100704-- 1991
SUZUKI DR 650 RU 27 CV, 20 KW 1CIL. SP44B N BASTIDORES: SP44B-100001-SP44B-101523 1992
SUZUKI DR 650 RU 27 CV, 20 KW 1CIL. SP44B P BASTIDORES: SP44B-101524-SP44B-103805 1993
SUZUKI DR 650 RU 34 CV, 25 KW 1CIL. SP44B R BASTIDORES: SP44B-103806-- 1994-1995
SUZUKI DR 650 RU DAKAR 27 CV, 20 KW 1CIL. SP41B L BASTIDORES: SP41B-100001-SP41B-100703 1990
SUZUKI DR 750 S BIG 50 CV, 37 KW 1CIL. SR41B K BASTIDORES: SR41B-101751-- 1989
SUZUKI DR 750 SU BIG 27 CV, 20 KW 1CIL. SR41B K BASTIDORES: SR41B-101751-- 1989
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR42B L BASTIDORES: SR42B-100001-- 1990
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B M BASTIDORES: SR43B-100001-SR43B-100876 1991
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B N BASTIDORES: SR43B-100877-SR43B-101720 1992
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B P BASTIDORES: SR43B-101721-SR43B-103042 1993
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B R BASTIDORES: SR43B-103043-SR43B-104152 1994
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B S BASTIDORES: SR43B-104153-SR43B-105520 1995-1996
SUZUKI DR 800 S BIG 50 CV, 37 KW 1CIL. SR43B V BASTIDORES: SR43B-105521-- 1997-1999
SUZUKI DR 800 SU BIG 27 CV, 20 KW 1CIL. SR42B L BASTIDORES: SR42B-100001-- 1990
SUZUKI DR 800 SU BIG 27 CV, 20 KW 1CIL. SR43B M BASTIDORES: SR43B-100001-SR43B-100876 1991
SUZUKI DR 800 SU BIG 27 CV, 20 KW 1CIL. SR43B N BASTIDORES: SR43B-100877-SR43B-101720 1992
SUZUKI DR 800 SU BIG 27 CV, 20 KW 1CIL. SR43B P BASTIDORES: SR43B-101721-SR43B-103042 1993
SUZUKI DR 800 SU BIG 34 CV, 25 KW 1CIL. SR43B R BASTIDORES: SR43B-103043-SR43B-104152 1994
SUZUKI DR 800 SU BIG 34 CV, 25 KW 1CIL. SR43B S BASTIDORES: SR43B-104153-SR43B-105520 1995-1996
SUZUKI DR 800 SU BIG 34 CV, 25 KW 1CIL. SR43B V BASTIDORES: SR43B-105521-- 1997-1999
