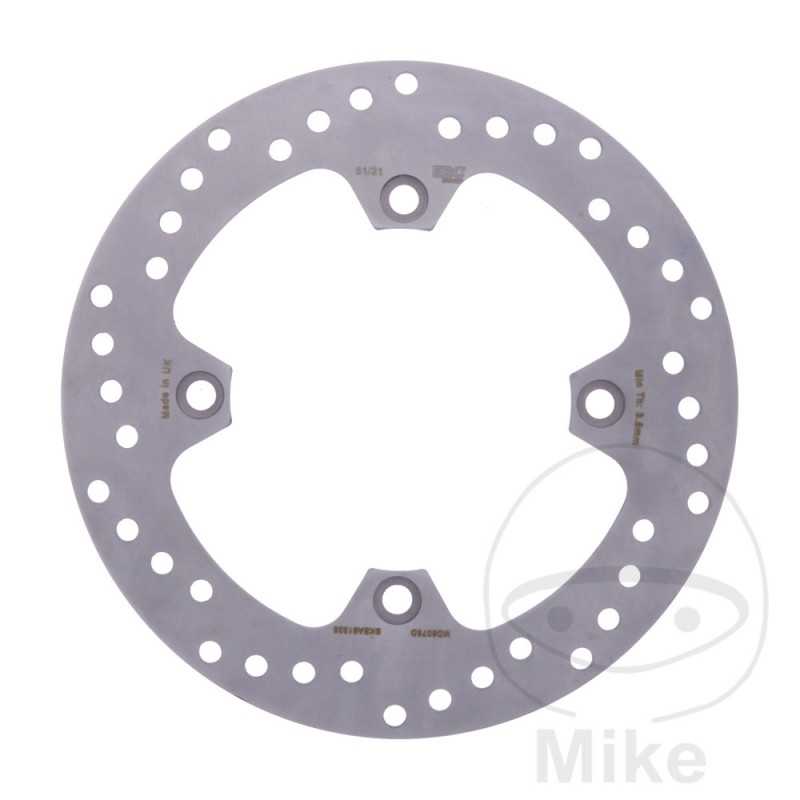

EBC motorcycle brake disc MX / ENDURO ATV 760.38.22

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 142 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 600 R DAKAR 45 CV, 33 KW 1CIL. SN41A G BASTIDORES: SN41A-114731-SN41A-123966 1986
SUZUKI DR 600 R DAKAR 45 CV, 33 KW 1CIL. SN41A H BASTIDORES: SN41A-123967-SN41A-132194 1987
SUZUKI DR 600 R DAKAR 45 CV, 33 KW 1CIL. SN41A J BASTIDORES: SN41A-132195-SN41A-139722 1988
SUZUKI DR 600 R DAKAR 45 CV, 33 KW 1CIL. SN41A K BASTIDORES: SN41A-139723-- 1989
SUZUKI DR 600 RU DAKAR 27 CV, 20 KW 1CIL. SN41A H BASTIDORES: SN41A-123967-SN41A-132194 1987
SUZUKI DR 600 RU DAKAR 27 CV, 20 KW 1CIL. SN41A J BASTIDORES: SN41A-132195-SN41A-139722 1988
SUZUKI DR 600 RU DAKAR 27 CV, 20 KW 1CIL. SN41A K BASTIDORES: SN41A-139723-- 1989
SUZUKI DR 600 S 45 CV, 33 KW 1CIL. SN41AD F BASTIDORES: SN41AD-100001-SN41AD-110318 1985
SUZUKI DR 600 S 45 CV, 33 KW 1CIL. SN41AD G BASTIDORES: SN41AD-110319-SN41AD-120042 1986
SUZUKI DR 600 S 45 CV, 33 KW 1CIL. SN41AD H BASTIDORES: SN41AD-120043-SN41AD-132184 1987
SUZUKI DR 600 S 45 CV, 33 KW 1CIL. SN41AD J BASTIDORES: SN41AD-132185-SN41AD-139712 1988
SUZUKI DR 600 S 45 CV, 33 KW 1CIL. SN41AD K BASTIDORES: SN41AD-139713-- 1989
SUZUKI DR 600 SU 27 CV, 20 KW 1CIL. SN41AD F BASTIDORES: SN41AD-100001-SN41AD-110318 1985
SUZUKI DR 600 SU 27 CV, 20 KW 1CIL. SN41AD G BASTIDORES: SN41AD-110319-SN41AD-120042 1986
SUZUKI DR 600 SU 27 CV, 20 KW 1CIL. SN41AD H BASTIDORES: SN41AD-120043-SN41AD-132184 1987
SUZUKI DR 600 SU 27 CV, 20 KW 1CIL. SN41AD J BASTIDORES: SN41AD-132185-SN41AD-139712 1988
SUZUKI DR 600 SU 27 CV, 20 KW 1CIL. SN41AD K BASTIDORES: SN41AD-139713-- 1989
SUZUKI TS 250 X 31/27 CV, 22,7/20 KW 1CIL. SJ11B G BASTIDORES: SJ11B-106752-SJ11B-107960 1986
SUZUKI TS 250 X 31/27 CV, 22,7/20 KW 1CIL. SJ11B H BASTIDORES: SJ11B-107961-SJ11B-108407 1987
SUZUKI TS 250 X 31/27 CV, 22,7/20 KW 1CIL. SJ11B J BASTIDORES: SJ11B-108408-SJ11B-108928 1988
SUZUKI TS 250 X 31/27 CV, 22,7/20 KW 1CIL. SJ11B K BASTIDORES: SJ11B-108929-- 1989
