EBC motorcycle brake disc MX / ENDURO ATV 760.37.80

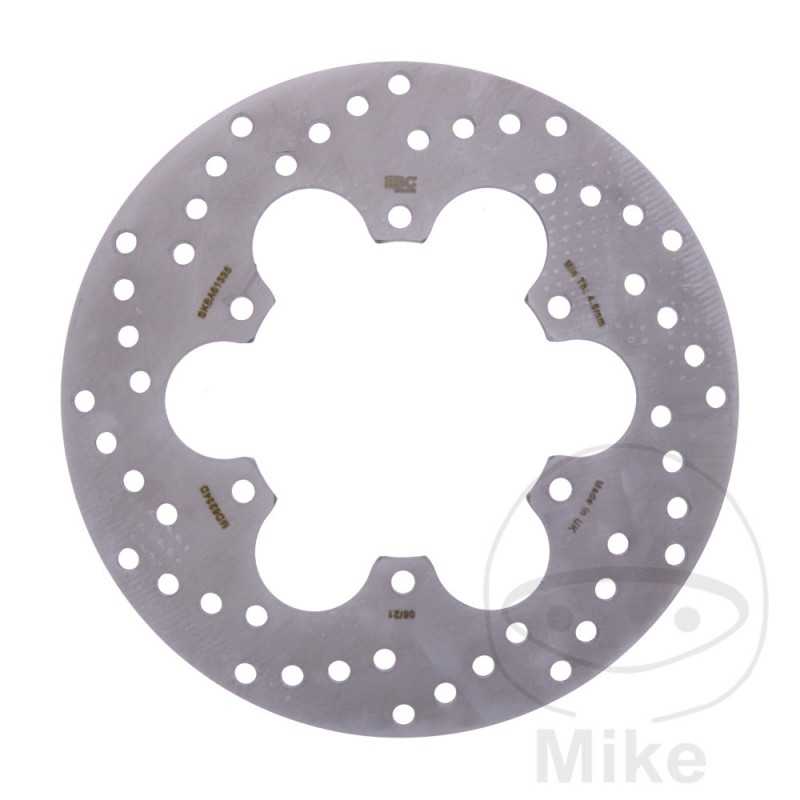

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 115.2MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 660 R 34 CV 25 kw 1cil. DM016 3S62 Bastidores: DM016 henceforth00275-- 2006
Yamaha XT 660 R 34 CV, 25 kw 1cil. - 3S61 Bastidores: --- 2005
Yamaha XT 660 R 34 CV, 25 kw 1cil. - 3S63 Bastidores: --- 2007
Yamaha XT 660 R 34 CV, 25 kw 1cil. - 3S64 Bastidores: --- 2008
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK1 Bastidores: DM011 henceforth00166-- 2004
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK4 Bastidores: DM011 henceforth09701-- 2005
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK6 Bastidores: DM011 henceforth14113-- 2006
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VK8 Bastidores: DM018 henceforth00166-- 2007
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKA Bastidores: DM018 henceforth03348-- 2008
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKC Bastidores: DM018 henceforth07086-- 2009
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKE Bastidores: DM018 henceforth07405-- 2010
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKG Bastidores: DM018 henceforth20001-- 2011-2013
Yamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKL Bastidores: DM018 henceforth22001-- 2014-2016
Yamaha XT 660 X 34 CV, 25 kw 1cil. - 11B1 Bastidores: --- 2007
Yamaha XT 660 X 34 CV, 25 kw 1cil. - 11B2 Bastidores: --- 2008
Yamaha XT 660 X 34 CV, 25 kw 1cil. - 3S71 Bastidores: --- 2005
Yamaha XT 660 X 34 CV, 25 kw 1cil. DM017 3S72 Bastidores: DM017 henceforth00270-- 2006
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM014 1D21 Bastidores: DM014 henceforth00151-- 2004
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM014 1D24 Bastidores: DM014 henceforth09730-- 2005
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM014 1D26 Bastidores: DM014 henceforth15350-- 2006
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S1 Bastidores: DM01B henceforth00101-- 2007
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S3 Bastidores: DM01B henceforth05021-- 2008
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S5 Bastidores: DM01B henceforth10286-- 2009
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S7 Bastidores: DM01B henceforth11402-- 2010
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S9 Bastidores: DM01B henceforth30001-- 2011-2013
Yamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10SC Bastidores: DM01B henceforth32001-- 2014-2016
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM021 11D1 Bastidores: DM021 henceforth00051-- 2008
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM021 11D2 Bastidores: DM021 henceforth08922-- 2009
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D6 Bastidores: DM025 henceforth00328-- 2010
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D8 Bastidores: DM025 henceforth01151-- 2011
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D9 Bastidores: DM025 henceforth02151-- 2012
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM041 2BD3 Bastidores: DM041 henceforth05101-- 2013-2014
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM041 2BD6 Bastidores: DM041 henceforth07101-- 2015-2016
Yamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM041 2BD7 Bastidores: DM041 henceforth07102-- 2015-2016
Yamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. - 2BE1 Bastidores: --- 2012
Yamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM024 56P1 Bastidores: DM024 henceforth00001-- 2011
Yamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM042 2BE2 Bastidores: DM042 henceforth05101-- 2013-2014
Yamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM042 2BE3 Bastidores: DM042 henceforth10252-- 2015-2016
