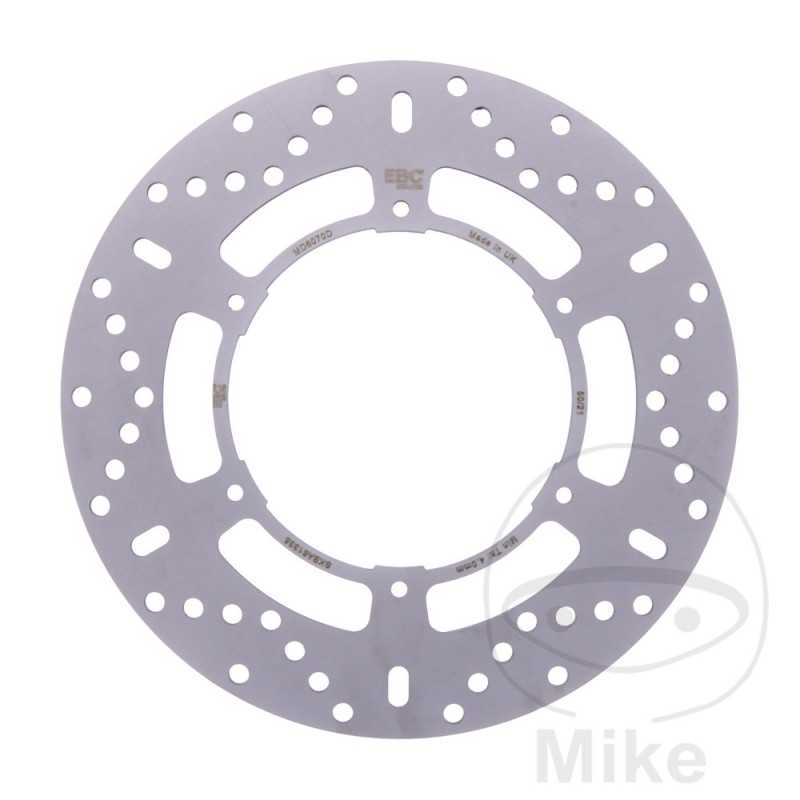

EBC motorcycle brake disc MX / ENDURO ATV 760.37.72

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 267MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.7 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XT 600 EH 45 CV, 33 KW 1CIL. 3TB 3TB1 BASTIDORES: 3TB henceforth00101-3TB henceforth20000 1990
YAMAHA XT 600 EH 45 CV, 33 KW 1CIL. 3TB 3TB3 BASTIDORES: 3TB henceforth37101-3TB henceforth56000 1991
YAMAHA XT 600 EH 45 CV, 33 KW 1CIL. 3TB 3TB5 BASTIDORES: 3TB henceforth58101-3TB henceforth90000 1992
YAMAHA XT 600 EH 45 CV, 33 KW 1CIL. 3TB 3TB7 BASTIDORES: 3TB-109101-- 1993
YAMAHA XT 600 EH 45 CV, 33 KW 1CIL. 3TB 3TB9 BASTIDORES: 3TB-161101-3TB-177999 1994
YAMAHA XT 600 EN 27 CV, 20 KW 1CIL. 3UW 3UW1 BASTIDORES: 3UW henceforth00101-3UW henceforth04000 1990
YAMAHA XT 600 EN 27 CV, 20 KW 1CIL. 3UW 3UW2 BASTIDORES: 3UW henceforth06101-3UW henceforth09000 1991
YAMAHA XT 600 EN 27 CV, 20 KW 1CIL. 3UW 3UW3 BASTIDORES: 3UW henceforth09101-3UW henceforth12000 1992
YAMAHA XT 600 EN 27 CV, 20 KW 1CIL. 3UW 3UW4 BASTIDORES: 3UW henceforth14101-- 1993
YAMAHA XT 600 EN 34 CV, 25 KW 1CIL. 3UW 4ME1 BASTIDORES: 3UW henceforth26101-3UW henceforth27999 1994
YAMAHA XT 600 H 44 CV, 32 KW 1CIL. 43F 43F BASTIDORES: 43F henceforth00101-43F henceforth36000 1984-1986
YAMAHA XT 600 H 45 CV, 33 KW 1CIL. 2KF 2KF BASTIDORES: 2KF henceforth00101-2KF henceforth35000 1987-1988
YAMAHA XT 600 H 45 CV, 33 KW 1CIL. 2KF 3PW1 BASTIDORES: 2KF henceforth19101-- 1989-1990
YAMAHA XT 600 KH 45 CV, 33 KW 1CIL. 3TB 3YP1 BASTIDORES: 3TB henceforth23101-3TB henceforth35000 1991
YAMAHA XT 600 KH 45 CV, 33 KW 1CIL. 3TB 3YP3 BASTIDORES: 3TB henceforth95101-3TB-109000 1992
YAMAHA XT 600 KH 45 CV, 33 KW 1CIL. 3TB 3YP5 BASTIDORES: 3TB-141101-- 1993
YAMAHA XT 600 KH 45 CV, 33 KW 1CIL. 3TB 3YP6 BASTIDORES: 3TB-154101-3TB-160999 1994-1995
YAMAHA XT 600 KN 27 CV, 20 KW 1CIL. 3UW 4AE1 BASTIDORES: 3UW henceforth04101-3UW henceforth06000 1991
YAMAHA XT 600 KN 27 CV, 20 KW 1CIL. 3UW 4AE2 BASTIDORES: 3UW henceforth12101-3UW henceforth14000 1992
YAMAHA XT 600 KN 27 CV, 20 KW 1CIL. 3UW 4AE3 BASTIDORES: 3UW henceforth18101-- 1993
YAMAHA XT 600 KN 34 CV, 25 KW 1CIL. 3UW 4MF1 BASTIDORES: 3UW henceforth28101-3UW029999 1994-1995
YAMAHA XT 600 N 27 CV, 20 KW 1CIL. 2NF 2NF BASTIDORES: 2NF henceforth00101-2NF henceforth05000 1987-1988
YAMAHA XT 600 N 27 CV, 20 KW 1CIL. 2NF 3PX1 BASTIDORES: 2NF henceforth02101-- 1989-1990
YAMAHA XT 600 N 27 CV, 20 KW 1CIL. 43F 49H BASTIDORES: 43F henceforth36101-43F henceforth41000 1984-1986
YAMAHA XT 600 Z TENERE 27 CV, 20 KW 1CIL. 55W 55W BASTIDORES: 55W henceforth00101-55W henceforth20000 1985
YAMAHA XT 600 Z TENERE 44 CV, 32 KW 1CIL. 34L 34L BASTIDORES: 34L henceforth00101-34L henceforth20000 1983
YAMAHA XT 600 Z TENERE 44 CV, 32 KW 1CIL. 34L 50T BASTIDORES: 34L henceforth20101-34L henceforth33000 1984
YAMAHA XT 600 Z TENERE 46 CV, 34 KW 1CIL. 1VJ 1VJ BASTIDORES: 1VJ henceforth00101-1VJ henceforth41000 1986-1987
YAMAHA XT 600 Z TENERE 46 CV, 34 KW 1CIL. 3AJ 3AJ1 BASTIDORES: 3AJ henceforth00101-3AJ henceforth31000 1988
YAMAHA XT 600 Z TENERE 46 CV, 34 KW 1CIL. 3AJ 3AJ4 BASTIDORES: 3AJ henceforth34101-3AJ henceforth54000 1989
YAMAHA XT 600 Z TENERE 46 CV, 34 KW 1CIL. 3AJ 3AJ6 BASTIDORES: 3AJ henceforth56101-3AJ henceforth66000 1990-1991
YAMAHA XT 600 Z TENERE 46 CV, 34 KW 1CIL. 55W 55W BASTIDORES: 55W henceforth00101-55W henceforth20000 1985
