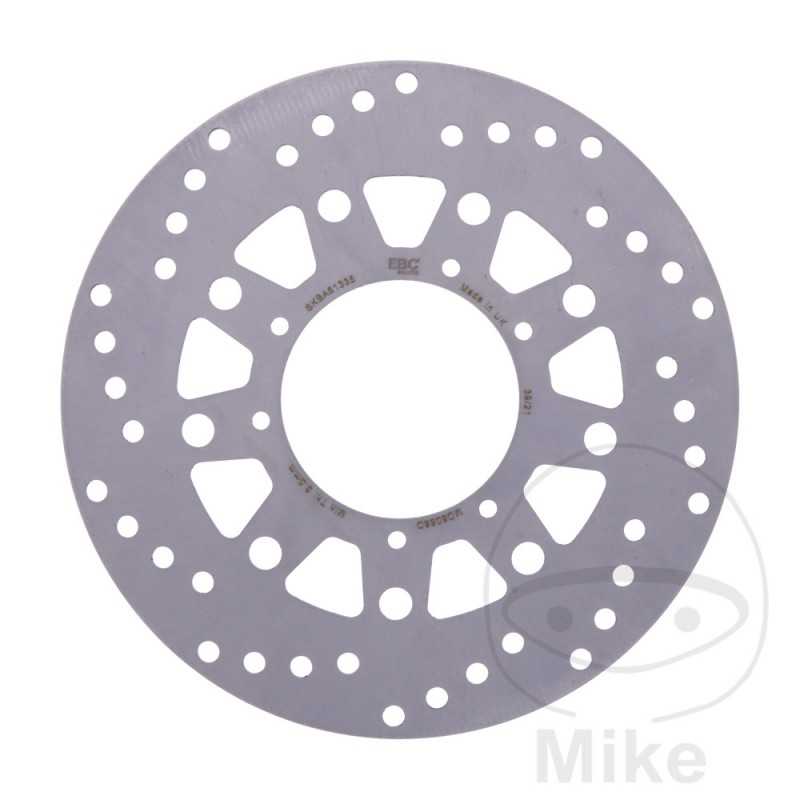

EBC motorcycle brake disc MX / ENDURO ATV 760.37.56
€67.15
€80.55
Save 16.63%Tax included
EBC MX brake disc for offroad motorcycles. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 86.2MM
CIRCLE SIZE: 102 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth15101-55V henceforth23000 1985
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth40101-55V henceforth45000 1986
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth45101-55V henceforth47000 1987
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth71101-55V henceforth73000 1988-1990
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 1WM 1WM BASTIDORES: 1WM henceforth23101-- 1986
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 3YT 3YT1 BASTIDORES: 3YT henceforth00101-3YT henceforth05000 1991
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 3YT 3YT3 BASTIDORES: 3YT henceforth09101-- 1992-1995
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 55V 1WM BASTIDORES: 55V henceforth57101-55V henceforth59000 1987
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 55V 1WM BASTIDORES: 55V henceforth59101-55V henceforth61000 1988-1990
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 86.2MM
CIRCLE SIZE: 102 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth15101-55V henceforth23000 1985
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth40101-55V henceforth45000 1986
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth45101-55V henceforth47000 1987
YAMAHA XT 350 H 27 CV, 20 KW 1CIL. 55V 59Y BASTIDORES: 55V henceforth71101-55V henceforth73000 1988-1990
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 1WM 1WM BASTIDORES: 1WM henceforth23101-- 1986
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 3YT 3YT1 BASTIDORES: 3YT henceforth00101-3YT henceforth05000 1991
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 3YT 3YT3 BASTIDORES: 3YT henceforth09101-- 1992-1995
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 55V 1WM BASTIDORES: 55V henceforth57101-55V henceforth59000 1987
YAMAHA XT 350 N 17 CV, 13 KW 1CIL. 55V 1WM BASTIDORES: 55V henceforth59101-55V henceforth61000 1988-1990
760.37.56
10 Items
Data sheet
- EXTERNAL DIAMETER
- 245MM
- CIRCLE MEASUREMENT
- 102MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 102MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 6
- THICKNESS
- 3.5 MM
