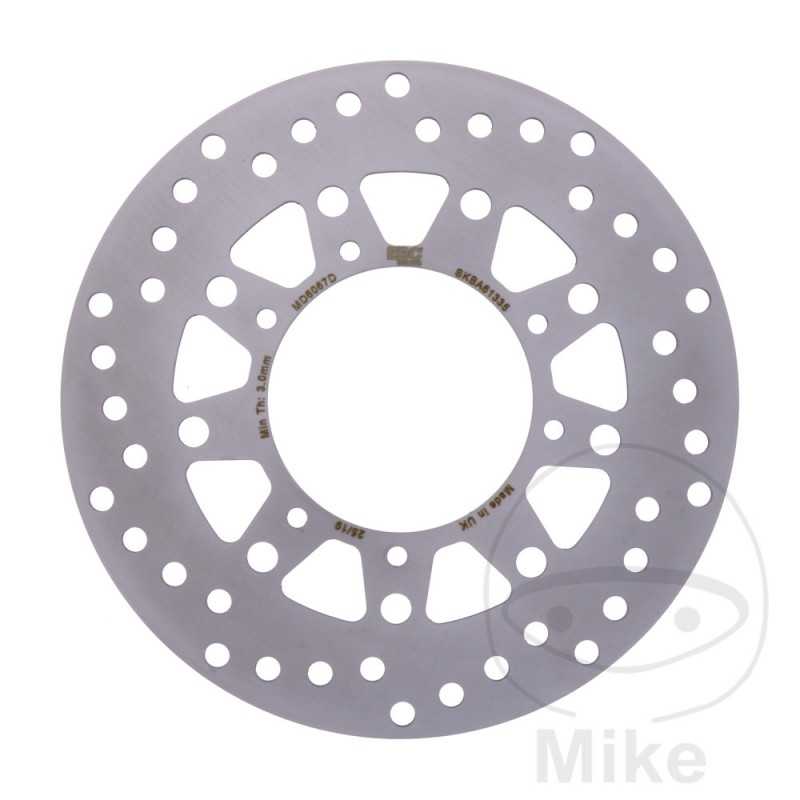

EBC motorcycle brake disc MX / ENDURO ATV 760.37.49

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 86.2MM
CIRCLE SIZE: 102 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK1 Bastidores: DE011 henceforth00301-- 1999
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK3 Bastidores: DE011 henceforth09747-- 2000
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE011 5EK5 Bastidores: DE011 henceforth19542-- 2001
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE051 5RS1 Bastidores: DE051 henceforth00301-- 2002
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE054 5RS3 Bastidores: DE054 henceforth00301-- 2003
Yamaha TW 125 H Trailway 12 CV, 8,7 kw 1cil. DE054 5RS5 Bastidores: DE054 henceforth04976-- 2004
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK2 Bastidores: DE012 henceforth00301-- 1999
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK4 Bastidores: DE012 henceforth01270-- 2000
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE012 5EK6 Bastidores: DE012 henceforth01510-- 2001
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE052 5RS2 Bastidores: DE052 henceforth00301-- 2002
Yamaha TW 125 N Trailway 80 Km/h 12 CV, 8,7 kw 1cil. DE055 5RS4 Bastidores: DE055 henceforth00301-- 2003
Yamaha TW 200 Trailway 16 CV, 11,7 kw 1cil. - Bastidores: --- 2001-2002
Yamaha XG 250 Tricker 19 CV, 14 kw 1cil. DG141 4D61 Bastidores: DG141 henceforth00301-- 2005-2006
Yamaha XG 250 Tricker 19 CV, 14 kw 1cil. DG141 4D62 Bastidores: DG141 henceforth00371-- 2005-2006
Yamaha XT 225 20 CV, 15 kw 1cil. - Bastidores: --- 1992-2007
Yamaha YZ 125 1cil. 1LX 1LX Bastidores: 1LX henceforth00101-1LX henceforth30000 1986
Yamaha YZ 125 1cil. 2HG 2HG Bastidores: 2HG henceforth00101-- 1987
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 1LU 1LU Bastidores: 1LU henceforth00101-1LU henceforth20000 1986
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 2HH 2HH Bastidores: 2HH henceforth00101-2HH henceforth20000 1987
Yamaha YZ 490 1cil. 1LV 1LV Bastidores: 1LV henceforth00101-1LV henceforth10000 1986
Yamaha YZ 490 1cil. 2HJ 2HJ Bastidores: 2HJ henceforth00101-- 1987
