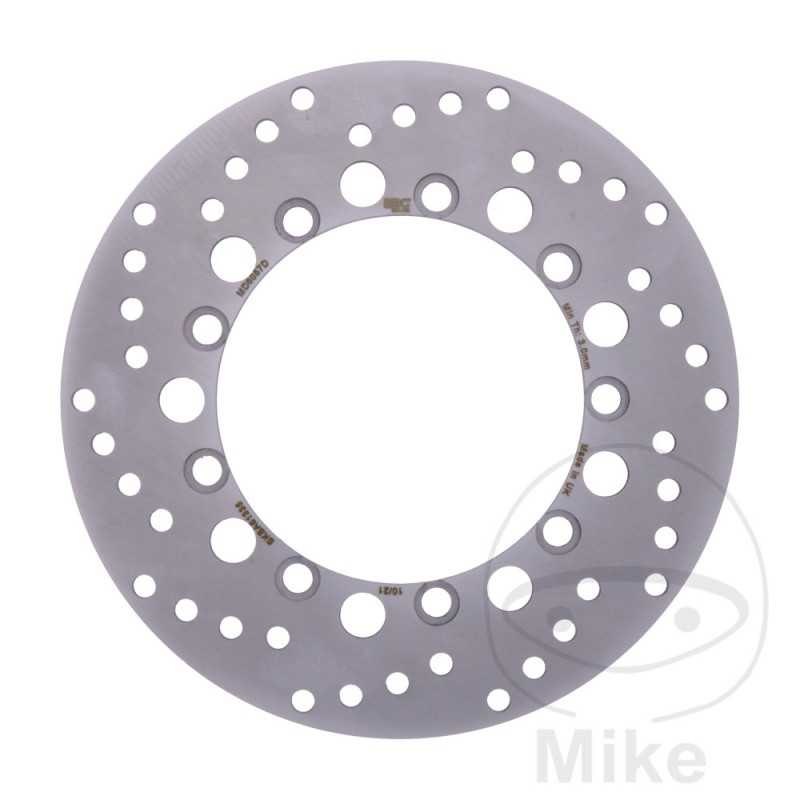

EBC motorcycle brake disc MX / ENDURO ATV 760.36.40

EBC MX brake disc for all-terrain motorcycles. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty drivers EBC sintered brake pads in an R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary with respect to the original part.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 146 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 2 BASTIDORES: KL250D henceforth00001-KL250D henceforth10200 1984-1985
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 3 BASTIDORES: KL250D henceforth10201-KL250D henceforth15000 1986
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 4 BASTIDORES: KL250D henceforth15001-KL250D henceforth19000 1987
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 5 BASTIDORES: KL250D henceforth19001-KL250D henceforth22300 1988
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 6 BASTIDORES: KL250D henceforth22301-KL250D henceforth26500 1989
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 7 BASTIDORES: KL250D henceforth26501-KL250D henceforth33000 1990
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 8 BASTIDORES: KL250D henceforth33001-KL250D henceforth40000 1991
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 9 BASTIDORES: KL250D henceforth40001-- 1992
