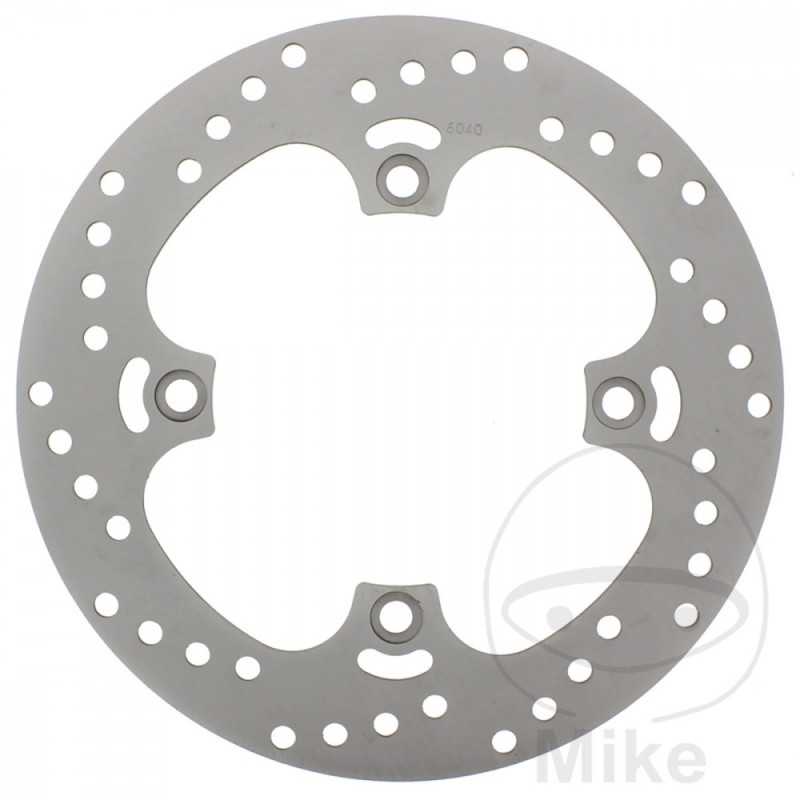

EBC motorcycle brake disc MX / ENDURO ATV 760.34.75

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 121.4MM
CIRCLE SIZE: 142 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 350 33 CV, 24 KW 1CIL. DK41A L BASTIDORES: DK41A-100001-DK41A-100155 1990
SUZUKI DR 350 33 CV, 24 KW 1CIL. DK41A M BASTIDORES: DK41A-100156-DK41A-100513 1991
SUZUKI DR 350 33 CV, 24 KW 1CIL. DK41A N BASTIDORES: DK41A-100514-DK41A-100792 1992
SUZUKI DR 350 33 CV, 24 KW 1CIL. DK41A P BASTIDORES: DK41A-100793-DK41A-101298 1993
SUZUKI DR 350 33 CV, 24 KW 1CIL. DK41A R BASTIDORES: DK41A-101299-DK41A-101732 1994
SUZUKI DR 350 33 CV, 24 KW 1CIL. DK41A S BASTIDORES: DK41A-101733-- 1995
SUZUKI DR 350 S 27 CV, 20 KW 1CIL. SK42B L BASTIDORES: SK42B-100007-SK42B-100727 1990
SUZUKI DR 350 S 27 CV, 20 KW 1CIL. SK42B M BASTIDORES: SK42B-100728-SK42B-101815 1991
SUZUKI DR 350 S 27 CV, 20 KW 1CIL. SK42B N BASTIDORES: SK42B-101816-SK42B-103516 1992
SUZUKI DR 350 S 27 CV, 20 KW 1CIL. SK42B P BASTIDORES: SK42B-103517-SK42B-105595 1993
SUZUKI DR 350 S 30 CV, 22 KW 1CIL. SK42B R BASTIDORES: SK42B-105596-- 1994
SUZUKI DR 350 SE 30 CV, 22 KW 1CIL. SK42B R BASTIDORES: SK42B-105997-SK42B-106837 1994
SUZUKI DR 350 SE 30 CV, 22 KW 1CIL. SK42B S BASTIDORES: SK42B-106838-SK42B-107340 1995
SUZUKI DR 350 SE 30 CV, 22 KW 1CIL. SK42B T BASTIDORES: SK42B-107341-SK42B-107863 1996
SUZUKI DR 350 SE 30 CV, 22 KW 1CIL. SK42B V BASTIDORES: SK42B-107864-SK42B-108101 1997
SUZUKI DR 350 SH 27 CV, 20 KW 1CIL. SK42B N BASTIDORES: SK42B-101816-SK42B-103516 1992
SUZUKI DR 350 SH 27 CV, 20 KW 1CIL. SK42B P BASTIDORES: SK42B-103517-SK42B-105595 1993
SUZUKI DR 350 SH 30 CV, 22 KW 1CIL. SK42B R BASTIDORES: SK42B-105596-- 1994
