EBC motorcycle brake disc MX / ENDURO ATV 760.34.67
€67.15
€80.55
Save 16.63%Tax included

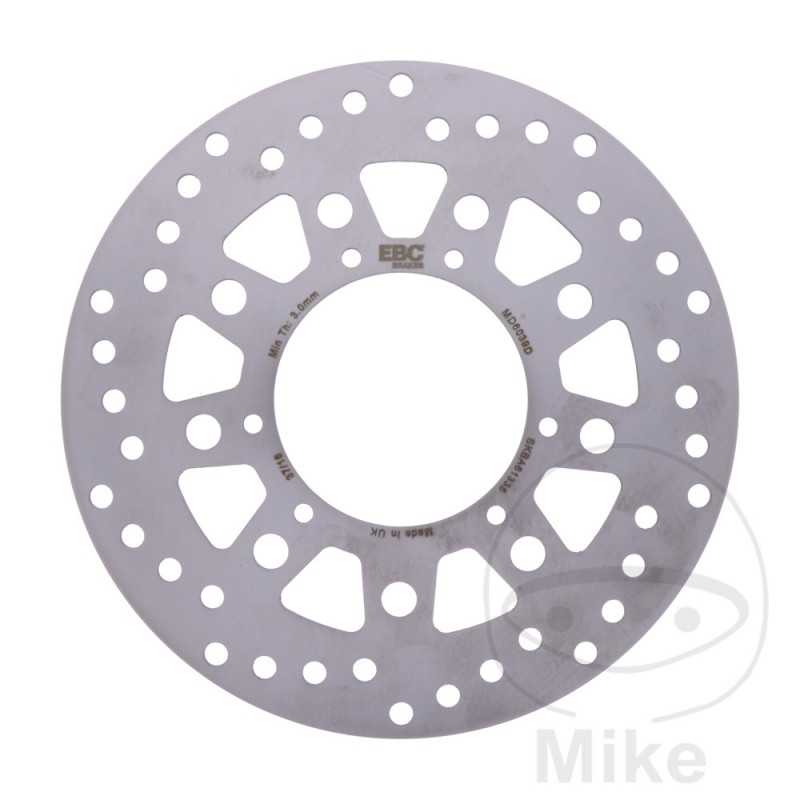

EBC MX brake disc for offroad motorcycles. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 86.2MM
CIRCLE SIZE: 102 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM3 Bastidores: 4BL henceforth00101-- 1991
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM4 Bastidores: 4BL henceforth10101-4BL henceforth13000 1992-1993
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM6 Bastidores: 4BL henceforth23101-4BL henceforth28999 1994-1995
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM8 Bastidores: 4BL henceforth38101-- 1996
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D01 Bastidores: DE061 henceforth00142-DE061 henceforth06706 2004
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D02 Bastidores: DE061 henceforth08114-- 2005
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D04 Bastidores: DE061 henceforth12162-DE061 henceforth16329 2006
Yamaha DT 125 RE MX Everts 15 CV, 11 kw 1cil. DE061 1D03 Bastidores: DE061 henceforth10212-- 2005-2006
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RM9 Bastidores: 4BL henceforth52099-- 1997
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RMB Bastidores: 4BL henceforth86042-- 1998
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMD Bastidores: DE031 henceforth00301-- 1999
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMJ Bastidores: DE031 henceforth03387-- 2000-2001
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMM Bastidores: DE031 henceforth07068-- 2002-2003
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMA Bastidores: 4BL henceforth57669-- 1997
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMC Bastidores: 4BL henceforth80321-- 1998
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RME Bastidores: DE032 henceforth00301-- 1999
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMG Bastidores: DE032 henceforth02301-- 2000-2001
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMK Bastidores: DE032 henceforth05008-- 2002-2003
Yamaha TT 350 1cil. 1TJ 1TJ Bastidores: 1TJ henceforth00101-1TJ henceforth02000 1986
Yamaha TT 350 1cil. 3GJ 3GJ2 Bastidores: 3GJ henceforth00101-- 1990-1995
Yamaha TT 600 1cil. 3SW 3SW2 Bastidores: 3SW henceforth00101-3SW henceforth02000 1990
Yamaha TT 600 1cil. 3SW 3SW3 Bastidores: 3SW henceforth02101-3SW henceforth03000 1991
Yamaha TT 600 1cil. 3SW 3SW4 Bastidores: 3SW henceforth03101-3SW henceforth04000 1992
Yamaha TT 600 1cil. 3SW 3SW5 Bastidores: 3SW henceforth04101-- 1993
Yamaha TT 600 1cil. 59X 2JT Bastidores: 59X henceforth10101-59X henceforth16000 1987-1988
Yamaha TT 600 1cil. 59X 3SW1 Bastidores: 59X henceforth16101-59X henceforth23000 1989
Yamaha TT 600 1cil. 59X 59X Bastidores: 59X henceforth00101-59X henceforth07000 1985-1986
Yamaha YZ 125 1cil. 2VN 2VN Bastidores: 2VN henceforth00101-2VN henceforth17000 1988
Yamaha YZ 125 1cil. 3JD 3JD1 Bastidores: 3JD henceforth00101-3JD henceforth22000 1989
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 2VM 2VM Bastidores: 2VM henceforth00101-- 1988
Yamaha YZ 490 1cil. 2WH 2WH Bastidores: 2WH henceforth00101-2WH henceforth03000 1988
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 86.2MM
CIRCLE SIZE: 102 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM3 Bastidores: 4BL henceforth00101-- 1991
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM4 Bastidores: 4BL henceforth10101-4BL henceforth13000 1992-1993
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM6 Bastidores: 4BL henceforth23101-4BL henceforth28999 1994-1995
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM8 Bastidores: 4BL henceforth38101-- 1996
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D01 Bastidores: DE061 henceforth00142-DE061 henceforth06706 2004
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D02 Bastidores: DE061 henceforth08114-- 2005
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D04 Bastidores: DE061 henceforth12162-DE061 henceforth16329 2006
Yamaha DT 125 RE MX Everts 15 CV, 11 kw 1cil. DE061 1D03 Bastidores: DE061 henceforth10212-- 2005-2006
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RM9 Bastidores: 4BL henceforth52099-- 1997
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RMB Bastidores: 4BL henceforth86042-- 1998
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMD Bastidores: DE031 henceforth00301-- 1999
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMJ Bastidores: DE031 henceforth03387-- 2000-2001
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMM Bastidores: DE031 henceforth07068-- 2002-2003
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMA Bastidores: 4BL henceforth57669-- 1997
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMC Bastidores: 4BL henceforth80321-- 1998
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RME Bastidores: DE032 henceforth00301-- 1999
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMG Bastidores: DE032 henceforth02301-- 2000-2001
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMK Bastidores: DE032 henceforth05008-- 2002-2003
Yamaha TT 350 1cil. 1TJ 1TJ Bastidores: 1TJ henceforth00101-1TJ henceforth02000 1986
Yamaha TT 350 1cil. 3GJ 3GJ2 Bastidores: 3GJ henceforth00101-- 1990-1995
Yamaha TT 600 1cil. 3SW 3SW2 Bastidores: 3SW henceforth00101-3SW henceforth02000 1990
Yamaha TT 600 1cil. 3SW 3SW3 Bastidores: 3SW henceforth02101-3SW henceforth03000 1991
Yamaha TT 600 1cil. 3SW 3SW4 Bastidores: 3SW henceforth03101-3SW henceforth04000 1992
Yamaha TT 600 1cil. 3SW 3SW5 Bastidores: 3SW henceforth04101-- 1993
Yamaha TT 600 1cil. 59X 2JT Bastidores: 59X henceforth10101-59X henceforth16000 1987-1988
Yamaha TT 600 1cil. 59X 3SW1 Bastidores: 59X henceforth16101-59X henceforth23000 1989
Yamaha TT 600 1cil. 59X 59X Bastidores: 59X henceforth00101-59X henceforth07000 1985-1986
Yamaha YZ 125 1cil. 2VN 2VN Bastidores: 2VN henceforth00101-2VN henceforth17000 1988
Yamaha YZ 125 1cil. 3JD 3JD1 Bastidores: 3JD henceforth00101-3JD henceforth22000 1989
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 2VM 2VM Bastidores: 2VM henceforth00101-- 1988
Yamaha YZ 490 1cil. 2WH 2WH Bastidores: 2WH henceforth00101-2WH henceforth03000 1988
760.34.67
10 Items
Data sheet
- EXTERNAL DIAMETER
- 230 MM
- CIRCLE MEASUREMENT
- 102MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 102MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 6
- THICKNESS
- 3.5 MM
