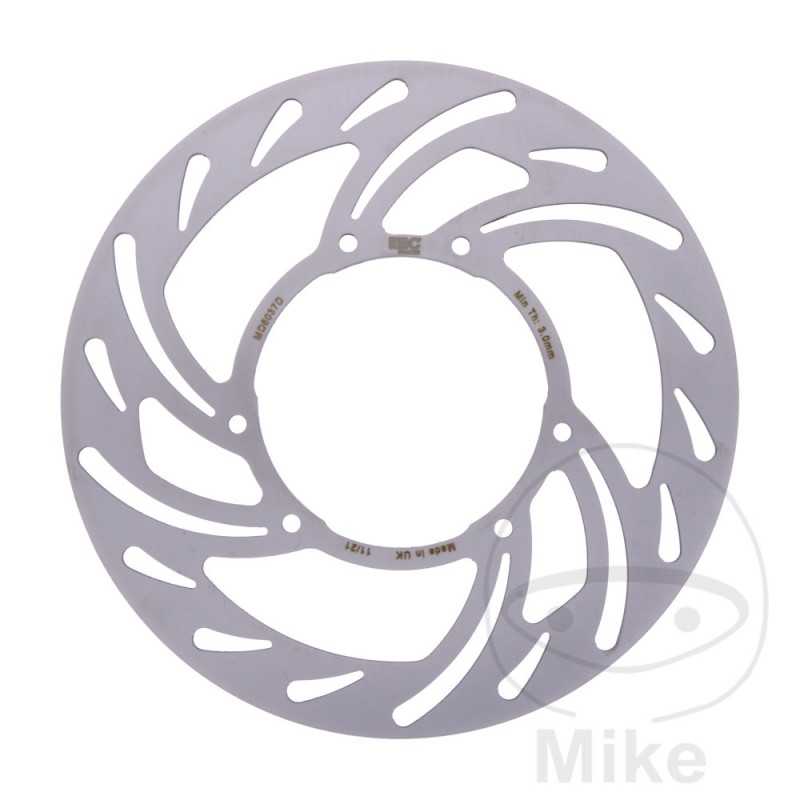

EBC motorcycle brake disc MX / ENDURO ATV 760.34.42

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Rigid brake disc, super light, completely new profile

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 101.2MM
CIRCLE SIZE: 117 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 5 Bastidores: ZENF250NEC0500001-ZENF250NEC0599999 2005
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 6 Bastidores: ZENF250NEC0600001-ZENF250NEC0699999 2006
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 7 Bastidores: ZENF250NEC0700001-- 2007
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. F250NEC 8 Bastidores: ZENF250NEC0800001-- 2008
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 8 Bastidores: ZENH250REC8800001-- 2008
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 9 Bastidores: ZENH250REC8900001-- 2009
HM-Moto CRE-F 250 R 42,1 CV, 31 kw 1cil. H250REC 9 Bastidores: ZENH250REC9900001-- 2009
HM-Moto CRE-F 250 X 1cil. F250XEC 4 Bastidores: ZENF250XEC0400001-ZENF250XEC0499999 2004
HM-Moto CRE-F 250 X 1cil. F250XEC 5 Bastidores: ZENF250XEC0500001-ZENF250XEC0599999 2005
HM-Moto CRE-F 250 X 1cil. F250XEC 6 Bastidores: ZENF250XEC0600001-ZENF250XEC0699999 2006
HM-Moto CRE-F 250 X 1cil. F250XEC 7 Bastidores: ZENF250XEC0700001-ZENF250XEC0799999 2007
HM-Moto CRE-F 250 X 1cil. F250XEC 8 Bastidores: ZENF250XEC0800001-- 2008
HM-Moto CRE-F 250 X 1cil. H250XEC 8 Bastidores: ZENH250XEC8800001-- 2008
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 8 Bastidores: ZENH250XEC8900001-ZENH250XEC8999999 2008
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9000001-- 2009
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC 9 Bastidores: ZENH250XEC9900001-- 2009
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC A Bastidores: ZENH250XEC9900001-- 2010
HM-Moto CRE-F 250 X 29,8/21,5 CV, 21,9/15,8 kw 1cil. H250XEC B Bastidores: ZENH250XEC1100001-- 2011-2013
HM-Moto CRE-F 250 X ie 1cil. F25XJEC 7 Bastidores: ZENF25XJEC0700001-ZENF25XJEC0799999 2007
HM-Moto CRE-F 250 X ie 1cil. F25XJEC 8 Bastidores: ZENF25XJEC8800001-- 2008
HM-Moto CRE-F 290 X ie 1cil. F29XJEC 7 Bastidores: ZENF29XJEC0700001-ZENF29XJEC0799999 2007
HM-Moto CRE-F 290 X ie 1cil. F29XJEC 8 Bastidores: ZENF29XJEC8800001-- 2008
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 8 Bastidores: ZENH290XEC8800001-ZENH290XEC8899999 2008
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC8900001-ZENH290XEC8999999 2009
HM-Moto CRE-F 300 X 32/18,2 CV, 23,6/13,4 kw 1cil. H290XEC 9 Bastidores: ZENH290XEC9900001-- 2009-2010
HM-Moto CRE-F 450 R 1cil. F450C0PE 5 Bastidores: ZENF450C0PE500001-ZENF450C0PE599999 2005
HM-Moto CRE-F 450 R 1cil. F450C0PE 6 Bastidores: ZENF450C0PE600001-ZENF450C0PE699999 2006
HM-Moto CRE-F 450 R 1cil. F450C0PE 7 Bastidores: ZENF450C0PE700001-- 2007
HM-Moto CRE-F 450 R 1cil. F450RMC 8 Bastidores: ZENF450RMC0800001-- 2008
HM-Moto CRE-F 450 R 1cil. F450RMC 8 Bastidores: ZENH450RMC8800001-- 2008
HM-Moto CRE-F 450 X 1cil. F450XEC 5 Bastidores: ZENF450XEC0500001-ZENF450XEC0599999 2005
HM-Moto CRE-F 450 X 1cil. F450XEC 6 Bastidores: ZENF450XEC0600001-ZENF450XEC0699999 2006
HM-Moto CRE-F 450 X 1cil. F450XEC 7 Bastidores: ZENF450XEC0700001-- 2007
HM-Moto CRE-F 450 X 1cil. F450XEC 8 Bastidores: ZENF450XEC0800001-- 2008
HM-Moto CRE-F 450 X 1cil. H450XEC 8 Bastidores: ZENH450XEC8800001-- 2008
HM-Moto CRE-F 450 X 1cil. H450XEC 9 Bastidores: ZENH450XEC8900001-- 2009
HM-Moto CRE-F 450 X 1cil. H450XEC 9 Bastidores: ZENH450XEC9900001-- 2009
HM-Moto CRE-F 450 X ie 1cil. F45XJEC 7 Bastidores: ZENF45XJEC0700001-ZENF45XJEC0799999 2007
HM-Moto CRE-F 450 X ie 1cil. F45XJEC 8 Bastidores: ZENF49XJEC8800001-- 2008
HM-Moto CRE-F 490 X ie 53 CV, 39 kw 1cil. F49XJEC 7 Bastidores: ZENF49XJEC0700001-ZENF49XJEC0799999 2007
HM-Moto CRE-F 490 X ie 53 CV, 39 kw 1cil. F49XJEC 8 Bastidores: ZENF49XJEC8800001-- 2008
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 8 Bastidores: ZENH490XEC8800001-ZENH490XEC8899999 2008
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 9 Bastidores: ZENH490XEC8900001-- 2009
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC 9 Bastidores: ZENH490XEC9900001-- 2009
HM-Moto CRE-F 500 X 49 CV, 36 kw 1cil. H490XEC A Bastidores: ZENH490XEC9000001-- 2010
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 1 Bastidores: JH2 JE01A-1M500001-- 2001
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 2 Bastidores: JH2 JE01A-2M600001-JH2 JE01A-2M699999 2002
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 3 Bastidores: JH2 JE01A-3M700001-JH2 JE01A-3M799999 2003
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 4 Bastidores: JH2 JE01A-4M800001-JH2 JE01A-4M899999 2004
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A V Bastidores: JE01A-VM100001-- 1997
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A W Bastidores: JE01A-WM200001-- 1998
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A X Bastidores: JE01A-XM300001-- 1999
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A Y Bastidores: JH2 JE01A-YM400001-- 2000
Honda CR 125 R 42 CV, 31 kw 1cil. JE01A 5 Bastidores: JH2 JE01A-5M900001-JH2 JE01A-5M999999 2005
Honda CR 125 R 42 CV, 31 kw 1cil. JE01A 6 Bastidores: JH2 JE01A-6M000001-JH2 JE01A-6M099999 2006
Honda CR 125 R 42,6 CV, 31,3 kw 1cil. JE01A 7 Bastidores: JH2 JE01A-7M100001-- 2007
Honda CR 250 R 56 CV, 41 kw 1cil. ME03 S Bastidores: ME03-5700001-ME03-5702584 1995
Honda CR 250 R 56 CV, 41 kw 1cil. ME03A T Bastidores: JH2 ME03A-TM000001-- 1996
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A 1 Bastidores: JH2 ME03A-1M500001-- 2001
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A 2 Bastidores: JH2 ME03A-2M600001-JH2 ME03A-2M699999 2002
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A V Bastidores: JH2 ME03A-VM100001-JH2 ME03A-VM103705 1997
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A W Bastidores: JH2 ME03A-WM200001-- 1998
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A X Bastidores: JH2 ME03A-XM300001-- 1999
Honda CR 250 R 58 CV, 43 kw 1cil. ME03A Y Bastidores: JH2 ME03A-YM400001-- 2000
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 3 Bastidores: JH2 ME03A-3M700001-JH2 ME03A-3M799999 2003
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 4 Bastidores: JH2 ME03A-4M800001-JH2 ME03A-4M899999 2004
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 5 Bastidores: JH2 ME03A-5M900001-JH2 ME03A-5M999999 2005
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 6 Bastidores: JH2 ME03A-6M000001-JH2 ME03A-6M099999 2006
Honda CR 250 R 59 CV, 43 kw 1cil. ME03A 7 Bastidores: JH2 ME03A-7M100001-- 2007
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 S Bastidores: PE02-5400001-PE02-5400422 1995
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A 1 Bastidores: JH2 PE02A-1M500001-- 2001
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A T Bastidores: JH2 PE02A-TM000001-- 1996
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A V Bastidores: JH2 PE02A-VM100001-- 1997
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A W Bastidores: JH2 PE02A-WM200001-JH2 PE02A-WM200434 1998
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A X Bastidores: JH2 PE02A-XM300001-JH2 PE02A-XM300460 1999
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A Y Bastidores: JH2 PE02A-YM400001-- 2000
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A D Bastidores: JH2 ME10A-DK900001-- 2013
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A E Bastidores: JH2 ME10A-EK100001-JH2 ME10A-EK199999 2014
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4K010001-JH2 ME10A-4K099999 2004
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 4 Bastidores: JH2 ME10A-4M000001-JH2 ME10A-4M009999 2004
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5K110001-JH2 ME10A-5K149999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M100001-JH2 ME10A-5M109999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 5 Bastidores: JH2 ME10A-5M150001-JH2 ME10A-5M199999 2005
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6K210001-JH2 ME10A-6K219999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M200001-JH2 ME10A-6M209999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 6 Bastidores: JH2 ME10A-6M230001-JH2 ME10A-6M239999 2006
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7K310001-JH2 ME10A-7K319999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M300001-JH2 ME10A-7M309999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 7 Bastidores: JH2 ME10A-7M330001-JH2 ME10A-7M339999 2007
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8K410001-JH2 ME10A-8K419999 2008
Honda CRF 250 R 42,1 CV, 31 kw 1cil. ME10A 8 Bastidores: JH2 ME10A-8M400001-JH2 ME10A-8M409999 2008
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A 9 Bastidores: JH2 ME10A-9K500001-- 2009
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A B Bastidores: JH2 ME10A-BK700001-JH2 ME10A-BK799999 2011
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A C Bastidores: JH2 ME10A-CK800001-JH2 ME10A-CK899999 2012
Honda CRF 250 R 44 CV, 32,4 kw 1cil. ME10A A Bastidores: JH2 ME10A-AK600001-JH2 ME10A-AK699999 2010
Honda CRF 250 X 1cil. ME11A 9 Bastidores: JH2 ME11A-9K500001-JH2 ME11A-9K509999 2009-2010
Honda CRF 250 X 1cil. ME11A B Bastidores: JH2 ME11A-BK600001-JH2 ME11A-BK699999 2011
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 4 Bastidores: JH2 ME11A-4K000001-JH2 ME11A-4K099999 2004
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 5 Bastidores: JH2 ME11A-5K110001-JH2 ME11A-5K199999 2005
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6K210001-JH2 ME11A-6K219999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6M200001-JH2 ME11A-6M209999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 6 Bastidores: JH2 ME11A-6M220001-JH2 ME11A-6M229999 2006
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7K310001-JH2 ME11A-7K319999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7M300001-JH2 ME11A-7M309999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 7 Bastidores: JH2 ME11A-7M320001-JH2 ME11A-7M329999 2007
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 8 Bastidores: JH2 ME11A-8K410001-JH2 ME11A-8K419999 2008
Honda CRF 250 X 28 CV, 21 kw 1cil. ME11A 8 Bastidores: JH2 ME11A-8M400001-JH2 ME11A-8M409999 2008
Honda CRF 250 X 29,8 CV, 21,9 kw 1cil. ME11A C Bastidores: JH2 ME11A-CK700001-- 2012
Honda CRF 250 X 29,8 CV, 21,9 kw 1cil. ME11A D Bastidores: JH2 ME11A-DK800001-- 2013-2019
Honda CRF 250 XRL 29,4 CV, 21,6 kw 1cil. - Bastidores: --- 2016-2019
Honda CRF 450 R 52,1 CV, 38,3 kw 1cil. PE05A D Bastidores: JH2 PE05A-DK200001-JH2 PE05A-DK299999 2013
Honda CRF 450 R 52,1 CV, 38,3 kw 1cil. PE05A E Bastidores: JH2 PE05A-EK300001-JH2 PE05A-EK399999 2014
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 7 Bastidores: JH2 PE05A-7M500001-JH2 PE05A-7M509999 2007
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 8 Bastidores: JH2 PE05A-8M600001-- 2008
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 2 Bastidores: JH2 PE05A-2M000001-JH2 PE05A-2M099999 2002
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 3 Bastidores: JH2 PE05A-3M100001-JH2 PE05A-3M199999 2003
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 4 Bastidores: JH2 PE05A-4M200001-JH2 PE05A-4M209999 2004
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 5 Bastidores: JH2 PE05A-5M300001-JH2 PE05A-5M309999 2005
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 6 Bastidores: JH2 PE05A-6M400001-JH2 PE05A-6M409999 2006
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A 9 Bastidores: JH2 PE05A-9K700001-JH2 PE05A-9K799999 2009
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A A Bastidores: JH2 PE05A-AK800001-JH2 PE05A-AK899999 2010
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A B Bastidores: JH2 PE05A-BK900001-JH2 PE05A-BK999999 2011
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A C Bastidores: JH2 PE05A-CK100001-- 2012
Honda CRF 450 X 1cil. PE06A 9 Bastidores: JH2 PE06A-9K400001-JH2 PE06A-9K499999 2009-2010
Honda CRF 450 X 1cil. PE06A B Bastidores: JH2 PE06A-BK500001-JH2 PE06A-BK599999 2011
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A C Bastidores: JH2 PE06A-CK600001-JH2 PE06A-CK699999 2012
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A D Bastidores: JH2 PE06A-DK700001-- 2013
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A E Bastidores: JH2 PE06A-EK800001-- 2014-2018
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 5 Bastidores: JH2 PE06A-5K000001-JH2 PE06A-5K099999 2005
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 6 Bastidores: JH2 PE06A-6K100001-JH2 PE06A-6K199999 2006
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 7 Bastidores: JH2 PE06A-7K200001-JH2 PE06A-7K299999 2007
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 8 Bastidores: JH2 PE06A-8K300001-JH2 PE06A-8K399999 2008
Honda CRF 450 XRL 29,8 CV, 21,9 kw 1cil. - Bastidores: --- 2016
