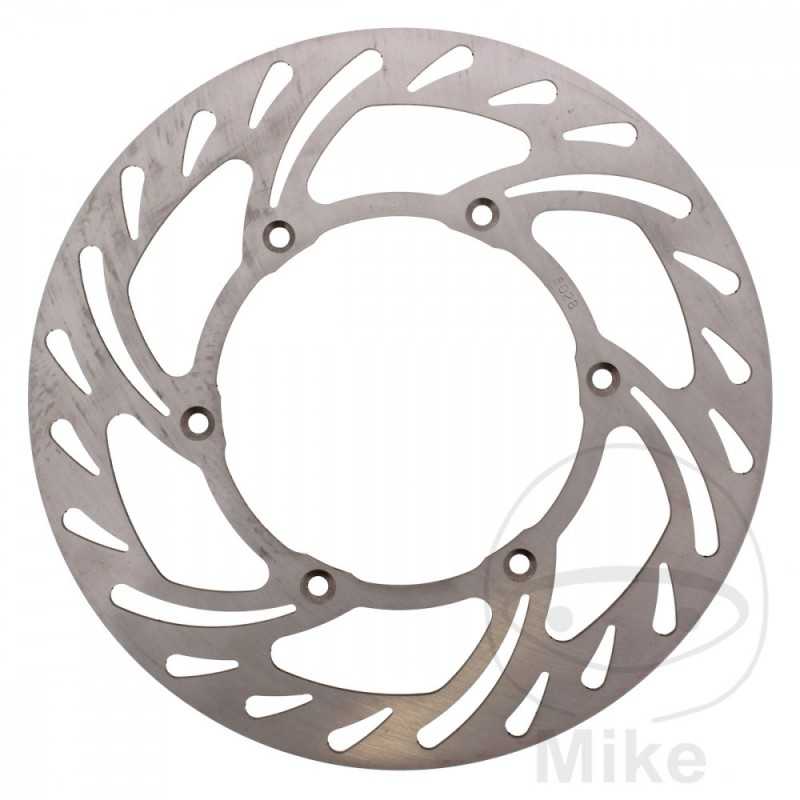

EBC motorcycle brake disc MX / ENDURO ATV 760.33.50

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Rigid brake disc, super light, completely new profile

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 134 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha WR 400 F 37 CV, 27 kw 1cil. CH02W 5BF2 Bastidores: CH02W henceforth00140-- 1998
Yamaha WR 400 F 37 CV, 27 kw 1cil. CH04W 5GS2 Bastidores: CH04W henceforth00101-- 1999
Yamaha WR 400 F 37 CV, 27 kw 1cil. CH04W 5GS6 Bastidores: CH04W henceforth08859-- 2000
Yamaha YZ 125 1cil. 4DB 4DB1 Bastidores: 4DB henceforth00101-4DB henceforth07000 1992
Yamaha YZ 125 36 CV, 27 kw 1cil. 4EX 4EX1 Bastidores: 4EX henceforth00101-- 1993
Yamaha YZ 125 39 CV, 29 kw 1cil. 4JY 4JY1 Bastidores: 4JY henceforth00101-4JY henceforth08999 1994
Yamaha YZ 125 39 CV, 29 kw 1cil. 4PE 4PE1 Bastidores: 4PE henceforth00101-- 1995
Yamaha YZ 125 39 CV, 29 kw 1cil. 4SS 4SS1 Bastidores: 4SS henceforth00101-- 1996
Yamaha YZ 125 39 CV, 29 kw 1cil. 4XM 4XM1 Bastidores: 4XM henceforth01464-- 1997
Yamaha YZ 125 39 CV, 29 kw 1cil. 4XM 5DH2 Bastidores: 4XM henceforth11530-- 1998
Yamaha YZ 125 39 CV, 29 kw 1cil. CE03C 5ET2 Bastidores: CE03C henceforth00239-- 1999
Yamaha YZ 125 39 CV, 29 kw 1cil. CE05C 5HD2 Bastidores: CE05C henceforth00239-- 2000
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 4DA 4DA1 Bastidores: 4DA henceforth00101-4DA henceforth06000 1992
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 4EW 4EW1 Bastidores: 4EW henceforth00101-- 1993
Yamaha YZ 250 2T 52 CV, 38 kw 1cil. 4JX 4JX1 Bastidores: 4JX henceforth00101-4JX henceforth08999 1994
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4MX 4MX1 Bastidores: 4MX henceforth00101-4MX henceforth06099 1995
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4SR 4SR1 Bastidores: 4SR henceforth00101-- 1996
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4XL 4XL1 Bastidores: 4XL henceforth01138-- 1997
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4XL 5DJ2 Bastidores: 4XL henceforth10483-- 1998
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG05C 5CU2 Bastidores: CG05C henceforth00242-- 1999
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. CG08C 5HC2 Bastidores: CG08C henceforth00207-- 2000
Yamaha YZ 400 F 55 CV, 40 kw 1cil. CH01C 5BE2 Bastidores: CH01C henceforth00356-- 1998
Yamaha YZ 400 F 55 CV, 40 kw 1cil. CH03C 5GR2 Bastidores: CH03C henceforth00322-- 1999
Yamaha YZ 426 F 58 CV, 43 kw 1cil. CJ01C 5JG2 Bastidores: CJ01C henceforth00101-- 2000
