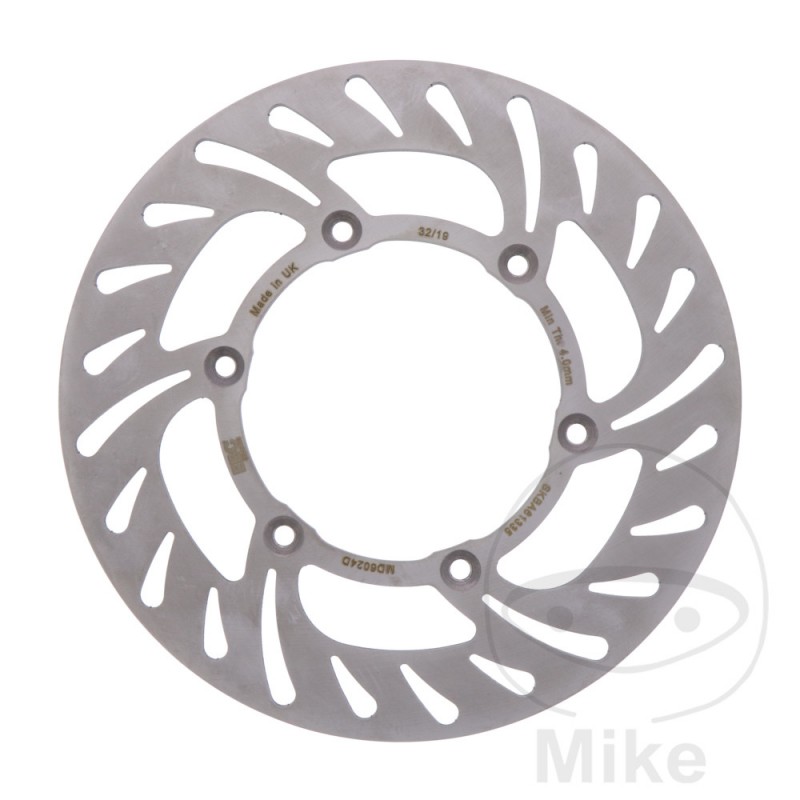

EBC motorcycle brake disc MX / ENDURO ATV 760.33.19

EBC MX brake disc for off-road motorcycles. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is crushed in the area of the contact patch of the brake pads when braking. It is only in this area that a light oxide film with a longer service life can form.

The brake discs are drilled in the bird's-eye design to fit through with as few holes as possible while optimizing the cleaning of the disc from rainwater and brake dust. The fewer holes drilled, the better the wet braking behavior and less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled braking surface with optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 116 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 125 G 1cil. KX125G 1 Bastidores: KX125G henceforth00001-KX125G-999999 1989
Kawasaki KX 125 H 1cil. KX125H 1 Bastidores: KX125H henceforth00001-KX125H henceforth07000 1990
Kawasaki KX 125 H 1cil. KX125H 2 Bastidores: KX125H henceforth07001-KX125H-999999 1991
Kawasaki KX 125 J 1cil. KX125J 1 Bastidores: KX125J henceforth00001-KX125J henceforth07500 1992
Kawasaki KX 125 J 39,5 CV, 29 kw 1cil. KX125J 2 Bastidores: KX125J henceforth07501-KX125J-999999 1993
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 1 Bastidores: KX125K henceforth00001-KX125K-999999 1994
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 2 Bastidores: KX125K henceforth06001-KX125K-999999 1995
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 3 Bastidores: KX125K henceforth13001-KX125K-999999 1996
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 4 Bastidores: KX125K henceforth20001-KX125K-999999 1997
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KXRKCWA 5 Bastidores: KXRKCWA henceforth26001-KXRKCWA-999999 1998
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 1 Bastidores: KX125LLA henceforth00001-KX125LLA-999999 1999
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 2 Bastidores: KX125LLA henceforth09001-KX125LLA henceforth20000 2000
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 3 Bastidores: KX125LLA henceforth20001-KX125LLA henceforth30000 2001
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 4 Bastidores: KX125LLA henceforth30001-KX125LLA-999999 2002
Kawasaki KX 250 G 2T 1cil. KX250G 1 Bastidores: KX250G henceforth00001-KX250G-999999 1989
Kawasaki KX 250 H 2T 1cil. KX250H 1 Bastidores: KX250H henceforth00001-KX250H henceforth06000 1990
Kawasaki KX 250 H 2T 1cil. KX250H 2 Bastidores: KX250H henceforth06001-KX250H-999999 1991
Kawasaki KX 250 J 2T 1cil. KX250J 1 Bastidores: KX250J henceforth00001-KX250J henceforth07500 1992
Kawasaki KX 250 J 2T 53,6 CV, 39,4 kw 1cil. KX250J 2 Bastidores: KX250J henceforth07501-KX250J-999999 1993
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 1 Bastidores: KX250K henceforth00001-KX250K henceforth06000 1994
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 2 Bastidores: KX250K henceforth06001-KX250K-999999 1995
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 3 Bastidores: KX250K henceforth14001-KX250K-999999 1996
Kawasaki KX 250 K 2T 53,6 CV, 39,4 kw 1cil. KX250K 4 Bastidores: KX250K henceforth20001-KX250K-999999 1997
Kawasaki KX 250 K 2T 54,6 CV, 40,1 kw 1cil. KX250K 5 Bastidores: KX250K henceforth27001-KX250K-999999 1998
Kawasaki KX 250 L 2T 54,6 CV, 40,1 kw 1cil. KX250LLA 1 Bastidores: KX250LLA henceforth00001-KX250LLA henceforth11000 1999
Kawasaki KX 250 L 2T 54,6 CV, 40,1 kw 1cil. KX250LLA 2 Bastidores: KX250LLA henceforth11001-KX250LLA henceforth25000 2000
Kawasaki KX 250 L 2T 55,5 CV, 40,8 kw 1cil. KX250LLA 3 Bastidores: KX250LLA henceforth25001-KX250LLA henceforth36000 2001
Kawasaki KX 250 L 2T 55,5 CV, 40,8 kw 1cil. KX250LLA 4 Bastidores: KX250LLA henceforth36001-KX250LLA-999999 2002
Kawasaki KX 500 E 1cil. KX500E 1 Bastidores: KX500E henceforth00001-KX500E henceforth02000 1989
Kawasaki KX 500 E 1cil. KX500E 2 Bastidores: KX500E henceforth02001-KX500E henceforth04000 1990
Kawasaki KX 500 E 1cil. KX500E 3 Bastidores: KX500E henceforth04001-KX500E henceforth07000 1991
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 10 Bastidores: KX500E henceforth20001-KX500E henceforth23000 1998
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 11 Bastidores: KX500E henceforth23001-KX500E henceforth28000 1999
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 12 Bastidores: KX500E henceforth28001-KX500E henceforth30000 2000
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 13 Bastidores: KX500E henceforth30001-KX500E henceforth32000 2001
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 14 Bastidores: KX500E henceforth32001-KX500E-999999 2002
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 4 Bastidores: KX500E henceforth07001-KX500E henceforth08300 1992
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 5 Bastidores: KX500E henceforth08301-KX500E henceforth10000 1993
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 6 Bastidores: KX500E henceforth10001-KX500E henceforth11000 1994
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 7 Bastidores: KX500E henceforth11001-KX500E henceforth15000 1995
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 8 Bastidores: KX500E henceforth15001-KX500E henceforth17000 1996
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500E 9 Bastidores: KX500E henceforth17001-KX500E henceforth20000 1997
Kawasaki KX 500 E 64,5 CV, 47,4 kw 1cil. KX500EEA 15 Bastidores: KX500EEA henceforth35001-KX500EEA-999999 2003
