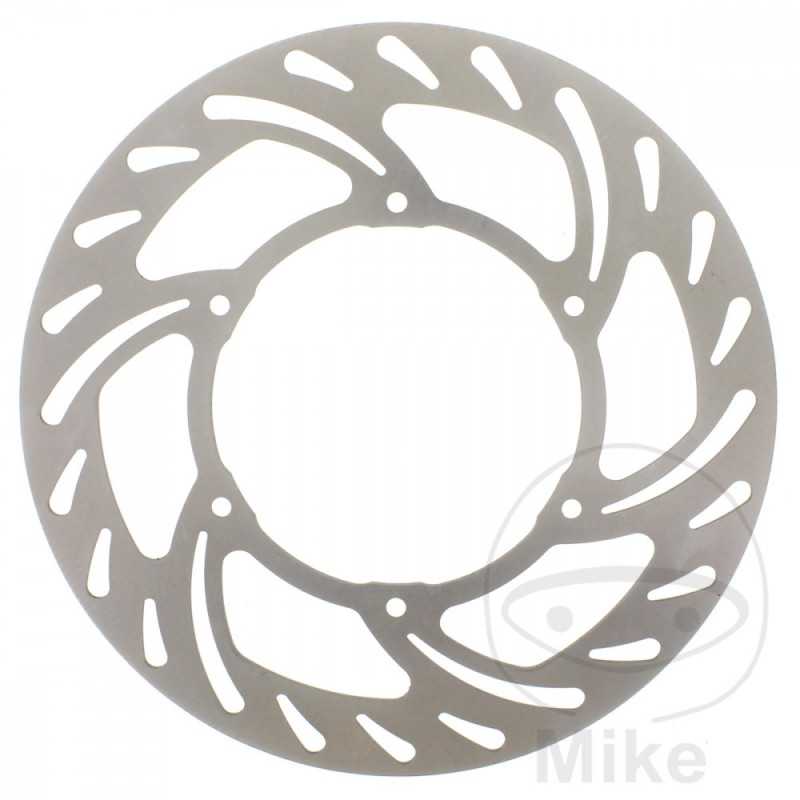

EBC motorcycle brake disc MX / ENDURO ATV 760.32.44

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Rigid brake disc, super light, completely new profile

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 134 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 125 SM 11 CV, 8,1 KW 1CIL. CS1111 K9 BASTIDORES: CS1111 henceforth0100001-CS1111 henceforth0100797 2008-2009
SUZUKI DR 125 SM 11 CV, 8,1 KW 1CIL. CS1111 L0 BASTIDORES: CS1111 henceforth0100798-- 2010-2013
SUZUKI DR-Z 400 49 CV, 36 KW 1CIL. BE1111 K2 BASTIDORES: BE1111 henceforth0101663-BE1111 henceforth0101675 2002
SUZUKI DR-Z 400 49 CV, 36 KW 1CIL. BE1111 K3 BASTIDORES: BE1111 henceforth0101676-- 2003-2004
SUZUKI DR-Z 400 49/14 CV, 36/10 KW 1CIL. BE1111 K1 BASTIDORES: BE1111 henceforth0101391-BE1111 henceforth0101662 2001
SUZUKI DR-Z 400 49/14 CV, 36/10 KW 1CIL. BE1111 Y BASTIDORES: BE1111 henceforth0100001-BE1111 henceforth0101390 2000
SUZUKI DR-Z 400 E 33 CV, 24 KW 1CIL. BF1111 K1 BASTIDORES: BF1111 henceforth0101327-BF1111 henceforth0102359 2001
SUZUKI DR-Z 400 E 33 CV, 24 KW 1CIL. BF1111 Y BASTIDORES: BF1111 henceforth0100001-BF1111 henceforth0101326 2000
SUZUKI DR-Z 400 E 49 CV, 36 KW 1CIL. BF1111 K2 BASTIDORES: BF1111 henceforth0102360-BF1111 henceforth0103442 2002
SUZUKI DR-Z 400 E 49 CV, 36 KW 1CIL. BF1111 K3 BASTIDORES: BF1111 henceforth0103443-- 2003-2004
SUZUKI DR-Z 400 E 49 CV, 36 KW 1CIL. BF1111 K5 BASTIDORES: BF1111 henceforth0105561-BF1111 henceforth0106777 2005
SUZUKI DR-Z 400 E 49/33 CV, 36/24 KW 1CIL. BF1111 K6 BASTIDORES: BF1111 henceforth0106778-BF1111 henceforth0107170 2006
SUZUKI DR-Z 400 E 49/33 CV, 36/24 KW 1CIL. BF1111 K7 BASTIDORES: BF1111 henceforth0107171-- 2007
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K1 BASTIDORES: BC1112 henceforth0103867-BC1112 henceforth0105028 2001
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K2 BASTIDORES: BC1112 henceforth0105029-BC1112 henceforth0105820 2002
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K3 BASTIDORES: BC1112 henceforth0105821-BC1112 henceforth0107185 2003
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K4 BASTIDORES: BC1112 henceforth0107186-BC1112 henceforth0108192 2004
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K5 BASTIDORES: BC1112 henceforth0108193-BC1112 henceforth0109110 2005
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K6 BASTIDORES: BC1112 henceforth0109111-BC1112 henceforth0110006 2006
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K7 BASTIDORES: BC1112 henceforth0110007-BC1112 henceforth0110639 2007
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 K8 BASTIDORES: BC1112 henceforth0110640-- 2008
SUZUKI DR-Z 400 S 39 CV, 29 KW 1CIL. WVBC1112 Y BASTIDORES: BC1112 henceforth0100001-BC1112 henceforth0103866 2000
SUZUKI RM 125 36 CV, 26 KW 1CIL. RF14A K BASTIDORES: RF14A-100001-RF14A-102530 1989
SUZUKI RM 125 36 CV, 26 KW 1CIL. RF14A L BASTIDORES: RF14A-102531-RF14A-104706 1990
SUZUKI RM 125 38,5 CV, 28,3 KW 1CIL. RF14A M BASTIDORES: RF14A-104707-RF14A-107537 1991
SUZUKI RM 125 38,5 CV, 28,3 KW 1CIL. RF14A N BASTIDORES: RF14A-107538-RF14A-110768 1992
SUZUKI RM 125 38,5 CV, 28,3 KW 1CIL. RF14A P BASTIDORES: RF14A-110769-RF14A-113492 1993
SUZUKI RM 125 38,5 CV, 28,3 KW 1CIL. RF14A R BASTIDORES: RF14A-113493-RF14A-115871 1994
SUZUKI RM 125 38,5 CV, 28,3 KW 1CIL. RF14A S BASTIDORES: RF14A-115872-- 1995
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF15A T BASTIDORES: RF15A-100001-RF15A-101275 1996
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF15A V BASTIDORES: RF15A-101276-RF15A-102552 1997
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF15A W BASTIDORES: RF15A-102553-RF15A-104211 1998
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF15A X BASTIDORES: RF15A-104212-RF15A-106058 1999
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF15A Y BASTIDORES: RF15A-106059-- 2000
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF16C K1 BASTIDORES: RF16C-12100001-- 2001
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF16C K2 BASTIDORES: RF16C-22100001-- 2002
SUZUKI RM 125 40 CV, 29 KW 1CIL. RF16C K3 BASTIDORES: RF16C-32100001-- 2003
SUZUKI RM 125 41 CV, 30,2 KW 1CIL. RF16A K7 BASTIDORES: RF16A henceforth00502703-RF16A henceforth00503552 2007
SUZUKI RM 125 41 CV, 30,2 KW 1CIL. RF16A K8 BASTIDORES: RF16A henceforth00503553-- 2008-2012
SUZUKI RM 125 41 CV, 30,2 KW 1CIL. RF16C K4 BASTIDORES: RF16C-42100001-- 2004
SUZUKI RM 125 41 CV, 30,2 KW 1CIL. RF16C K5 BASTIDORES: RF16C-52100001-- 2005
SUZUKI RM 125 41 CV, 30,2 KW 1CIL. RF16C K6 BASTIDORES: RF16C-62100001-- 2006
SUZUKI RM 250 51 CV, 38 KW 1CIL. RJ15A K BASTIDORES: RJ15A-100001-RJ15A-101028 1989
SUZUKI RM 250 51 CV, 38 KW 1CIL. RJ15A L BASTIDORES: RJ15A-101029-RJ15A-104374 1990
SUZUKI RM 250 53 CV, 39 KW 1CIL. RJ15A M BASTIDORES: RJ15A-104375-- 1991
SUZUKI RM 250 53 CV, 39 KW 1CIL. RJ15A N BASTIDORES: RJ15A-106425-- 1992
SUZUKI RM 250 53 CV, 39 KW 1CIL. RJ16A P BASTIDORES: RJ16A-100001-RJ16A-102340 1993
SUZUKI RM 250 53 CV, 39 KW 1CIL. RJ16A R BASTIDORES: RJ16A-102341-RJ16A-104167 1994
SUZUKI RM 250 53 CV, 39 KW 1CIL. RJ16A S BASTIDORES: RJ16A-104168-- 1995
SUZUKI RM 250 53 CV, 39 KW 1CIL. RJ17A T BASTIDORES: RJ17A-100001-RJ17A-100948 1996
SUZUKI RM 250 53 CV, 39 KW 1CIL. RJ17A V BASTIDORES: RJ17A-100949-RJ17A-101854 1997
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ17A W BASTIDORES: RJ17A-101855-RJ17A-102948 1998
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ17A X BASTIDORES: RJ17A-102949-RJ17A-104153 1999
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ17A Y BASTIDORES: RJ17A-104154-- 2000
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K1 BASTIDORES: RJ18C-12100001-- 2001
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K2 BASTIDORES: RJ18C-22100001-- 2002
SUZUKI RM 250 54 CV, 40 KW 1CIL. RJ18C K3 BASTIDORES: RJ18C-32100001-- 2003
SUZUKI RM 250 55 CV, 40,5 KW 1CIL. RJ18A K7 BASTIDORES: RJ18A henceforth00502068-RJ18A henceforth00502708 2007
SUZUKI RM 250 55 CV, 40,5 KW 1CIL. RJ18A K8 BASTIDORES: RJ18A henceforth00502709-- 2008-2012
SUZUKI RM 250 55 CV, 40,5 KW 1CIL. RJ18C K4 BASTIDORES: RJ18C-42100001-- 2004
SUZUKI RM 250 55 CV, 40,5 KW 1CIL. RJ18C K5 BASTIDORES: RJ18C-52100001-- 2005
SUZUKI RM 250 55 CV, 40,5 KW 1CIL. RJ18C K6 BASTIDORES: RJ18C-62100001-- 2006
SUZUKI RMX 250 40 CV, 29,5 KW 1CIL. PJ11A M BASTIDORES: PJ11A-M2100001-- 1991
SUZUKI RMX 250 40 CV, 29,5 KW 1CIL. PJ11A N BASTIDORES: PJ11A-N2100001-- 1992
SUZUKI RMX 250 52 CV, 38 KW 1CIL. PJ11A P BASTIDORES: PJ11A-P2100001-- 1993
SUZUKI RMX 250 52 CV, 38 KW 1CIL. PJ11A R BASTIDORES: PJ11A-R2100001-- 1994
SUZUKI RMX 250 52 CV, 38 KW 1CIL. PJ11A S BASTIDORES: PJ11A-S2100001-- 1995
SUZUKI RMX 250 52 CV, 38 KW 1CIL. PJ11A T BASTIDORES: PJ11A-T2100001-- 1996
SUZUKI RMX 250 52 CV, 38 KW 1CIL. PJ11A V BASTIDORES: PJ11A-V2100001-- 1997
SUZUKI RMX 250 52 CV, 38 KW 1CIL. PJ11A W BASTIDORES: PJ11A-W2100001-- 1998
