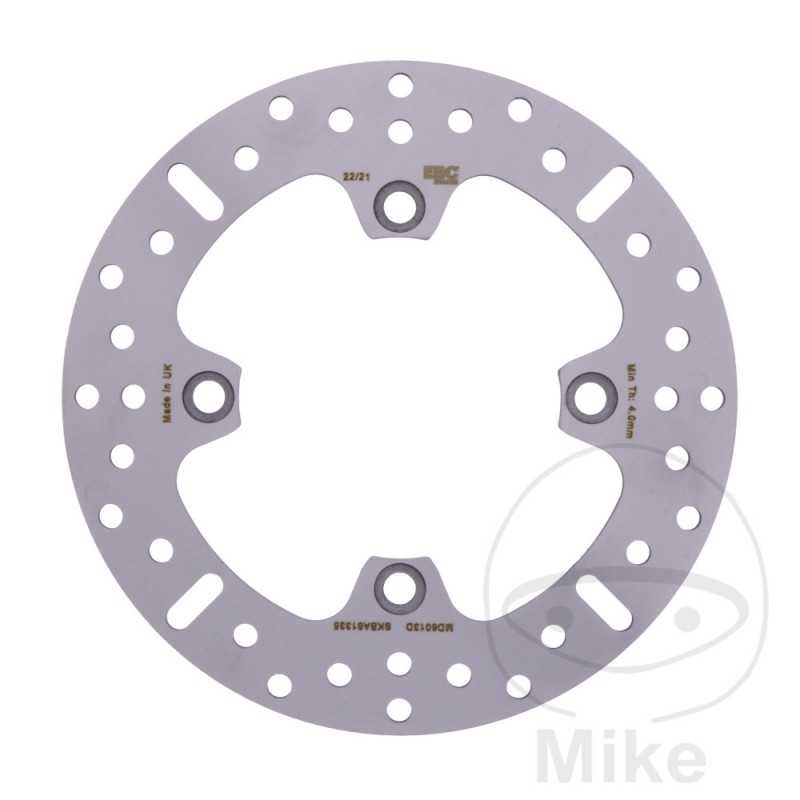

EBC motorcycle brake disc MX / ENDURO ATV 760.32.02

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 2L Bastidores: RD02-6300002-- 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 L Bastidores: RD02-6200001-RD02-6200550 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 M Bastidores: RD02-6400001-- 1991
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 M Bastidores: RD02-5400001-- 1991
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 2L Bastidores: RD02-5300009-- 1990
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 L Bastidores: RD02-5200136-RD02-5205987 1990
Honda NX 650 Dominator piñón engranaje fino 45 CV, 33 kw 1cil. RD02 K Bastidores: RD02-5100088-RD02-5105732 1989
Honda NX 650 Dominator piñón engranaje grueso 27 CV, 20 kw 1cil. RD02 J Bastidores: RD02-6000002-RD02-6000803 1988
Honda NX 650 Dominator piñón engranaje grueso 45 CV, 33 kw 1cil. RD02 J Bastidores: RD02-5000988-RD02-5012318 1988
Honda XR 250 R 1cil. ME06 L Bastidores: ME06-5600001-ME06-5602424 1990
Honda XR 250 R 1cil. ME06 M Bastidores: ME06-5700002-ME06-5703117 1991
Honda XR 250 R 1cil. ME06 N Bastidores: ME06-5800055-ME06-5802221 1992
Honda XR 250 R 1cil. ME06 P Bastidores: ME06-5900213-ME06-5902147 1993
Honda XR 250 R 1cil. ME06 R Bastidores: ME06-5000774-- 1994
Honda XR 250 R 1cil. ME06 S Bastidores: ME06-5050012-- 1995
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 1 Bastidores: JH2 ME08A-1K420001-- 2001
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 2 Bastidores: JH2 ME08A-2K430001-- 2002
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 3 Bastidores: JH2 ME08A-3M440001-- 2003
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A 4 Bastidores: JH2 ME08A-4K460001-- 2004
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A T Bastidores: JH2 ME08A-TM000001-JH2 ME08A-TM000316 1996
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A V Bastidores: JH2 ME08A-VM100001-JH2 ME08A-VM100469 1997
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A W Bastidores: JH2 ME08A-WK300001-- 1998
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A W Bastidores: JH2 ME08A-WM100001-JH2 ME08A-WM100196 1998
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A X Bastidores: JH2 ME08A-XK400001-- 1999
Honda XR 250 R 19 CV, 14 kw 1cil. ME08A Y Bastidores: JH2 ME08A-YK410001-- 2000
Honda XR 400 R 34 CV, 25 kw 1cil. NE03A T Bastidores: JH2 NE03A-TM000001-JH2 NE03A-TM001983 1996
Honda XR 400 R 34 CV, 25 kw 1cil. NE03A V Bastidores: JH2 NE03A-VM100001-JH2 NE03A-VM102099 1997
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A 1 Bastidores: JH2 NE03A-1K420001-JH2 NE03A-1K429999 2001
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A 2 Bastidores: JH2 NE03A-2K430001-JH2 NE03A-2K439999 2002
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A W Bastidores: JH2 NE03A-WK300001-JH2 NE03A-WK301190 1998
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A W Bastidores: JH2 NE03A-WM200001-JH2 NE03A-WM200629 1998
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A X Bastidores: JH2 NE03A-XK400001-JH2 NE03A-XK400153 1999
Honda XR 400 R 35 CV, 26 kw 1cil. NE03A Y Bastidores: JH2 NE03A-YK410001-JH2 NE03A-YK419999 2000
Honda XR 600 R 37 CV, 27 kw 1cil. PE04A W Bastidores: JH2 PE04A-WK300001-- 1998-2000
Honda XR 600 R 37 CV, 27 kw 1cil. PE04A W Bastidores: JH2 PE04A-WM200001-JH2 PE04A-WM200520 1998-2000
Honda XR 600 R 44 CV, 32 kw 1cil. PE04 S Bastidores: PE04-5950001-PE04-5951514 1995
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04 P Bastidores: PE04-5800001-- 1993
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04 R Bastidores: PE04-5900001-PE04-5906494 1994
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04A T Bastidores: JH2 PE04A-TM000001-JH2 PE04A-TM000881 1996
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04A V Bastidores: JH2 PE04A-VM100001-JH2 PE04A-VM101093 1997
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 M Bastidores: PE04-5600002-PE04-5602807 1991
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 N Bastidores: PE04-5700001-- 1992
