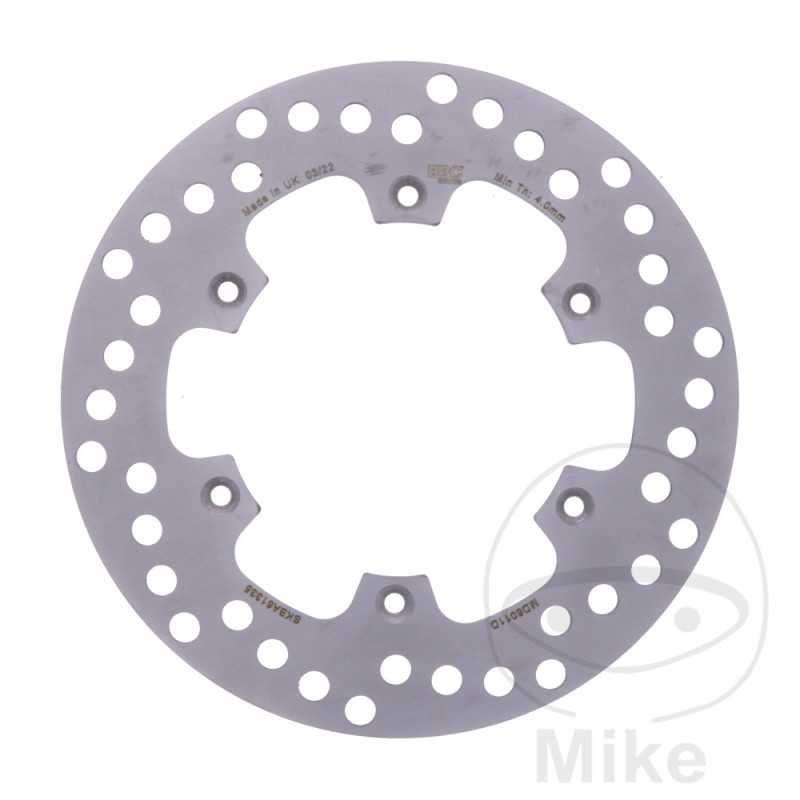

EBC motorcycle brake disc MX / ENDURO ATV 760.31.86

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 115.2MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha WR 400 F 37 CV, 27 kw 1cil. CH02W 5BF2 Bastidores: CH02W henceforth00140-- 1998
Yamaha YZ 125 1cil. 2VN 2VN Bastidores: 2VN henceforth00101-2VN henceforth17000 1988
Yamaha YZ 125 1cil. 3JD 3JD1 Bastidores: 3JD henceforth00101-3JD henceforth22000 1989
Yamaha YZ 125 1cil. 3SR 3SR1 Bastidores: 3SR henceforth00101-3SR henceforth06000 1990
Yamaha YZ 125 1cil. 3XJ 3XJ1 Bastidores: 3XJ henceforth00101-3XJ henceforth08000 1991
Yamaha YZ 125 1cil. 4DB 4DB1 Bastidores: 4DB henceforth00101-4DB henceforth07000 1992
Yamaha YZ 125 36 CV, 27 kw 1cil. 4EX 4EX1 Bastidores: 4EX henceforth00101-- 1993
Yamaha YZ 125 39 CV, 29 kw 1cil. 4JY 4JY1 Bastidores: 4JY henceforth00101-4JY henceforth08999 1994
Yamaha YZ 125 39 CV, 29 kw 1cil. 4PE 4PE1 Bastidores: 4PE henceforth00101-- 1995
Yamaha YZ 125 39 CV, 29 kw 1cil. 4SS 4SS1 Bastidores: 4SS henceforth00101-- 1996
Yamaha YZ 125 39 CV, 29 kw 1cil. 4XM 4XM1 Bastidores: 4XM henceforth01464-- 1997
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 2VM 2VM Bastidores: 2VM henceforth00101-- 1988
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 3JE 3JE1 Bastidores: 3JE henceforth00101-3JE henceforth19000 1989
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 3SP 3SP1 Bastidores: 3SP henceforth00101-3SP henceforth10000 1990
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 3XK 3XK1 Bastidores: 3XK henceforth00101-3XK henceforth08000 1991
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 4DA 4DA1 Bastidores: 4DA henceforth00101-4DA henceforth06000 1992
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 4EW 4EW1 Bastidores: 4EW henceforth00101-- 1993
Yamaha YZ 250 2T 52 CV, 38 kw 1cil. 4JX 4JX1 Bastidores: 4JX henceforth00101-4JX henceforth08999 1994
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4MX 4MX1 Bastidores: 4MX henceforth00101-4MX henceforth06099 1995
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4SR 4SR1 Bastidores: 4SR henceforth00101-- 1996
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4XL 4XL1 Bastidores: 4XL henceforth01138-- 1997
Yamaha YZ 400 F 55 CV, 40 kw 1cil. CH01C 5BE2 Bastidores: CH01C henceforth00356-- 1998
