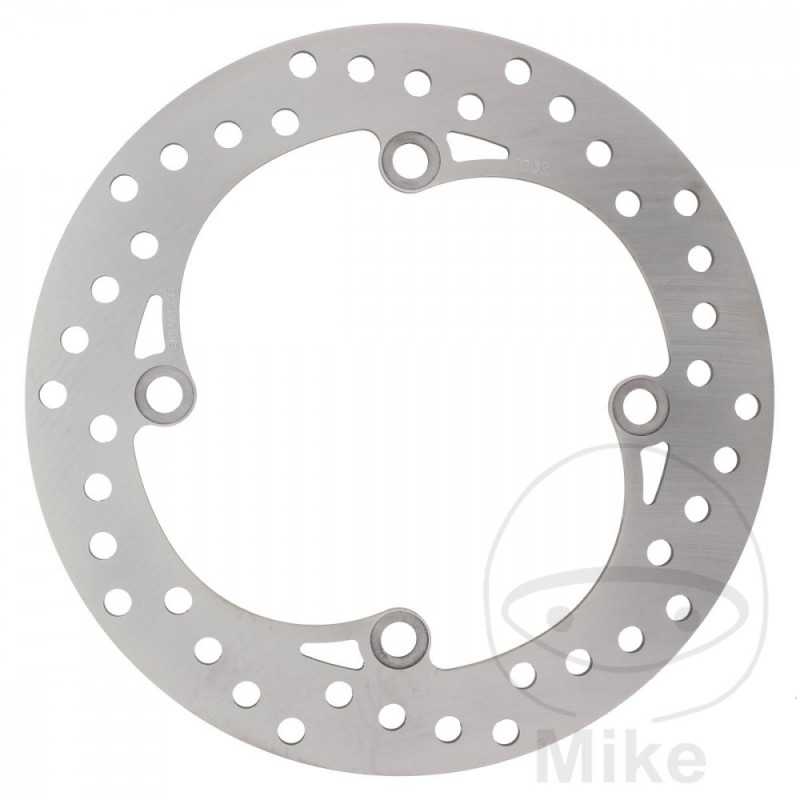

EBC motorcycle brake disc MX / ENDURO ATV 760.30.95

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 140 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 1cil. JE01 K Bastidores: JE01-5000001-- 1989
Honda CR 125 R 1cil. JE01 L Bastidores: JE01-5100531-JE01-5103518 1990
Honda CR 125 R 1cil. JE01 M Bastidores: JE01-5200661-JE01-5203405 1991
Honda CR 125 R 35 CV, 25,5 kw 1cil. JE01 N Bastidores: JE01-5300001-JE01-5303393 1992
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 P Bastidores: JE01-5400001-JE01-5404242 1993
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 R Bastidores: JE01-5500001-JE01-5503569 1994
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A V Bastidores: JE01A-VM100001-- 1997
Honda CR 250 R 1cil. ME03 K Bastidores: ME03-2100001-- 1989
Honda CR 250 R 1cil. ME03 L Bastidores: ME03-2200001-ME03-2204309 1990
Honda CR 250 R 1cil. ME03 M Bastidores: ME03-2300001-ME03-2304645 1991
Honda CR 250 R 1cil. ME03 N Bastidores: ME03-2400001-ME03-2404384 1992
Honda CR 250 R 53 CV, 39 kw 1cil. ME03 P Bastidores: ME03-2500001-ME03-2904986 1993
Honda CR 250 R 54 CV, 40 kw 1cil. ME03 R Bastidores: ME03-5600001-ME03-5603588 1994
Honda CR 250 R 56 CV, 41 kw 1cil. ME03 S Bastidores: ME03-5700001-ME03-5702584 1995
Honda CR 250 R 56 CV, 41 kw 1cil. ME03A T Bastidores: JH2 ME03A-TM000001-- 1996
Honda CR 500 R 1cil. PE02 K Bastidores: PE02-5800001-PE02-5899999 1989
Honda CR 500 R 1cil. PE02 L Bastidores: PE02-5900808-PE02-5901182 1990
Honda CR 500 R 1cil. PE02 M Bastidores: PE02-5000455-PE02-5000569 1991
Honda CR 500 R 1cil. PE02 N Bastidores: PE02-5100001-PE02-5100615 1992
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 P Bastidores: PE02-5200001-PE02-5200537 1993
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 R Bastidores: PE02-5300001-PE02-5300488 1994
Honda CR 500 R 65 CV, 48 kw 1cil. PE02 S Bastidores: PE02-5400001-PE02-5400422 1995
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A 1 Bastidores: JH2 PE02A-1M500001-- 2001
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A T Bastidores: JH2 PE02A-TM000001-- 1996
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A V Bastidores: JH2 PE02A-VM100001-- 1997
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A W Bastidores: JH2 PE02A-WM200001-JH2 PE02A-WM200434 1998
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A X Bastidores: JH2 PE02A-XM300001-JH2 PE02A-XM300460 1999
Honda CR 500 R 65 CV, 48 kw 1cil. PE02A Y Bastidores: JH2 PE02A-YM400001-- 2000
