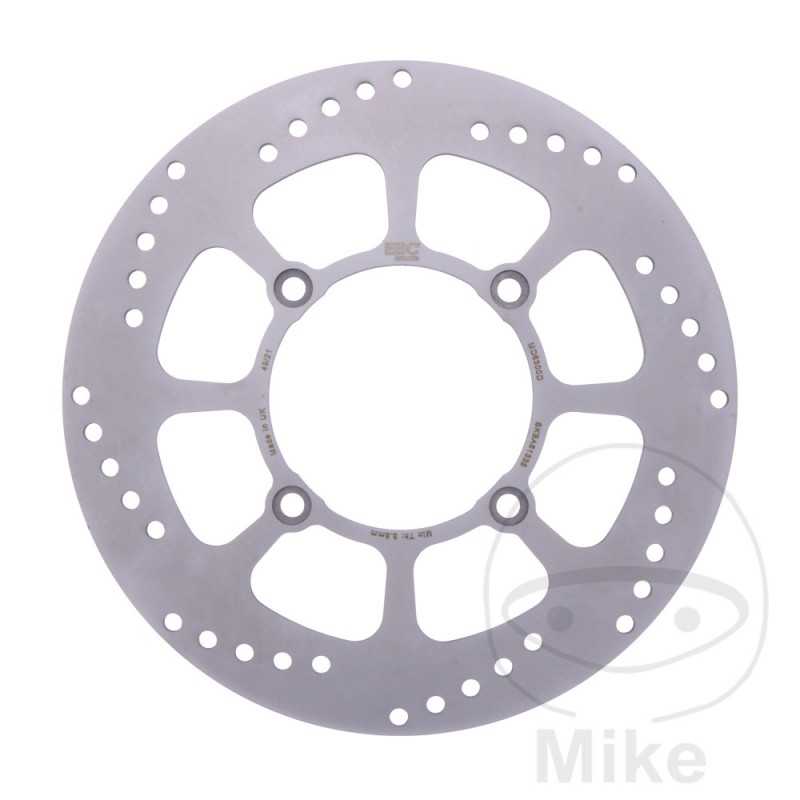

EBC motorcycle brake disc MX / ENDURO ATV 760.21.39

EBC MX brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Rigid brake disc, super light, completely new profile

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 112.2MM
CIRCLE SIZE: 134 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA FMX 650 34 CV, 25 KW 1CIL. RD12B 5 BASTIDORES: VTM RD12B henceforth5E000001-VTM RD12B henceforth5E099999 2005
HONDA FMX 650 34 CV, 25 KW 1CIL. RD12B 6 BASTIDORES: VTM RD12B henceforth6E010001-- 2006-2007
HONDA FMX 650 38 CV, 28 KW 1CIL. RD12A 5 BASTIDORES: VTM RD12A henceforth5E000023-VTM RD12A henceforth5E099999 2005
HONDA FMX 650 38 CV, 28 KW 1CIL. RD12A 6 BASTIDORES: VTM RD12A henceforth6E210001-- 2006-2007
