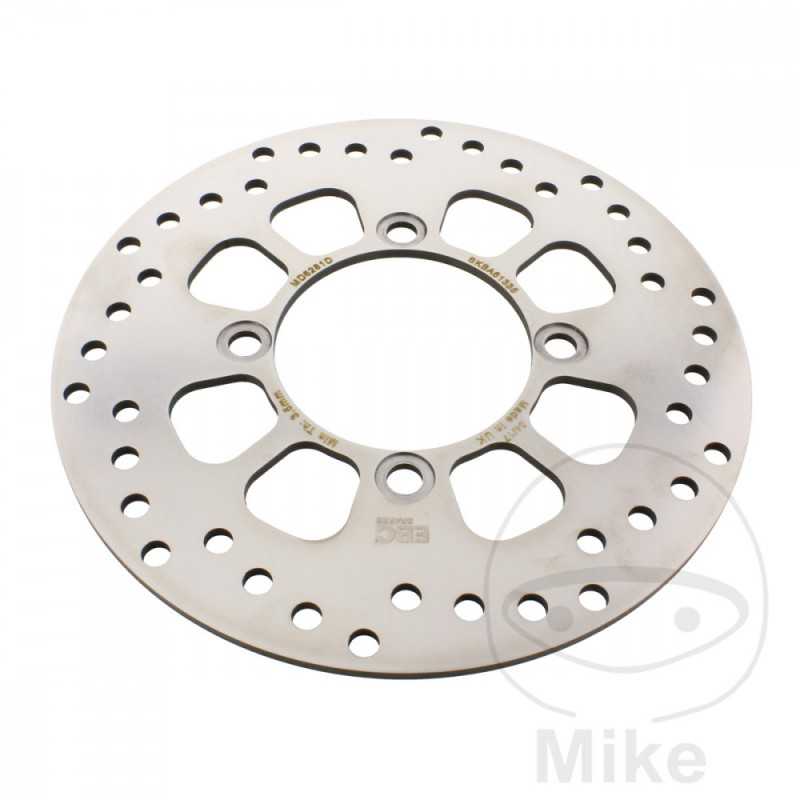

EBC motorcycle brake disc MX / ENDURO ATV 760.19.74

EBC MX brake disc for off-road motorcycles. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is crushed in the area of the contact patch of the brake pads when braking. It is only in this area that a light oxide film with a longer service life can form.

The brake discs are drilled in the bird's-eye design to fit through with as few holes as possible while optimizing the cleaning of the disc from rainwater and brake dust. The fewer holes drilled, the better the wet braking behavior and less wear.

- Rigid brake disc, super light, completely new profile

- Made of heat-treated carbon steel.

- Drilled braking surface with optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 81.2MM
CIRCLE SIZE: 100 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI RV 125 VAN VAN 11,6 CV. 8,5 KW 1CIL. WVBT1111 K7 BASTIDORES: BT1111 henceforth0111063-BT1111 henceforth0112755 2007
SUZUKI RV 125 VAN VAN 11,6 CV. 8,5 KW 1CIL. WVBT1111 K8 BASTIDORES: BT1111 henceforth0112756-BT1111 henceforth0115181 2008
SUZUKI RV 125 VAN VAN 11,6 CV. 8,5 KW 1CIL. WVBT1111 K9 BASTIDORES: BT1111 henceforth0115182-BT1111 henceforth0116732 2009
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K3 BASTIDORES: BT1111 henceforth0100001-BT1111 henceforth0103534 2003
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K4 BASTIDORES: BT1111 henceforth0103535-BT111-100106979 2004
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K5 BASTIDORES: BT1111 henceforth0106980-BT1111 henceforth0107684 2005
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K6 BASTIDORES: BT1111 henceforth0107685-BT1111 henceforth0111062 2006
SUZUKI RV 125 VAN VAN 12 CV. 8,8 KW 1CIL. WVBT1111 L0 BASTIDORES: BT1111 henceforth0116733-BT1111 henceforth0122088 2010-2012
SUZUKI RV 125 VAN VAN 12 CV. 8,8 KW 1CIL. WVBT1111 L3 BASTIDORES: BT1111 henceforth0122089-BT1111 henceforth0125553 2013-2014
SUZUKI RV 125 VAN VAN 12 CV. 8,8 KW 1CIL. WVBT1111 L5 BASTIDORES: BT1111 henceforth0125554-- 2015-2017
SUZUKI RV 200 VAN VAN 14,3 CV, 10,5 KW 1CIL. WVBT2211 L6 BASTIDORES: BT2211-G0100001-- 2016-2017
