Free shipping to every country in the world! (Conditions applied)

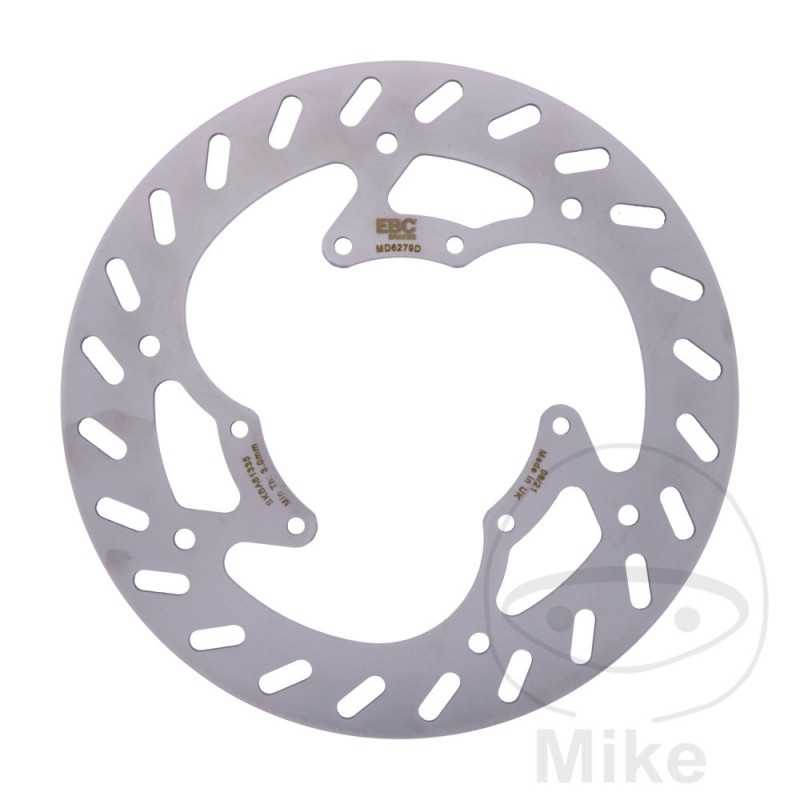

EBC motorcycle brake disc MX / ENDURO ATV 760.19.09
€67.15
€80.55
Save 16.63%Tax included
EBC MX brake disc for offroad motorcycles. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Rigid brake disc, super light, completely new profile
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 108.3MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MALAGUTI XSM 50 MOTARD 2,2 CV, 1,6 KW 1CIL. 68K1A4 BASTIDORES: --- 2008-2011
YAMAHA DT 50 X 2,85 CV, 2,1 KW 1CIL. 70K1A 14PB BASTIDORES: --- 2012-2013
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401B 3D64 BASTIDORES: 7401B074 henceforth16351-- 2006
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401F 13D2 BASTIDORES: 7401F074 henceforth19168-- 2007
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401F 13D4 BASTIDORES: --- 2007
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401H 13D6 BASTIDORES: 7401H074 henceforth25142-- 2008-2012
YAMAHA XT 125 X 12,5 CV, 9,2 KW 1CIL. 7401B 3D62 BASTIDORES: 7401B074 henceforth03406-- 2005
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Rigid brake disc, super light, completely new profile
- Made of carbon steel with heat treatment.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC Organic TT brake pads or for sporty riders EBC sintered brake pads in R or MXS mix.
- Independent design.
- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 108.3MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MALAGUTI XSM 50 MOTARD 2,2 CV, 1,6 KW 1CIL. 68K1A4 BASTIDORES: --- 2008-2011
YAMAHA DT 50 X 2,85 CV, 2,1 KW 1CIL. 70K1A 14PB BASTIDORES: --- 2012-2013
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401B 3D64 BASTIDORES: 7401B074 henceforth16351-- 2006
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401F 13D2 BASTIDORES: 7401F074 henceforth19168-- 2007
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401F 13D4 BASTIDORES: --- 2007
YAMAHA XT 125 X 10 CV, 7,3 KW 1CIL. 7401H 13D6 BASTIDORES: 7401H074 henceforth25142-- 2008-2012
YAMAHA XT 125 X 12,5 CV, 9,2 KW 1CIL. 7401B 3D62 BASTIDORES: 7401B074 henceforth03406-- 2005
760.19.09
10 Items
Data sheet
- EXTERNAL DIAMETER
- 260 MM
- CIRCLE MEASUREMENT
- 125MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 125MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 6
- THICKNESS
- 3.5 MM
