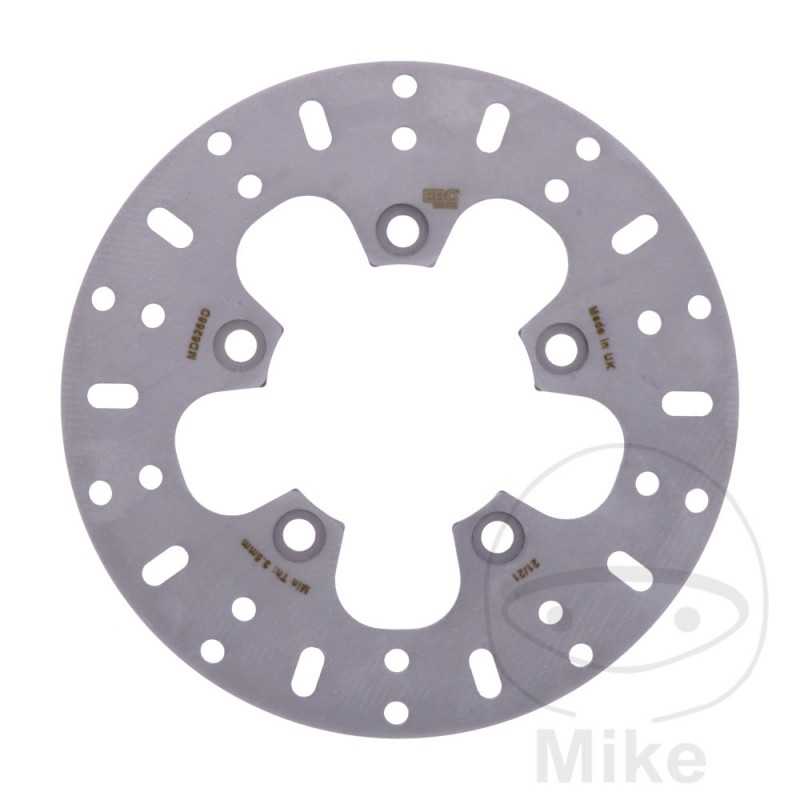

EBC motorcycle brake disc MX / ENDURO ATV 760.18.00

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 88.2MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Arctic Cat/Textron DVX 250 2WD 1cil. - Bastidores: --- 2006-2008
Arctic Cat/Textron DVX 300 Euro 2WD 1cil. - Bastidores: --- 2008-2012
Arctic Cat/Textron DVX 300 Euro 2WD 20,4/19,9 CV, 15/14,6 kw 1cil. - Bastidores: --- 2013-2014
Kymco KXR 250 Sport 17 CV, 12,5 kw 1cil. L30000 L3 Bastidores: RFBL30000-- 2004-2007
Kymco Like 150 i ABS Euro4 13,9 CV, 10,2 kw 1cil. D130B4 Bastidores: LC2D130B4-- 2018-2021
Kymco Like 50 II 4T i euro4 3,3 CV, 2,4 kw 1cil. D410B1 TA10AA(D4) Bastidores: LC2D410B1-- 2019
Kymco Like 50 II 4T i Euro4 3,3 CV, 2,4 kw 1cil. D410B1 TA10AA(D4) Bastidores: LC2D410B1-- 2020
Kymco Like 50 II 4T i Euro5 3,3 CV, 2,4 kw 1cil. 2DC0 Bastidores: LC2DC0-- 2021-2022
Kymco Like 50 II 4T i Special Edition Euro4 3,3 CV, 2,4 kw 1cil. D410B1 Bastidores: LC2D410B1-- 2020
Kymco Like 50 II 4T i Special Edition Euro5 3,3 CV, 2,4 kw 1cil. 2DC0 Bastidores: LC2DC0-- 2021-2022
Kymco Like 50 II S 4T i Euro5 3,3 CV, 2,4 kw 1cil. - Bastidores: --- 2021-2022
Kymco Maxxer 250 Offroad 17,3 CV, 12,7 kw 1cil. L30010 L3 Bastidores: RFBL30010-- 2008-2012
Kymco Maxxer 250 Onroad 17,3 CV, 12,7 kw 1cil. L30010 L3 Bastidores: RFBL30010-- 2008-2017
Kymco Maxxer 300 Offroad 19,3 CV, 14,2 kw 1cil. L30020 L3 Bastidores: RFBL30020-- 2006-2012
Kymco Maxxer 300 Offroad Wide 20,3 CV, 14,9 kw 1cil. L30060 L3 Bastidores: RFBL30060-- 2013-2017
Kymco Maxxer 300 Onroad 19,3 CV, 14,2 kw 1cil. L30020 L3 Bastidores: RFBL30020-- 2007-2012
Kymco MXU 250 Offroad 17,3 CV, 12,7 kw 1cil. L60000 L6 Bastidores: RFBL60000-- 2005-2010
Kymco MXU 250 Onroad 17,3 CV, 12,7 kw 1cil. L60000 L6 Bastidores: RFBL60000-- 2006-2017
