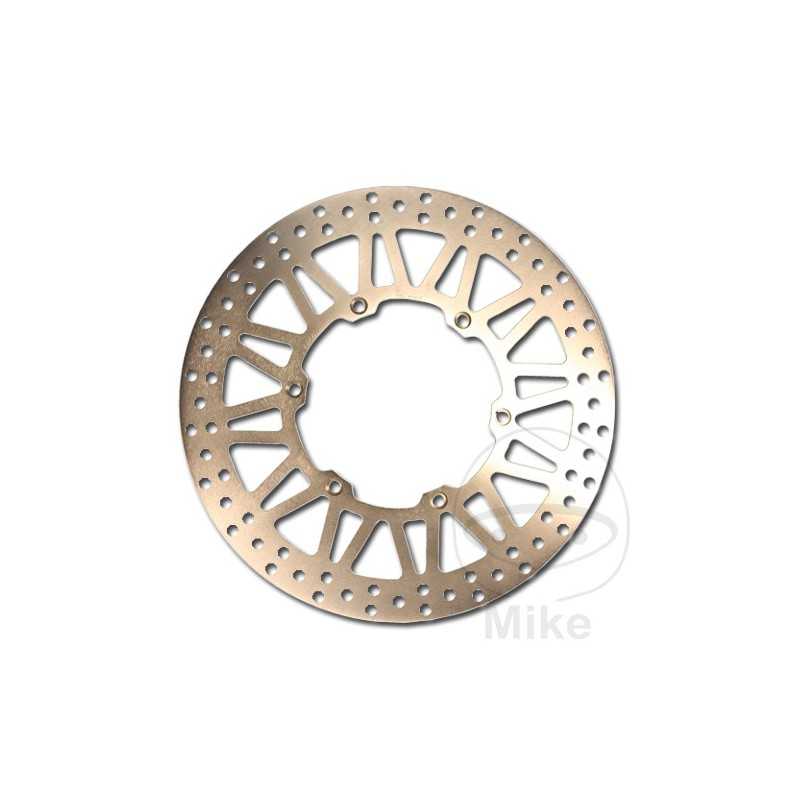

EBC motorcycle brake disc MX / ENDURO ATV 760.16.77

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Brake ring milled in forged HPSR steel with low carbon content.

- Therefore, there is no distortion of the brake disc even under the highest load.

- No glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 127.2MM
CIRCLE SIZE: 143 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM ADVENTURE 640 E LC4 54/34 CV, 40 /25KW 1CIL. - BASTIDORES: --- 2005-2007
KTM ADVENTURE 950 LC8 34 CV, 25 KW 2CIL. - BASTIDORES: --- 2003-2005
KTM ADVENTURE 950 LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2003-2005
KTM ADVENTURE 950 S LC8 34 CV, 25 KW 2CIL. - BASTIDORES: --- 2003-2005
KTM ADVENTURE 950 S LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2003-2005
