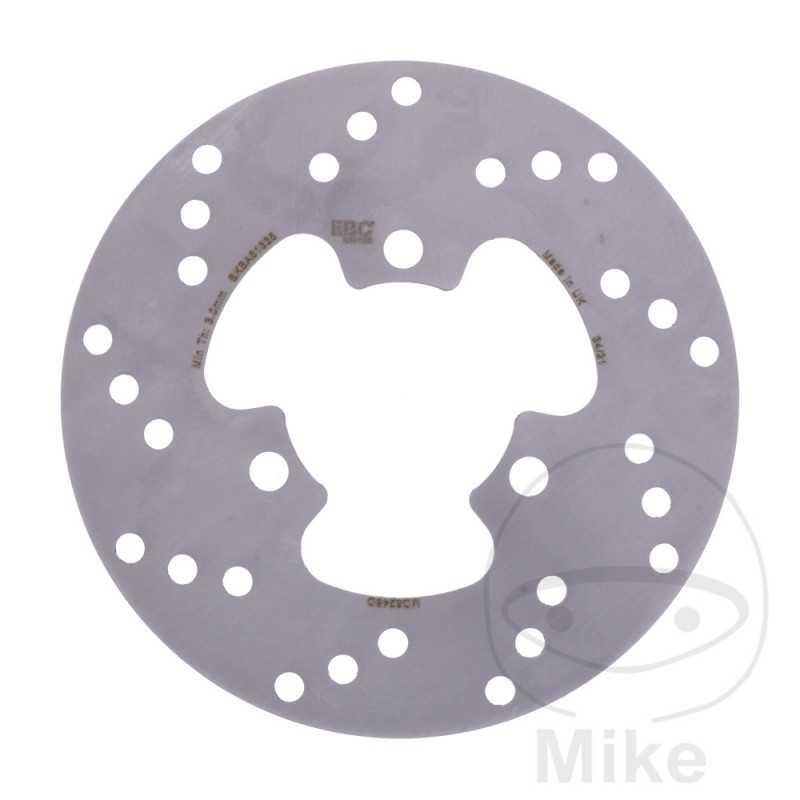

EBC motorcycle brake disc MX / ENDURO ATV 760.16.36

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.
OUTER DIAMETER: 180MM
INSIDE DIAMETER: 62.4MM
CIRCLE SIZE: 80 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
APRILIA RX 50 4,9 CV, 3,6 KW 1CIL. - BASTIDORES: --- 2009-2010
APRILIA RX 50 4,9 CV, 3,6 KW 1CIL. - BASTIDORES: --- 2014-2018
APRILIA RX 50 4,9 CV, 3,6 KW 1CIL. PV000 BASTIDORES: --- 2006-2008
APRILIA RX 50 4,9 CV, 3,6 KW 1CIL. PVL01/PVH01 BASTIDORES: --- 2011-2013
APRILIA RX 50 FACTORY EURO4 3 CV, 2,2 KW 1CIL. KKA01 BASTIDORES: --- 2018-2019
APRILIA RX 50 FACTORY EURO4 3 CV, 2,2 KW 1CIL. KKA01 BASTIDORES: --- 2020-2021
APRILIA SX 50 SM 4,9 CV, 3,6 KW 1CIL. - BASTIDORES: --- 2014-2018
APRILIA SX 50 SM 4,9 CV, 3,6 KW 1CIL. PVA00 BASTIDORES: --- 2006-2008
APRILIA SX 50 SM 4,9 CV, 3,6 KW 1CIL. PVE00 BASTIDORES: --- 2009-2010
APRILIA SX 50 SM 4,9 CV, 3,6 KW 1CIL. PVG01 BASTIDORES: --- 2011-2012
APRILIA SX 50 SM 4,9 CV, 3,6 KW 1CIL. SWA BASTIDORES: --- 2013
APRILIA SX 50 SM EURO4 3 CV, 2,2 KW 1CIL. KKB01 BASTIDORES: --- 2018-2019
APRILIA SX 50 SM EURO4 3 CV, 2,2 KW 1CIL. KKB01 BASTIDORES: --- 2020-2021
APRILIA SX 50 SM FACTORY EURO4 3 CV, 2,2 KW 1CIL. KKB03 BASTIDORES: --- 2018-2019
APRILIA SX 50 SM FACTORY EURO4 3 CV, 2,2 KW 1CIL. KKB03 BASTIDORES: --- 2020-2021
DERBI SENDA 50 R X-RACE 2,9 CV, 2,1 KW 1CIL. SR1D1A BASTIDORES: --- 2010-2011
DERBI SENDA 50 R X-RACE 2,9 CV, 2,1 KW 1CIL. SR1D1A BASTIDORES: VTHSR1D1A7H349004-- 2007-2009
DERBI SENDA 50 R X-RACE 3,2 CV, 2,3 KW 1CIL. SR1A1A BASTIDORES: VTHSR1A1A5H275859-- 2005
DERBI SENDA 50 R X-RACE 3,2 CV, 2,3 KW 1CIL. SR1D1A BASTIDORES: VTHSR1D1A6H310130-- 2006
DERBI SENDA 50 R X-TREME 2,9 CV, 2,1 KW 1CIL. SR1D1A BASTIDORES: --- 2010-2014
DERBI SENDA 50 R X-TREME 2,9 CV, 2,1 KW 1CIL. SR1D1A BASTIDORES: VTHSR1D1A7H349915-- 2007
DERBI SENDA 50 R X-TREME 2,9 CV, 2,1 KW 1CIL. SR1D1A BASTIDORES: VTHSR1D1A8H398739-- 2008-2009
DERBI SENDA 50 R X-TREME 3,2 CV, 2,3 KW 1CIL. SDR1EB/SDRAB BASTIDORES: --- 2003
DERBI SENDA 50 R X-TREME 3,2 CV, 2,3 KW 1CIL. SR1A1A BASTIDORES: VTHSR1A1A4H234669-- 2004
DERBI SENDA 50 R X-TREME 3,2 CV, 2,3 KW 1CIL. SR1A1A BASTIDORES: VTHSR1A1A5H271403-- 2005
DERBI SENDA 50 R X-TREME 3,2 CV, 2,3 KW 1CIL. SR1D1A BASTIDORES: VTHSR1D1A6H309111-- 2005-2006
DERBI SENDA 50 SM DRD 3,2 CV, 2,3 KW 1CIL. SDR1HB BASTIDORES: VTHSDR1HB2H194077-- 2003-2004
DERBI SENDA 50 SM X-RACE 2,9 CV, 2,1 KW 1CIL. - BASTIDORES: --- 2007-2009
DERBI SENDA 50 SM X-RACE 2,9 CV, 2,1 KW 1CIL. SR2D1A BASTIDORES: --- 2010-2011
DERBI SENDA 50 SM X-RACE 3,2 CV, 2,3 KW 1CIL. SR2A1A BASTIDORES: --- 2005
DERBI SENDA 50 SM X-RACE 3,2 CV, 2,3 KW 1CIL. SR2E1A BASTIDORES: VTHSR2E1A6H322477-- 2006
DERBI SENDA 50 SM X-TREME 2,9 CV, 2,1 KW 1CIL. - BASTIDORES: --- 2007-2009
DERBI SENDA 50 SM X-TREME 2,9 CV, 2,1 KW 1CIL. SR2D1A BASTIDORES: --- 2010-2013
DERBI SENDA 50 SM X-TREME 3,2 CV, 2,3 KW 1CIL. - BASTIDORES: --- 2005-2006
DERBI SENDA 50 SM X-TREME 3,2 CV, 2,3 KW 1CIL. SDR1FB BASTIDORES: VTHSDR1FB2H187677-- 2003
DERBI SENDA 50 SM X-TREME 3,2 CV, 2,3 KW 1CIL. SR2A1A BASTIDORES: VTHSR2A1A4H233841-VTHSR2A1A4H236084 2004
GILERA RCR 50 ENDURO 2,2 CV, 1,6 KW 1CIL. GI1A1A4H BASTIDORES: ZAPGI1A1A4H238634-- 2004
GILERA SMT 50 SUPERMOTARD 2,2 CV, 1,6 KW 1CIL. GI2A1A4H BASTIDORES: ZAPGI2A1A4H239829-- 2003-2004
