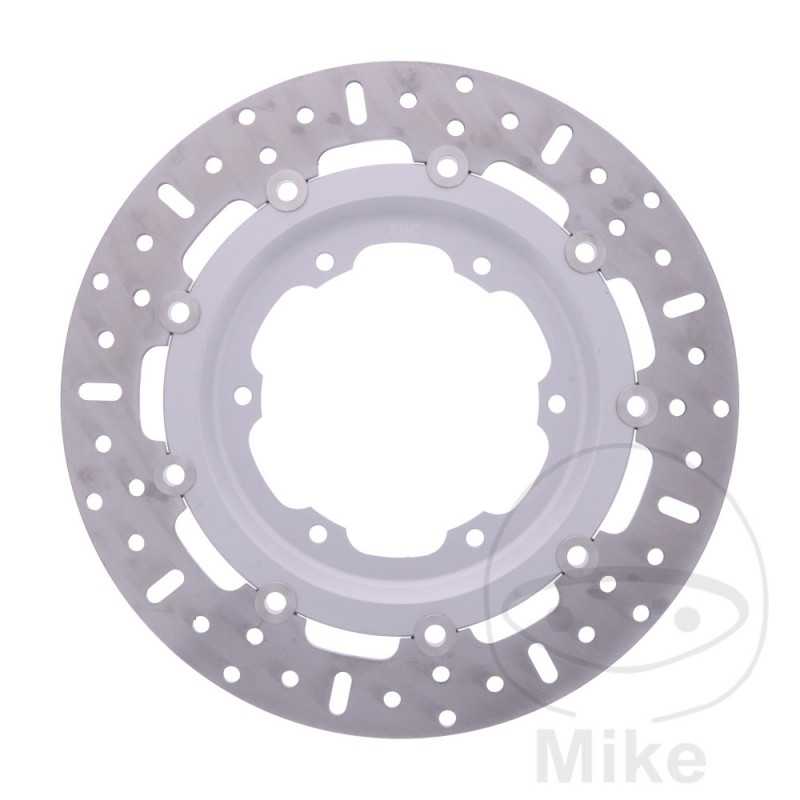

EBC motorcycle brake disc MX / ENDURO ATV 760.01.90

EBC Prolite floating brake disc, full float. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Anodized aluminum hub.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 150MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
PADDING: 14.2MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XT 660 X 34 CV, 25 KW 1CIL. - 11B1 BASTIDORES: --- 2007
YAMAHA XT 660 X 34 CV, 25 KW 1CIL. - 11B2 BASTIDORES: --- 2008
YAMAHA XT 660 X 34 CV, 25 KW 1CIL. - 3S71 BASTIDORES: --- 2005
YAMAHA XT 660 X 34 CV, 25 KW 1CIL. DM017 3S72 BASTIDORES: DM017 henceforth00270-- 2006
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM014 1D21 BASTIDORES: DM014 henceforth00151-- 2004
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM014 1D24 BASTIDORES: DM014 henceforth09730-- 2005
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM014 1D26 BASTIDORES: DM014 henceforth15350-- 2006
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM01B 10S1 BASTIDORES: DM01B henceforth00101-- 2007
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM01B 10S3 BASTIDORES: DM01B henceforth05021-- 2008
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM01B 10S5 BASTIDORES: DM01B henceforth10286-- 2009
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM01B 10S7 BASTIDORES: DM01B henceforth11402-- 2010
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM01B 10S9 BASTIDORES: DM01B henceforth30001-- 2011-2013
YAMAHA XT 660 X 48 CV, 35 KW 1CIL. DM01B 10SC BASTIDORES: DM01B henceforth32001-- 2014-2016
