EBC motorcycle brake disc MX / ENDURO ATV 760.01.74

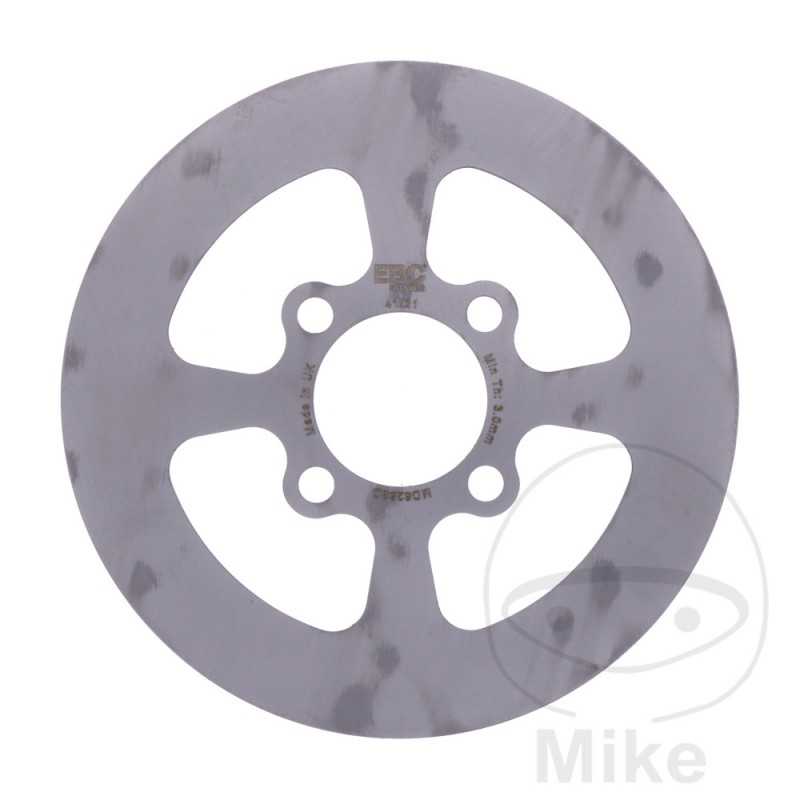

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a slight flash of rust form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better braking behavior in the wet and less wear.

- Brake ring milled in forged HPSR steel with low carbon content.

- Therefore, there is no deformation of the brake disc even under the highest load.

- No glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 200MM
INSIDE DIAMETER: 51.2MM
CIRCLE SIZE: 71 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.8 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1AS3 Bastidores: AM07W henceforth23989-- 2010
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1AS9 Bastidores: AM07W henceforth25726-- 2011
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1ASF Bastidores: AM07W henceforth27285-- 2012
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S33 Bastidores: AM07W henceforth00101-- 2006
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S36 Bastidores: AM07W henceforth03960-- 2006
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S39 Bastidores: AM07W henceforth08732-- 2007
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3G Bastidores: AM07W henceforth13764-- 2007
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3K Bastidores: AM07W henceforth16114-- 2008
Yamaha YFM 700 R 48 CV, 35 kw 1cil. AM07W 1S3V Bastidores: AM07W henceforth20880-- 2009
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1AS6 Bastidores: AM07W henceforth24200-- 2010
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1ASC Bastidores: AM07W henceforth25706-- 2011
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1ASJ Bastidores: AM07W henceforth27245-- 2012
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3C Bastidores: AM07W henceforth09689-- 2007
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3P Bastidores: AM07W henceforth16749-- 2008
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3U Bastidores: AM07W henceforth19146-- 2008
Yamaha YFM 700 R SE Special Edition 48 CV, 35 kw 1cil. AM07W 1S3Y Bastidores: AM07W henceforth21408-- 2009
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D33 Bastidores: AJ20W henceforth03771-- 2007
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5D3D Bastidores: AJ20W henceforth06986-- 2008
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5TGF Bastidores: AJ20W henceforth00101-- 2006
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ20W 5TGJ Bastidores: AJ20W henceforth02337-- 2006
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ60W 1PD3 Bastidores: AJ60W henceforth00001-- 2012
Yamaha YFZ 450 49 CV, 36 kw 1cil. AJ60W 1PD6 Bastidores: AJ60W henceforth00808-- 2013-2014
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18P3 Bastidores: AJ42W henceforth00031-- 2009
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18P9 Bastidores: AJ42W henceforth01347-- 2010
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18PF Bastidores: AJ42W henceforth02131-- 2011
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18PL Bastidores: AJ42W henceforth02809-- 2012
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ42W 18PS Bastidores: AJ42W henceforth03243-- 2013
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ70W 1TD3 Bastidores: AJ70W-500101-- 2014
Yamaha YFZ 450 R 49 CV, 36 kw 1cil. AJ74W 1TDA Bastidores: AJ74W-500101-- 2014
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18P6 Bastidores: AJ42W henceforth00870-- 2009
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PC Bastidores: AJ42W henceforth01799-- 2010-2011
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PH Bastidores: AJ42W henceforth02357-- 2011
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PN Bastidores: AJ42W henceforth02936-- 2012
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ42W 18PV Bastidores: AJ42W henceforth03277-- 2013
Yamaha YFZ 450 R SE Special Edition 49 CV, 36 kw 1cil. AJ72W 1TD7 Bastidores: AJ72W-500101-- 2014
Yamaha YFZ 450 SE Special Edition 49 CV, 36 kw 1cil. AJ20W 5D36 Bastidores: AJ20W henceforth04316-- 2007
Yamaha YFZ 450 SE Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3A Bastidores: AJ20W henceforth06178-- 2007
Yamaha YFZ 450 SP Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3G Bastidores: AJ20W henceforth07248-- 2008
Yamaha YFZ 450 SP Special Edition 49 CV, 36 kw 1cil. AJ20W 5D3L Bastidores: AJ20W henceforth08146-- 2008
