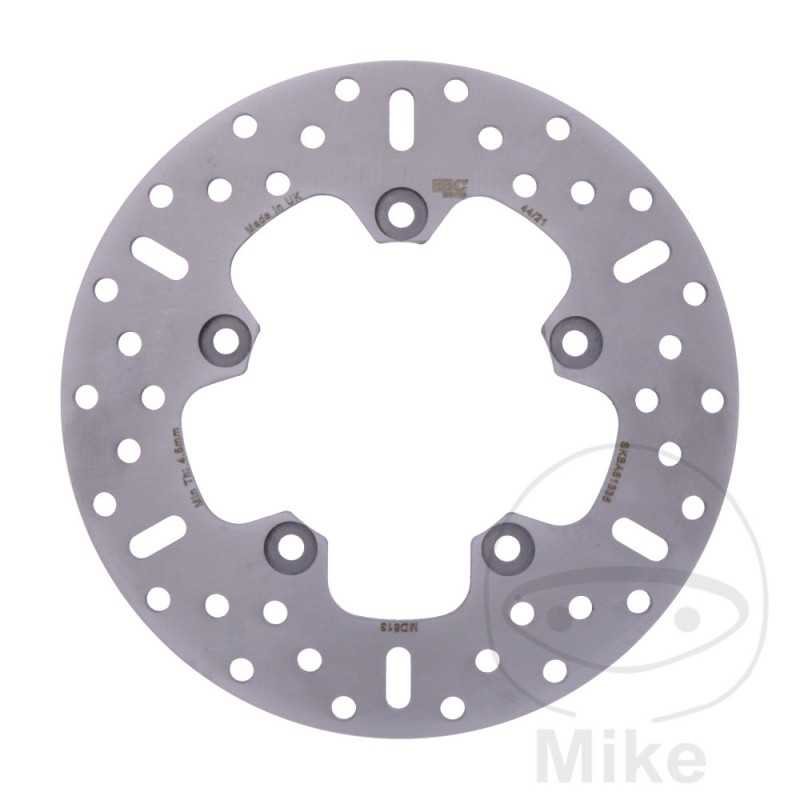

EBC BRAKE DISK 760.78.31

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 102.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RSV 1000 Mille 118 CV, 87 kw 2cil. ME000 Bastidores: ZD4ME0000WS000037-ZD4ME0000WS000766 1998-1999
Aprilia RSV 1000 Mille 118 CV, 87 kw 2cil. ME000 Bastidores: ZD4ME0000XS000767-- 2000
Aprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP000 Bastidores: ZD4RP00001S000001-- 2001-2002
Aprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. MEA00 Bastidores: ZD4MEA000WS000001-ZD4MEA000XS000843 1998-1999
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. MEA00 Bastidores: ZD4MEA000XS000845-- 2000
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. RP001 Bastidores: ZD4RP00101S000001-- 2001-2002
Aprilia RSV 1000 R 139 CV, 102 kw 2cil. RR000 Bastidores: --- 2004-2005
Aprilia RSV 1000 R 143 CV, 105 kw 2cil. RR000 Bastidores: --- 2007-2010
Aprilia RSV 1000 R 143 CV, 105 kw 2cil. RRK00 Bastidores: --- 2006
Aprilia RSV 1000 R Factory 139 CV, 102 kw 2cil. RR000 Bastidores: --- 2004-2005
Aprilia RSV 1000 R Factory 143 CV, 105 kw 2cil. RRK00 Bastidores: --- 2006-2010
Aprilia RSV 1000 R Mille 118 CV, 87 kw 2cil. ME001 Bastidores: ZD4ME0010XS000001-- 2000
Aprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
Aprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RPA00 Bastidores: ZD4RPA000YS000006-- 2001-2002
Aprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. MEA01 Bastidores: --- 2000
Aprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. RPA01 Bastidores: ZD4RPA0101S000001-- 2001-2002
Aprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB00 Bastidores: --- 2003
Aprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
Aprilia RSV 1000 R Tuono Factory 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
Aprilia RSV4 1000 Factory 180 CV, 132 kw 4cil. RK000 Bastidores: --- 2009-2011
Aprilia RSV4 1000 Factory ABS APRC 184 CV, 135 kw 4cil. RKG Bastidores: --- 2013-2015
Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB00 Bastidores: --- 2011
Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB01 Bastidores: --- 2012-2013
Aprilia RSV4 1000 R 180 CV, 132 kw 4cil. RKA00/RKC01 Bastidores: --- 2010-2013
Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKH/RKU04 Bastidores: --- 2013
Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKUA4 Bastidores: --- 2014-2015
Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE00 Bastidores: --- 2011
Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE01 Bastidores: --- 2012-2013
Aprilia RSV4 1100 ABS Euro5 217 CV, 159,5 kw 4cil. - Bastidores: --- 2021-2022
Aprilia RSV4 1100 Factory ABS Euro5 217 CV, 160 kw 4cil. 4KYB Bastidores: ZD4KYB00000000001-ZD4KYB00000999999 2021-2022
Aprilia SL 1000 Falco 118 CV, 87 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
Aprilia SL 1000 Falco 95 CV, 70 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
Aprilia Tuono 1000 R 133 CV, 98 kw 2cil. RR100 Bastidores: --- 2007-2011
Aprilia Tuono 1000 R 133 CV, 98 kw 2cil. RRL00 Bastidores: ZD4RRL0056S000001-- 2006
Aprilia Tuono 1000 R Factory 139 CV, 102 kw 2cil. RR100 Bastidores: --- 2007-2011
Aprilia Tuono 1000 V4 R 167 CV, 123 kw 4cil. TY000 Bastidores: --- 2011-2013
Aprilia Tuono 1000 V4 R ABS APRC 170 CV, 125 kw 4cil. TYB02/TYB03 Bastidores: --- 2013-2014
Aprilia Tuono 1000 V4 R APRC 167 CV, 123 kw 4cil. TY000 Bastidores: --- 2011-2013
Aprilia Tuono 1100 V4 ABS Euro5 175 CV, 129 kw 4cil. METCD3 Bastidores: --- 2021-2022
Aprilia Tuono 1100 V4 Factory ABS Euro5 175 CV, 129 kw 4cil. KZB00 Bastidores: --- 2021-2022
