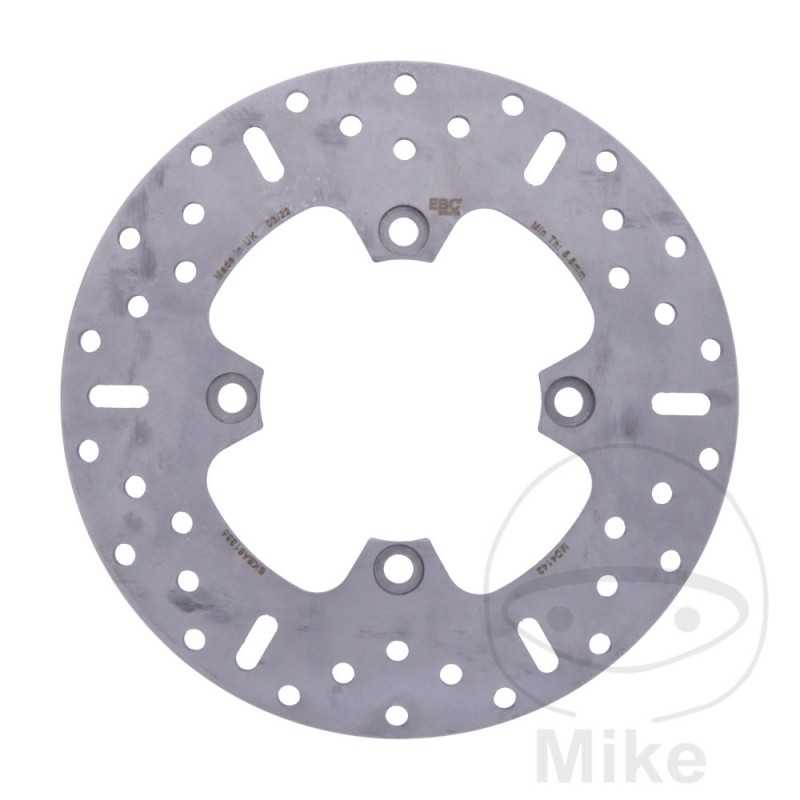

EBC BRAKE DISK 760.75.83

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 120 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.8MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZR-7 750 F 34 CV, 25 kw 4cil. ZR750FFA 1 Bastidores: ZR750FFA henceforth00001-ZR750FFA henceforth50000 1999-2000
Kawasaki ZR-7 750 F 34 CV, 25 kw 4cil. ZR750FFA 3 Bastidores: ZR750FFA henceforth50001-ZR750FFA-100000 2001-2002
Kawasaki ZR-7 750 F 34 CV, 25 kw 4cil. ZR750FFA 5 Bastidores: ZR750FFA-100001-ZR750FFA-999999 2003-2004
Kawasaki ZR-7 750 F 76 CV, 56 kw 4cil. ZR750FFA 1 Bastidores: ZR750FFA henceforth00001-ZR750FFA henceforth50000 1999-2000
Kawasaki ZR-7 750 F 76 CV, 56 kw 4cil. ZR750FFA 3 Bastidores: ZR750FFA henceforth50001-ZR750FFA-100000 2001-2002
Kawasaki ZR-7 750 F 76 CV, 56 kw 4cil. ZR750FFA 5 Bastidores: ZR750FFA-100001-ZR750FFA-999999 2003-2004
Kawasaki ZR-7 750 S 34 CV, 25 kw 4cil. ZR750FHA H1 Bastidores: ZR750FHA henceforth50001-ZR750FHA-100000 2001-2002
Kawasaki ZR-7 750 S 34 CV, 25 kw 4cil. ZR750FHA H3 Bastidores: ZR750FHA-100001-ZR750FHA-999999 2003-2004
Kawasaki ZR-7 750 S 76 CV, 56 kw 4cil. ZR750FHA H1 Bastidores: ZR750FHA henceforth50001-ZR750FHA-100000 2001-2002
Kawasaki ZR-7 750 S 76 CV, 56 kw 4cil. ZR750FHA H3 Bastidores: ZR750FHA-100001-ZR750FHA-999999 2003-2004
