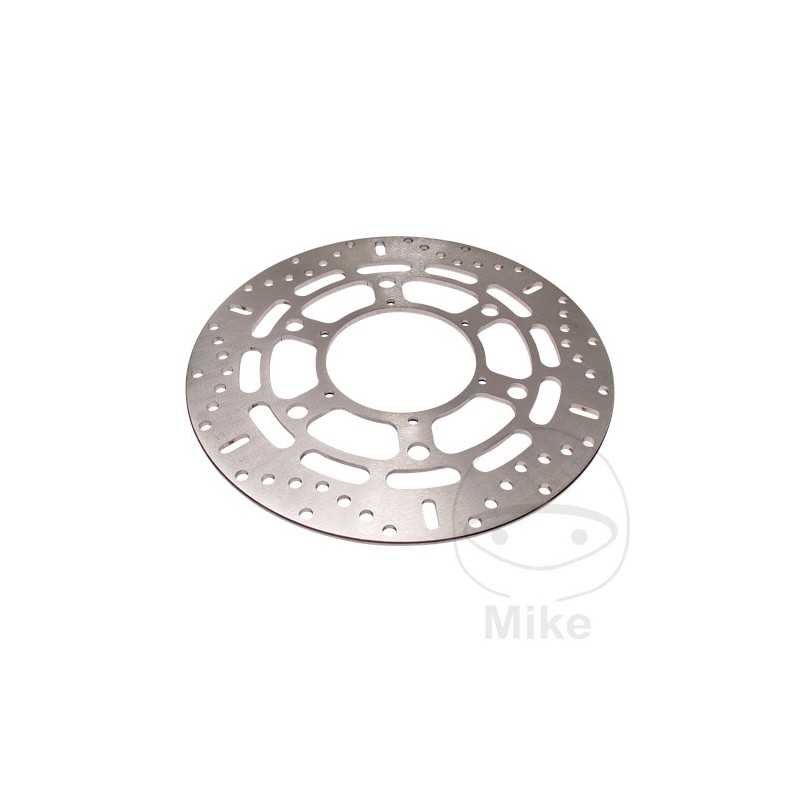

EBC BRAKE DISK 760.56.11

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 650 650 34 CV, 25 kw 1cil. E169 0161 Bastidores: --- 1994-1996
BMW F 650 650 34 CV, 25 kw 1cil. E169 MU 0162 Bastidores: --- 1997-2000
BMW F 650 650 48 CV, 35 kw 1cil. E169 0161 Bastidores: --- 1994-1996
BMW F 650 650 48 CV, 35 kw 1cil. E169 MU 0162 Bastidores: --- 1997-2000
BMW F 650 650 ST 34 CV, 25 kw 1cil. E169 0163 Bastidores: --- 1997-1999
BMW F 650 650 ST 48 CV, 35 kw 1cil. E169 0163 Bastidores: --- 1997-1999
