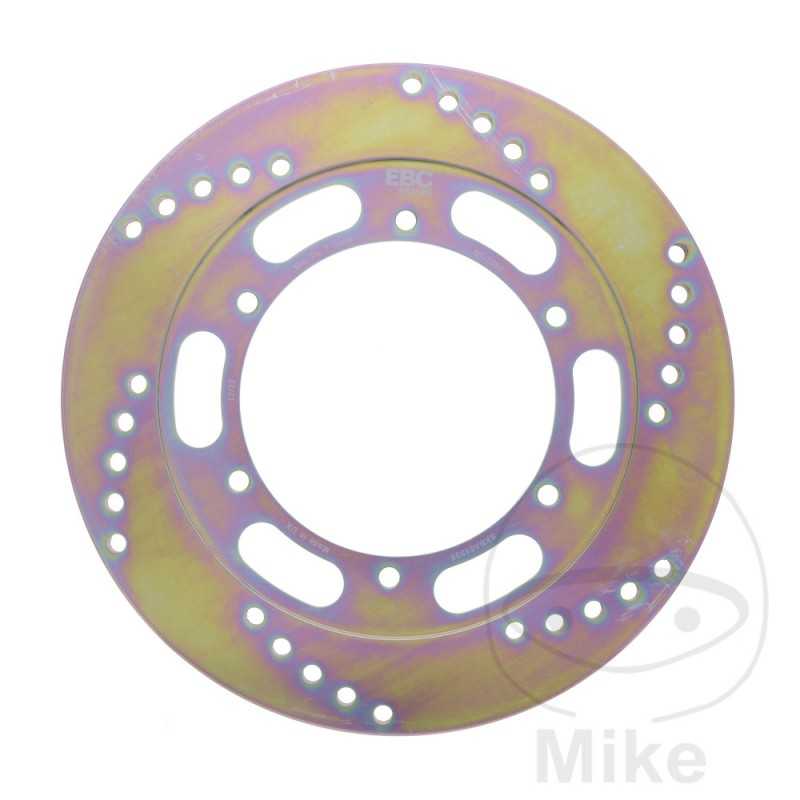

EBC BRAKE DISK 760.54.88

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is crushed in the area of the contact patch of the brake pads when braking. It is only in this area that a light oxide film with a longer service life can form.

The brake discs are drilled in the bird's swing design in order to pass through with as few holes as possible and at the same time the cleaning of the brake disc from rainwater and brake dust is optimized. The fewer holes drilled, the better the wet braking behavior and less wear.

- Brake ring milled in HPSR forged steel with low carbon content.

- Therefore, there is no distortion of the brake disc even under the highest loads.

- Without glazing of the braking surface, the coefficient of friction remains constant.

- Drilled braking surface with optimized hole pattern.

- Galvanized to protect against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for best braking performance.

- Independent design.

GOLD COLOR
OUTER DIAMETER: 282MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 7.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FJ 1100 100 CV, 74 kw 4cil. 47E 47E Bastidores: 47E henceforth00101-47E henceforth08000 1984-1985
Yamaha FJ 1200 100 CV, 74 kw 4cil. 1XJ 1XJ Bastidores: 1XJ henceforth00101-1XJ henceforth05000 1986
Yamaha FJ 1200 100 CV, 74 kw 4cil. 1XJ 1XJ Bastidores: 1XJ henceforth05101-1XJ henceforth10000 1987
Yamaha FJ 1200 100 CV, 74 kw 4cil. 3CW 3CW1 Bastidores: 3CW henceforth00101-3CW henceforth06000 1988-1989
Yamaha FJ 1200 100 CV, 74 kw 4cil. 3CW 3CW2 Bastidores: 3CW henceforth06101-3CW henceforth11000 1990
Yamaha FJ 1200 100 CV, 74 kw 4cil. 3YA 3YA1 Bastidores: 3YA henceforth00101-3YA henceforth05000 1991
Yamaha FJ 1200 100 CV, 74 kw 4cil. 3YA 3YA3 Bastidores: 3YA henceforth07101-- 1992
Yamaha FJ 1200 98 CV, 72 kw 4cil. 3YA 3YA3 Bastidores: 3YA henceforth07101-- 1993-1997
Yamaha FJ 1200 A ABS 100 CV, 74 kw 4cil. 3YA 3YA2 Bastidores: 3YA henceforth05101-3YA henceforth07000 1991
Yamaha FJ 1200 A ABS 100 CV, 74 kw 4cil. 3YA 3YA4 Bastidores: 3YA henceforth11101-- 1992
Yamaha FJ 1200 A ABS 98 CV, 72 kw 4cil. 3YA 3YA4 Bastidores: 3YA henceforth11101-- 1993-1994
Yamaha VMX-12 1200 A Vmax 145 CV, 107 kw 4cil. 2WE 3JP4 Bastidores: 2WE henceforth10101-2WE henceforth14000 1990
Yamaha VMX-12 1200 AC Vmax 145 CV, 107 kw 4cil. 2WF 3JP5 Bastidores: 2WF henceforth03101-2WF henceforth05000 1990
Yamaha VMX-12 1200 B Vmax 145 CV, 107 kw 4cil. 2WE 3JP7 Bastidores: 2WE henceforth14101-2WE henceforth02000 1991
Yamaha VMX-12 1200 BC Vmax 145 CV, 107 kw 4cil. 2WF 3JP8 Bastidores: 2WF henceforth05101-2WF henceforth07000 1991
Yamaha VMX-12 1200 D Vmax 145 CV, 107 kw 4cil. 2WE 3JP9 Bastidores: 2WE henceforth20101-2WE henceforth35000 1992-1993
Yamaha VMX-12 1200 DC Vmax 145 CV, 107 kw 4cil. 2WF 3JPA Bastidores: 2WF henceforth07101-2WF henceforth08000 1992-1993
Yamaha VMX-12 1200 F Vmax 145 CV, 107 kw 4cil. 2WE 3JPF Bastidores: 2WE henceforth39101-2WE henceforth42999 1994
Yamaha VMX-12 1200 FC Vmax 145 CV, 107 kw 4cil. 2WF 3JPG Bastidores: 2WF henceforth09101-2WF henceforth10999 1994
Yamaha VMX-12 1200 G Vmax 145 CV, 107 kw 4cil. 2WE 3JPH Bastidores: 2WE henceforth43101-- 1995
Yamaha VMX-12 1200 GC Vmax 145 CV, 107 kw 4cil. 2WF 3JPJ Bastidores: 2WF henceforth11101-- 1995
Yamaha VMX-12 1200 N Vmax 145 CV, 107 kw 4cil. 1FK 1FK Bastidores: 1FK henceforth00101-1FK henceforth10000 1985-1987
Yamaha VMX-12 1200 NC Vmax 145 CV, 107 kw 4cil. 1JH 1JH Bastidores: 1JH henceforth00101-1JH henceforth02000 1985-1987
Yamaha VMX-12 1200 U Vmax 145 CV, 107 kw 4cil. 2WE 2WE Bastidores: 2WE henceforth00101-2WE henceforth03000 1988-1989
Yamaha VMX-12 1200 UC Vmax 145 CV, 107 kw 4cil. 2WF 2WF Bastidores: 2WF henceforth00101-2WF henceforth01000 1988-1989
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR3 Bastidores: 2EN henceforth12101-2EN henceforth22000 1991
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR5 Bastidores: 2EN henceforth22101-2EN henceforth28000 1992
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR6 Bastidores: 2EN henceforth28101-2EN henceforth29000 1992
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR7 Bastidores: 2EN henceforth29101-2EN henceforth31000 1992
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR8 Bastidores: 2EN henceforth31101-- 1993
Yamaha VMX-12 1200 Vmax 120 CV, 88 kw 4cil. 2EN 3LR9 Bastidores: 2EN henceforth41101-- 1993
Yamaha VMX-12 1200 Vmax 120/98 CV, 88/72 kw 4cil. 2EN 3LRA Bastidores: 2EN henceforth42101-- 1996
Yamaha VMX-12 1200 Vmax 122 CV, 90 kw 4cil. 2EN 2EN Bastidores: 2EN henceforth00101-2EN henceforth04000 1986-1987
Yamaha VMX-12 1200 Vmax 122 CV, 90 kw 4cil. 2EN 2EN Bastidores: 2EN henceforth04101-2EN henceforth06000 1988
Yamaha VMX-12 1200 Vmax 122 CV, 90 kw 4cil. 2EN 3LR1 Bastidores: 2EN henceforth06101-2EN henceforth08000 1989
Yamaha VMX-12 1200 Vmax 122 CV, 90 kw 4cil. 2EN 3LR2 Bastidores: 2EN henceforth08101-2EN henceforth10000 1990
Yamaha VMX-12 1200 Vmax 140/98 CV, 103/72 kw 4cil. 2LT 3JPR Bastidores: 2LT henceforth08371-- 1997-1998
Yamaha VMX-12 1200 Vmax 140/98 CV, 103/72 kw 4cil. VP031 3LRD Bastidores: VP031 henceforth01611-- 2001-2002
Yamaha VMX-12 1200 Vmax 98 CV, 72 kw 4cil. VP031 3LRC Bastidores: VP031 henceforth00301-- 1999-2000
