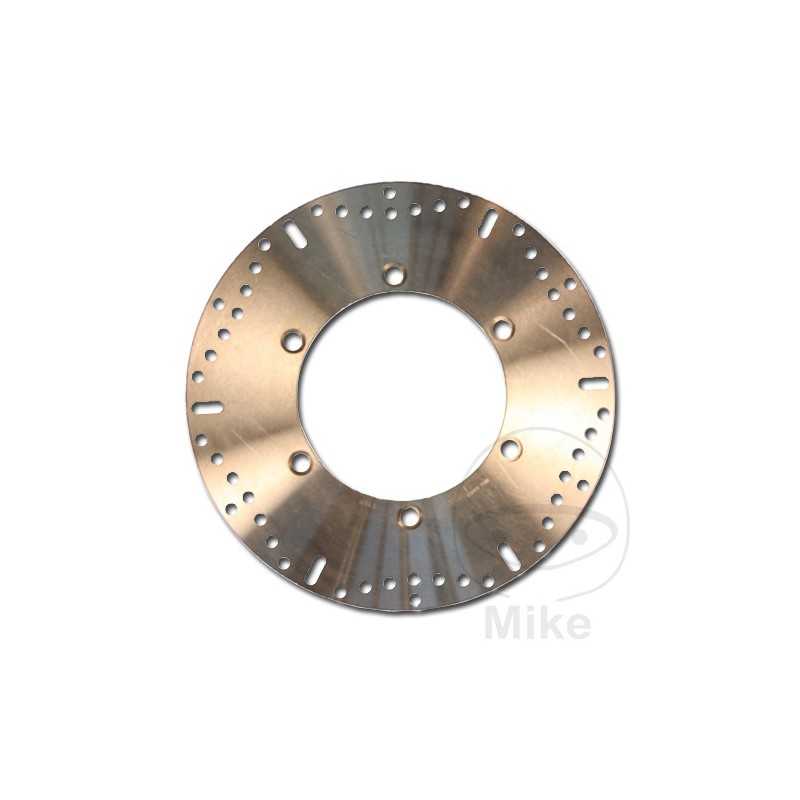

EBC BRAKE DISK 760.49.52

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 144.2MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC44A V Bastidores: JH2 RC44A-VM050001-- 1997
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC44A W Bastidores: JH2 RC44A-WM100001-- 1998
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC44A X Bastidores: JH2 RC44A-XM200001-- 1999
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC44A Y Bastidores: JH2 RC44A-YM300001-- 2000
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC50A 4 Bastidores: JH2 RC50A-4M000001-JH2 RC50A-4M009999 2004
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC50A 5 Bastidores: JH2 RC50A-5M100001-JH2 RC50A-5M199999 2005
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC50A 6 Bastidores: JH2 RC50A-6M200001-JH2 RC50A-6M209999 2006
Honda VT 750 C Shadow 45 CV, 33 kw 2cil. RC50A 7 Bastidores: JH2 RC50A-7M300001-JH2 RC50A-7M309999 2007
Honda VT 750 C Shadow 46 CV, 34 kw 2cil. RC50B 8 Bastidores: JH2 RC50B-8M400001-JH2 RC50B-8M409999 2008
Honda VT 750 C Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500001-JH2 RC50B-9K500531 2009
Honda VT 750 C Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500532-JH2 RC50B-9K509999 2009
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A 1 Bastidores: JH2 RC44A-1K410001-JH2 RC44A-1K429999 2001-2002
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A 1 Bastidores: JH2 RC44A-1K430001-JH2 RC44A-1K449999 2001-2002
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A 1 Bastidores: JH2 RC44A-1K460001-JH2 RC44A-1K469999 2001-2002
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A 1 Bastidores: JH2 RC44A-1M450001-JH2 RC44A-1M459999 2001-2002
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A 1 Bastidores: JH2 RC44A-1M470001-JH2 RC44A-1M479999 2001-2002
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A V Bastidores: JH2 RC44A-VM000001-- 1997
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A W Bastidores: JH2 RC44A-WM100001-- 1998
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A X Bastidores: JH2 RC44A-XM200001-- 1999
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A Y Bastidores: JH2 RC44A-YK400001-- 2000
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A Y Bastidores: JH2 RC44A-YM300001-- 2000
Honda VT 750 C2 Shadow Aero 45 CV, 33 kw 2cil. RC44A Y Bastidores: JH2 RC44A-YM420001-- 2000
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 7 Bastidores: JH2 RC53A-7M000001-JH2 RC53A-7M099999 2007
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 8 Bastidores: JH2 RC53A-8K110001-JH2 RC53A-8K119999 2008-2009
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 8 Bastidores: JH2 RC53A-8K120001-JH2 RC53A-8K129999 2008-2009
Honda VT 750 C2 Shadow Spirit 45 CV, 33,5 kw 2cil. RC53A 8 Bastidores: JH2 RC53A-8M100001-JH2 RC53A-8M109999 2008-2009
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C A Bastidores: JH2 RC53C-AK000001-- 2010
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C B Bastidores: JH2 RC53C-BK100001-JH2 RC53C-BK199999 2011
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C C Bastidores: JH2 RC53C-CK200001-- 2012-2013
Honda VT 750 C2B Shadow Black Spirit 46 CV, 34 kw 2cil. RC53C E Bastidores: JH2 RC53C-EK300001-- 2014-2016
Honda VT 750 CA Shadow 45 CV, 33 kw 2cil. RC50A 6 Bastidores: JH2 RC50A-6M200001-JH2 RC50A-6M209999 2006
Honda VT 750 CA Shadow 45 CV, 33 kw 2cil. RC50A 7 Bastidores: JH2 RC50A-7M300001-- 2007
Honda VT 750 CA Shadow 46 CV, 34 kw 2cil. RC50B 8 Bastidores: JH2 RC50B-8M400001-JH2 RC50B-8M409999 2008
Honda VT 750 CA Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500001-JH2 RC50B-9K500531 2009
Honda VT 750 CA Shadow 46 CV, 34 kw 2cil. RC50B 9 Bastidores: JH2 RC50B-9K500532-JH2 RC50B-9K509999 2009
Honda VT 750 DC Black Widow 34 CV, 25 kw 2cil. RC48B 1 Bastidores: JH2 RC48B-1K000001-JH2 RC48B-1K099999 2000-2001
Honda VT 750 DC Black Widow 34 CV, 25 kw 2cil. RC48B 1 Bastidores: JH2 RC48B-1K110001-JH2 RC48B-1K119999 2000-2001
Honda VT 750 DC Black Widow 34 CV, 25 kw 2cil. RC48B 1 Bastidores: JH2 RC48B-1M100001-JH2 RC48B-1M109999 2000-2001
Honda VT 750 DC Black Widow 34 CV, 25 kw 2cil. RC48B 1 Bastidores: JH2 RC48B-1M120001-JH2 RC48B-1M129999 2000-2001
Honda VT 750 DC Black Widow 34 CV, 25 kw 2cil. RC48B 2 Bastidores: JH2 RC48B-2M200001-- 2002-2003
Honda VT 750 DC Black Widow 45 CV, 33 kw 2cil. RC48A 1 Bastidores: JH2 RC48A-1K000001-JH2 RC48A-1K099999 2000-2001
Honda VT 750 DC Black Widow 45 CV, 33 kw 2cil. RC48A 1 Bastidores: JH2 RC48A-1K110001-JH2 RC48A-1K119999 2000-2001
Honda VT 750 DC Black Widow 45 CV, 33 kw 2cil. RC48A 1 Bastidores: JH2 RC48A-1M100001-JH2 RC48A-1M109999 2000-2001
Honda VT 750 DC Black Widow 45 CV, 33 kw 2cil. RC48A 1 Bastidores: JH2 RC48A-1M120001-JH2 RC48A-1M129999 2000-2001
Honda VT 750 DC Black Widow 45 CV, 33 kw 2cil. RC48A 2 Bastidores: JH2 RC48A-2M200001-- 2002-2003
Honda VT 750 S 44 CV, 32 kw 2cil. RC58A A Bastidores: JH2 RC58A-AK000001-- 2010
Honda VT 750 S 44 CV, 32 kw 2cil. RC58A B Bastidores: --- 2011-2013
Honda VT 750 S 44 CV, 32 kw 2cil. RC58A E Bastidores: JH2 RC58A-EK300001-- 2014
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 3 Bastidores: 1HF SC52A-3A000001-1HF SC52A-3A099999 2003
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 4 Bastidores: 1HF SC52A-4A100001-1HF SC52A-4A199999 2004
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 5 Bastidores: 1HF SC52A-5A200001-1HF SC52A-5A299999 2005
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 6 Bastidores: 1HF SC52A-6A300001-1HF SC52A-6A399999 2006
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 7 Bastidores: 1HF SC52A-7A400001-- 2007
