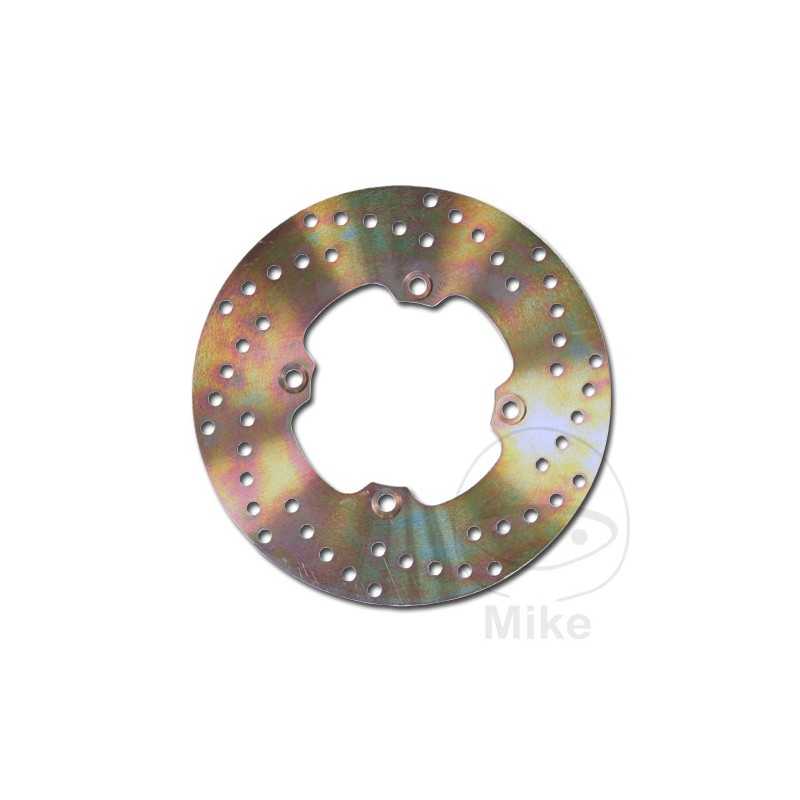

EBC BRAKE DISK 760.49.37

EBC brake discs. MADE IN UK.

Goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has a higher coefficient of friction by 18%. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which already erodes in the area of the contact patch of the pad when decelerating. Only from this area of the surface light rust can form in the long service life.

The brake discs are perforated in a bird's-wing design to make do with as few gaps as possible with optimum cleaning of the brake disc from rainwater and brake dust. The fewer holes are provided, the better the wet braking performance and the less wear.

- Rigid brake disc.

- manufactured from low carbon HPSR rolled steel.

- perforated braking surface with optimized hole pattern.

- radial plant.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered pads.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FJS 400 A SW-T ABS 39 CV, 28,7 kw 2cil. NF03B 9 Bastidores: JH2 NF03B-9K000001-- 2009-2016
Honda FJS 400 D SW-T 39 CV, 28,7 kw 2cil. NF01A 6 Bastidores: JH2 NF01A-6K000001-JH2 NF01A-6K099999 2006
Honda FJS 400 D SW-T 39 CV, 28,7 kw 2cil. NF01A 7 Bastidores: JH2 NF03A-7K100001-- 2007
Honda FJS 400 D SW-T 39 CV, 28,7 kw 2cil. NF01A 8 Bastidores: JH2 NF03A-8K200001-JH2 NF03A-8K299999 2008
Honda FJS 400 D SW-T 39 CV, 28,7 kw 2cil. NF03A 9 Bastidores: JH2 NF03A-9K000001-- 2009
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 3 Bastidores: JH2 PF01B-3K010001-JH2 PF01B-3K099999 2003
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 4 Bastidores: JH2 PF01B-4K020001-JH2 PF01B-4K099999 2004
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 5 Bastidores: JH2 PF01B-5K030001-- 2005
Honda FJS 600 A Silver Wing ABS 50 CV, 37 kw 2cil. PF01B 6 Bastidores: JH2 PF01B-6K100001-JH2 PF01B-6K199999 2006
Honda FJS 600 A Silver Wing ABS 52 CV, 38 kw 2cil. PF01B 7 Bastidores: JH2 PF01B-7K200001-- 2007-2010
Honda FJS 600 A SW-T ABS 52 CV, 38 kw 2cil. PF01C B Bastidores: JH2PF01D-BK000001-- 2011-2016
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 3 Bastidores: JH2 PF01A-3K050001-JH2 PF01A-3K099999 2003
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 4 Bastidores: JH2 PF01A-4K060001-JH2 PF01A-4K099999 2004
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 5 Bastidores: JH2 PF01A-5K070001-- 2005
Honda FJS 600 D Silver Wing 50 CV, 37 kw 2cil. PF01A 6 Bastidores: JH2 PF01A-6K100001-JH2 PF01A-6K199999 2006
Honda FJS 600 Silver Wing 50 CV, 37 kw 2cil. PF01A 1 Bastidores: JH2 PF01A-1K000001-JH2 PF01A-1K099999 2001
Honda FJS 600 Silver Wing 50 CV, 37 kw 2cil. PF01A 2 Bastidores: JH2 PF01A-2K030001-JH2 PF01A-2K099999 2002
Honda NSS 350 A Forza ABS Smart Topcase 29,2 CV, 21,5 kw 1cil. NF10A M Bastidores: ZDC NF10A-MF000001-- 2021
Honda NSS 350 A Forza ABS Smart Topcase 29,2 CV, 21,5 kw 1cil. NF10A N Bastidores: ZDC NF10A-NF025001-- 2022
