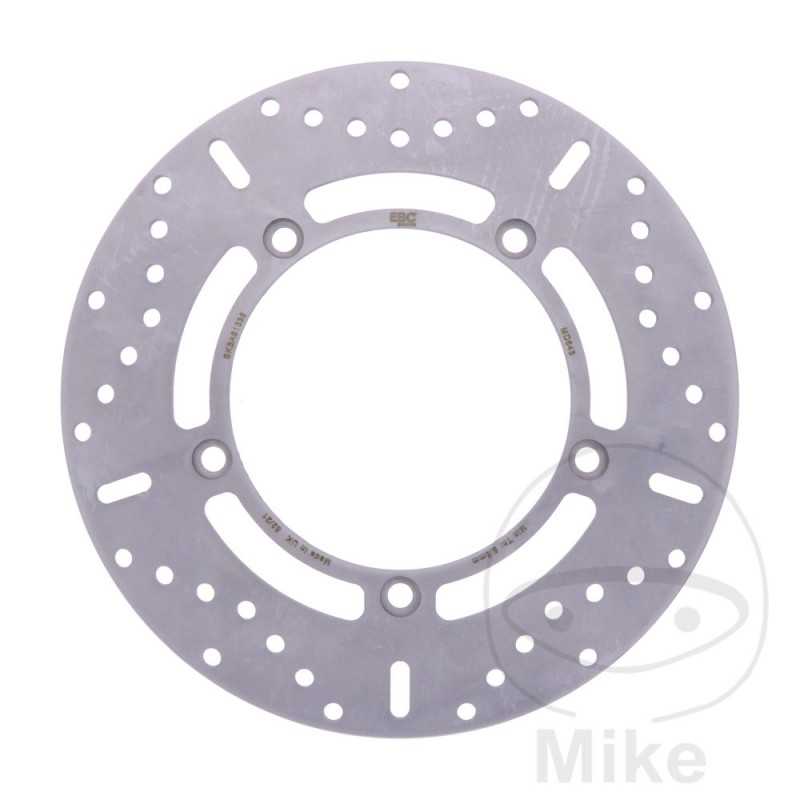

EBC BRAKE DISK 760.45.15

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to corrosion than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only from this area of the surface light rust can form in the long service life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Rigid brake disc.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- radial plant.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H Sinterbremsklötze.

- Independent design.
OUTER DIAMETER: 285MM
INSIDE DIAMETER: 144.2MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Adventurer 900 34 CV, 25 kw 3cil. T309RT Bastidores: 382A - 71699-382A - 1999
Triumph Adventurer 900 34 CV, 25 kw 3cil. T309RT Bastidores: 382A --382A - 2000-2001
Triumph Adventurer 900 67 CV, 49 kw 3cil. T309RT Bastidores: 375 - 43510-375 - 62392 1997
Triumph Adventurer 900 67 CV, 49 kw 3cil. T309RT Bastidores: 375 - 62393-375 - 71698 1998
Triumph Adventurer 900 67 CV, 49 kw 3cil. T309RT Bastidores: 375 --375 - 43509 1996
Triumph Adventurer 900 69 CV, 51 kw 3cil. T309RT Bastidores: 382A - 71699-382A - 1999
Triumph Adventurer 900 69 CV, 51 kw 3cil. T309RT Bastidores: 382A --382A - 2000-2001
Triumph America 865 56/34 CV, 41/25 kw 2cil. 986MK Bastidores: 3 --3 - 2007
Triumph America 865 56/34 CV, 41/25 kw 2cil. 986MK Bastidores: SMTTJ9111R --SMTTJ9111R - 2007
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R - 468390-SMTTJ9118R - 2011
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2008-2010
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2012-2012
Triumph America 865 EFI 61/34 CV, 45/25 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 468389 2011
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R - 694429-SMTTJ9118R - 2015
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2013-2013
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2016-2017
Triumph America 865 EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 694428 2014-2015
Triumph America 865 LT EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R - 694429-SMTTJ9118R - 2015
Triumph America 865 LT EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 2016-2017
Triumph America 865 LT EFI 61/48 CV, 45/35 kw 2cil. 986MK2 Bastidores: SMTTJ9118R --SMTTJ9118R - 694428 2014-2015
Triumph Bonneville 800 America 34 CV, 25 kw 2cil. 908M Bastidores: 1 --1 - 2002-2006
Triumph Bonneville 800 America 61 CV, 45 kw 2cil. 908M Bastidores: 1 --1 - 2002-2006
Triumph Legend 900 TT 69/31 CV, 51/23 kw 3cil. T309RT Bastidores: 381 - 92894-381 - 2000
Triumph Legend 900 TT 69/31 CV, 51/23 kw 3cil. T309RT Bastidores: 381 --381 - 1999-1999
Triumph Legend 900 TT 69/31 CV, 51/23 kw 3cil. T309RT Bastidores: 381 --381 - 2001-2001
Triumph Legend 900 TT 69/31 CV, 51/23 kw 3cil. T309RT Bastidores: 381 --381 - 92893 2000
Triumph Speedmaster 800 61/34 CV, 45/25 kw 2cil. 908ML Bastidores: 2 --2 - 2003-2004
Triumph Speedmaster 865 34 CV, 25 kw 2cil. 908ML Bastidores: 3 --3 - 2005-2007
Triumph Speedmaster 865 56 CV, 41 kw 2cil. 908ML Bastidores: 3 --3 - 2005-2007
Triumph Speedmaster 865 56/34 CV, 41/25 kw 2cil. 908ML Bastidores: SMTTJ9161R --SMTTJ9161R - 2007
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R - 469051-SMTTJ9168R - 2011
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2008-2010
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2012-2012
Triumph Speedmaster 865 EFI 61/34 CV, 45/25 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 469050 2011
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R - 694387-SMTTJ9168R - 2015
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2013-2013
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 2016-2017
Triumph Speedmaster 865 EFI 61/48 CV, 45/35 kw 2cil. 986ML2 Bastidores: SMTTJ9168R --SMTTJ9168R - 694386 2014-2015
Triumph Thunderbird 900 31 CV, 23 kw 3cil. T309RT Bastidores: 374A - 71699-374A - 92893 1999
Triumph Thunderbird 900 31 CV, 23 kw 3cil. T309RT Bastidores: 374A - 92894-374A - 2000
Triumph Thunderbird 900 31 CV, 23 kw 3cil. T309RT Bastidores: 374A --374A - 2001
Triumph Thunderbird 900 68 CV, 50 kw 3cil. T309RT Bastidores: 374 - 43510-374 - 1996
Triumph Thunderbird 900 68 CV, 50 kw 3cil. T309RT Bastidores: 374 - 62393-374 - 71698 1998
Triumph Thunderbird 900 68 CV, 50 kw 3cil. T309RT Bastidores: 374 --374 - 62392 1997
Triumph Thunderbird 900 69 CV, 51 kw 3cil. T309RT Bastidores: 374A - 71699-374A - 92893 1999
Triumph Thunderbird 900 69 CV, 51 kw 3cil. T309RT Bastidores: 374A - 92894-374A - 2000
Triumph Thunderbird 900 69 CV, 51 kw 3cil. T309RT Bastidores: 374A --374A - 2001
Triumph Thunderbird 900 69/34 CV, 51/25 kw 3cil. 309RT Bastidores: 1 --1 - 2003
Triumph Thunderbird 900 69/34 CV, 51/25 kw 3cil. T309RT Bastidores: 374A --374A - 2002
Triumph Thunderbird 900 70 CV, 52 kw 3cil. T309RT Bastidores: 339 --339 - 1995
Triumph Thunderbird 900 70 CV, 52 kw 3cil. T309RT Bastidores: 339 --339 - 43509 1996
Triumph Thunderbird 900 Sport 78 CV, 57 kw 3cil. T309RD Bastidores: 1 --1 - 2004
Triumph Thunderbird 900 Sport 78 CV, 57 kw 3cil. T309RT Bastidores: 378 --378 - 1997-2000
Triumph Thunderbird 900 Sport 82 CV, 60 kw 3cil. T309RD Bastidores: 1 --1 - 2003
Triumph Tiger 900 EFI 83 CV, 61 kw 3cil. T709 Bastidores: 711 - 71699-711 - 1999
Triumph Tiger 900 EFI 83 CV, 61 kw 3cil. T709 Bastidores: 711 --711 - 2000-2001
Triumph Tiger 955 i llanta de radios 106 CV, 78 kw 3cil. 709EN Bastidores: 730 --730 - 198874 2004
Triumph Tiger 955 i llanta de radios 98 CV, 72 kw 3cil. 709EN Bastidores: 730 --730 - 198874 2004
Triumph Tiger 955 i llanta de radios 98 CV, 72 kw 3cil. 709EN Bastidores: 730 --730 - 2001-2003
