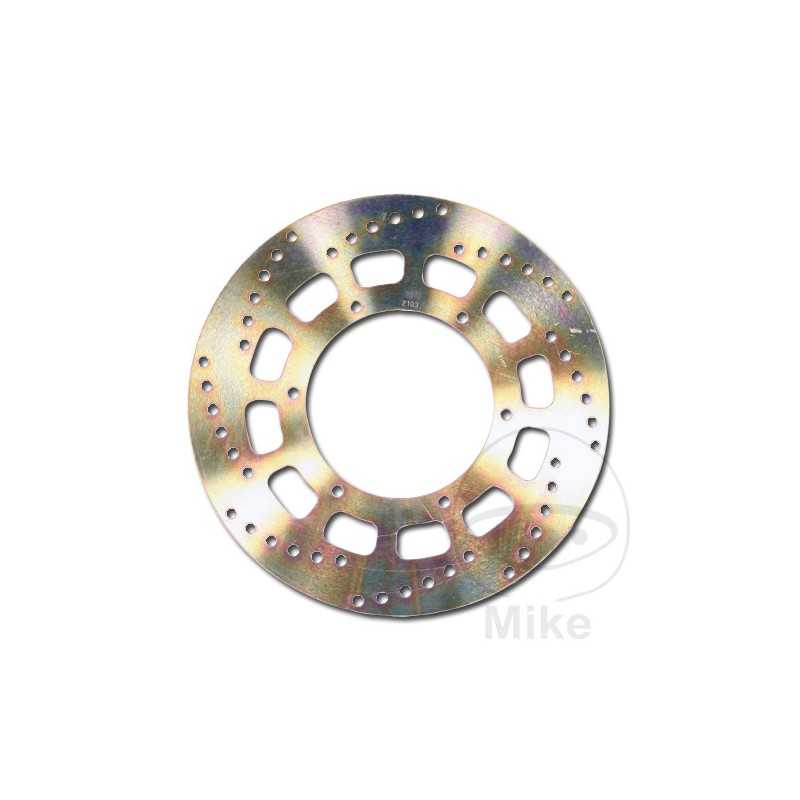

EBC BRAKE DISK 760.45.07

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 298MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.6 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP261 11C1 Bastidores: VP261 henceforth00301-- 2007
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP261 11C2 Bastidores: VP261 henceforth04962-- 2008
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP261 11C3 Bastidores: VP261 henceforth08199-- 2009
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP264 11C4 Bastidores: VP264 henceforth00301-- 2010
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP264 11C5 Bastidores: VP264 henceforth00361-- 2011-2013
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP264 11C7 Bastidores: VP264 henceforth01307-- 2014-2015
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP264 11C9 Bastidores: VP264 henceforth01589-- 2016
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP266 1CS1 Bastidores: VP266 henceforth00301-- 2011-2013
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP266 1CS5 Bastidores: VP266 henceforth01542-- 2014-2015
Yamaha XVS 1300 A Midnight Star 73 CV, 53,5 kw 2cil. VP266 1CS8 Bastidores: VP266 henceforth01948-- 2016
Yamaha XVS 1300 Custom XVS1300CU 72,7 CV, 53,5 kw 2cil. VP361 2SS1 Bastidores: VP361 henceforth00301-- 2014
Yamaha XVS 1300 Custom XVS1300CU 72,7 CV, 53,5 kw 2cil. VP365 2SS4 Bastidores: VP365 henceforth00301-- 2015
Yamaha XVS 1300 Custom XVS1300CU 72,7 CV, 53,5 kw 2cil. VP365 2SS8 Bastidores: VP365 henceforth00790-- 2016
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P1 Bastidores: VN021 henceforth00301-- 2009
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P2 Bastidores: VN021 henceforth03739-- 2010
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P3 Bastidores: VN021 henceforth04848-- 2011
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P4 Bastidores: VN021 henceforth05687-- 2012-2015
