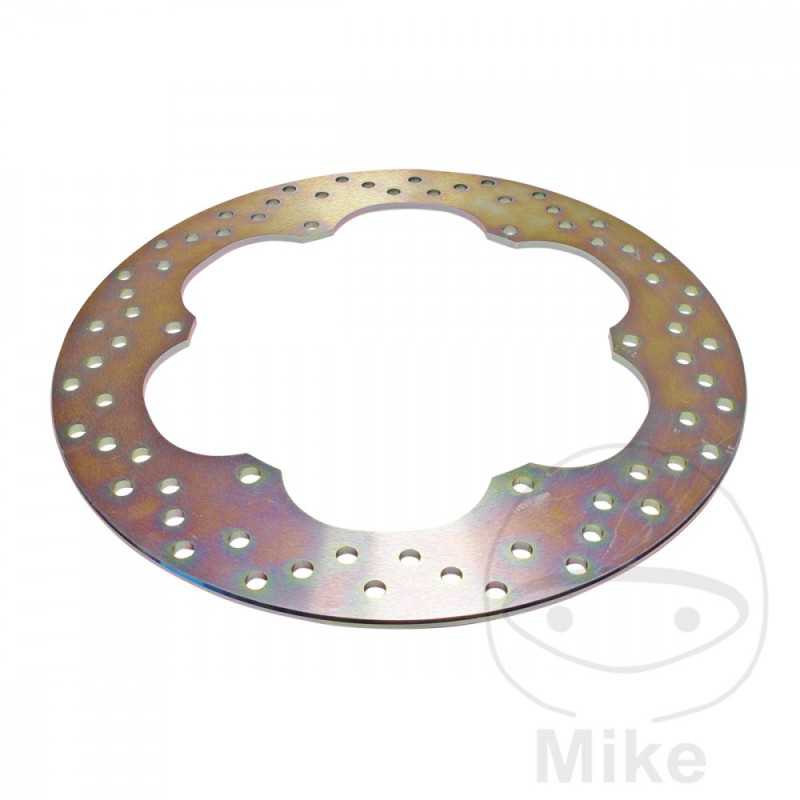

EBC BRAKE DISK 760.45.03

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 198.2MM
CIRCLE SIZE: 216 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.7MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XJ 900 S Diversion 89 CV, 66 kw 4cil. 4KM 4KM1 Bastidores: 4KM henceforth00101-4KM henceforth23099 1995
Yamaha XJ 900 S Diversion 89 CV, 66 kw 4cil. 4KM 4KM3 Bastidores: 4KM henceforth25101-- 1996
Yamaha XJ 900 S Diversion 89 CV, 66 kw 4cil. 4KM 4KM5 Bastidores: 4KM henceforth59701-- 1997
Yamaha XJ 900 S Diversion 89 CV, 66 kw 4cil. 4KM 4KM7 Bastidores: 4KM henceforth75319-- 1998-1999
Yamaha XJ 900 S Diversion 89 CV, 66 kw 4cil. 4KM 4KM9 Bastidores: 4KM henceforth98873-- 2000
Yamaha XJ 900 S Diversion 89 CV, 66 kw 4cil. 4KM 4KMB Bastidores: 4KM-107478-- 2001
Yamaha XJ 900 S Diversion 89 CV, 66 kw 4cil. 4KM 4KMD Bastidores: 4KM-113471-- 2002-2003
