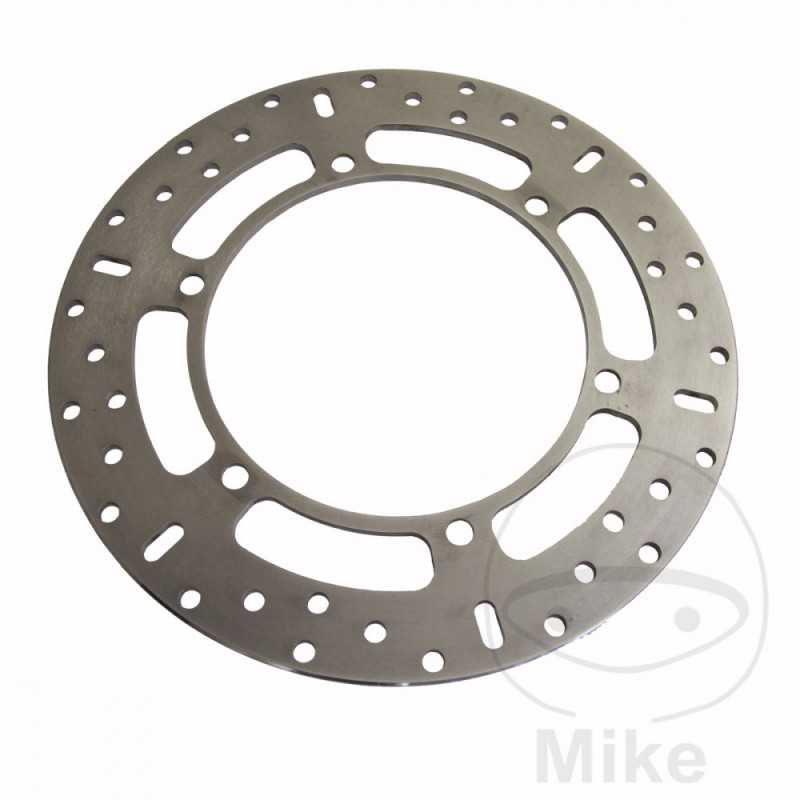

EBC BRAKE DISK 760.45.01

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 282MM
INSIDE DIAMETER: 157.2MM
CIRCLE SIZE: 176 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.8MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi Bellagio 940 ie 75 CV, 55 kw 2cil. LY000 Bastidores: --- 2007-2014
Moto Guzzi Bellagio 940 ie Aquila Nera 75 CV, 55 kw 2cil. LY000 Bastidores: --- 2011-2014
Moto Guzzi Bellagio 940 ie Deluxe 75 CV, 55 kw 2cil. LY000 Bastidores: --- 2010-2012
Moto Guzzi Breva 1100 ie 86 CV, 63 kw 2cil. LPC00 Bastidores: --- 2005-2007
Moto Guzzi Breva 1100 ie ABS 86 CV, 63 kw 2cil. LPC00 Bastidores: --- 2005-2007
Moto Guzzi Breva 1200 93 CV, 68 kw 2cil. LPG00 Bastidores: --- 2008-2011
Moto Guzzi Breva 1200 ABS 93 CV, 68 kw 2cil. LPG01 Bastidores: --- 2008-2011
Moto Guzzi Breva 850 ie 76 CV, 56 kw 2cil. LPB00/LPE Bastidores: --- 2007-2009
Moto Guzzi Griso 1100 ie 88 CV, 65 kw 2cil. LS000/LSC Bastidores: LS000 henceforth5M111135-- 2005-2008
Moto Guzzi Griso 1200 8V 110 CV, 81 kw 2cil. LSE00 Bastidores: --- 2007
Moto Guzzi Griso 1200 8V 110 CV, 81 kw 2cil. LSJ10 Bastidores: --- 2008-2012
Moto Guzzi Griso 1200 8V Special Edition 106 CV, 78 kw 2cil. LSG01 Bastidores: --- 2014
Moto Guzzi Griso 1200 8V Special Edition 110 CV, 81 kw 2cil. LSG00 Bastidores: --- 2010-2013
Moto Guzzi Griso 850 ie 76 CV, 56 kw 2cil. LSB00 Bastidores: --- 2007-2009
Moto Guzzi Norge 1200 ABS 93 CV, 68 kw 2cil. LPH011/LPL/LPUO Bastidores: --- 2006-2010
Moto Guzzi Norge 1200 GT 8V ABS 102 CV, 75 kw 2cil. LPS01/LPT00 Bastidores: --- 2011-2012
Moto Guzzi Norge 1200 GT 8V ABS 102 CV, 75 kw 2cil. LPS03 Bastidores: --- 2013-2017
Moto Guzzi Norge 850 ie 76 CV, 56 kw 2cil. LP000 Bastidores: --- 2007-2009
Moto Guzzi Sport 1200 93 CV, 68 kw 2cil. LPM00 Bastidores: --- 2007-2009
Moto Guzzi Sport 1200 8V 106 CV, 78 kw 2cil. LPJ20/LPR00/LPR01 Bastidores: --- 2009-2013
Moto Guzzi Sport 1200 8V ABS 106 CV, 78 kw 2cil. LPJ20/LPR00/LPR01 Bastidores: --- 2009-2013
Moto Guzzi Sport 1200 8V Corsa ABS 106 CV, 78 kw 2cil. LPJ20/LPR00/LPR01 Bastidores: --- 2013-2014
Moto Guzzi Sport 1200 ABS 93 CV, 68 kw 2cil. LPM01 Bastidores: --- 2007-2009
Moto Guzzi Stelvio 1200 8V 105 CV, 77 kw 2cil. LZ000 Bastidores: --- 2008-2010
Moto Guzzi Stelvio 1200 8V ABS 105 CV, 77 kw 2cil. LZA00/LZB Bastidores: --- 2009-2010
Moto Guzzi Stelvio 1200 8V ABS 105 CV, 77 kw 2cil. LZE00 Bastidores: --- 2011-2017
Moto Guzzi Stelvio 1200 NTX ABS 105 CV, 77 kw 2cil. LZA00/LZB Bastidores: --- 2009-2010
Moto Guzzi Stelvio 1200 NTX ABS 105 CV, 77 kw 2cil. LZG00 Bastidores: --- 2011-2017
