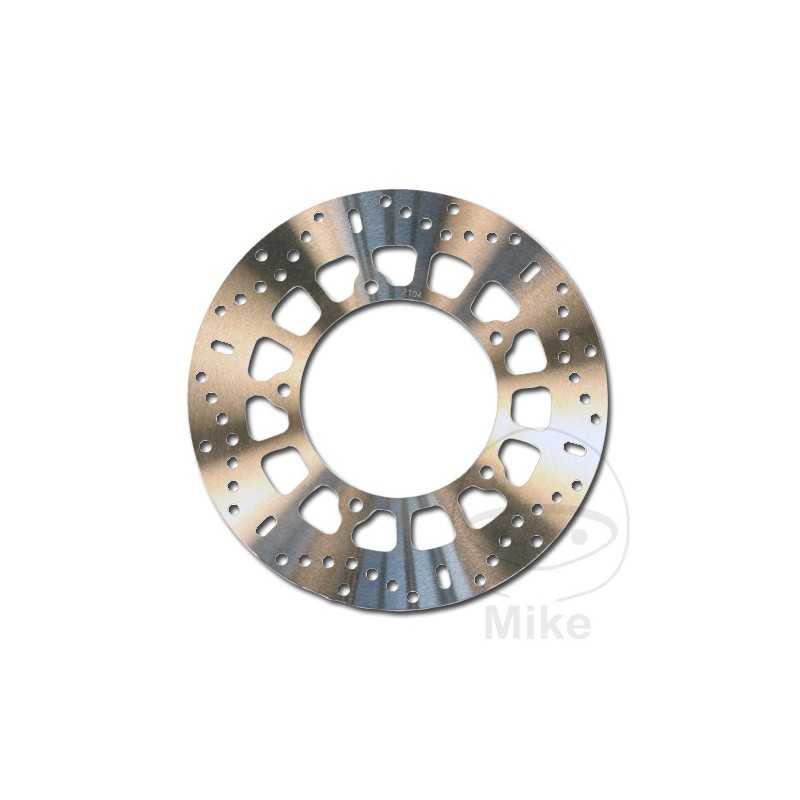

EBC BRAKE DISK 760.44.24

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 115.2MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE051 3D99 Bastidores: RE051-274253-- 2009
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE052 51D1 Bastidores: RE052 000003-- 2010-2011
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE052 51D2 Bastidores: RE052 henceforth45801-- 2012-2013
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE054 51D3 Bastidores: RE054 henceforth00101-- 2014-2016
Yamaha YBR 125 ED 10,3 CV, 7,6 kw 1cil. RE051 3D92 Bastidores: RE051 henceforth00121-- 2007-2008
Yamaha YBR 125 SPD Custom 10 CV, 7,5 kw 1cil. RE071 27S1 Bastidores: RE071 henceforth04796-- 2008-2016
Yamaha YS 125 CBS 10,6 CV, 7,8 kw 1cil. RE331 BT41 Bastidores: RE331 henceforth00006-- 2017-2021
