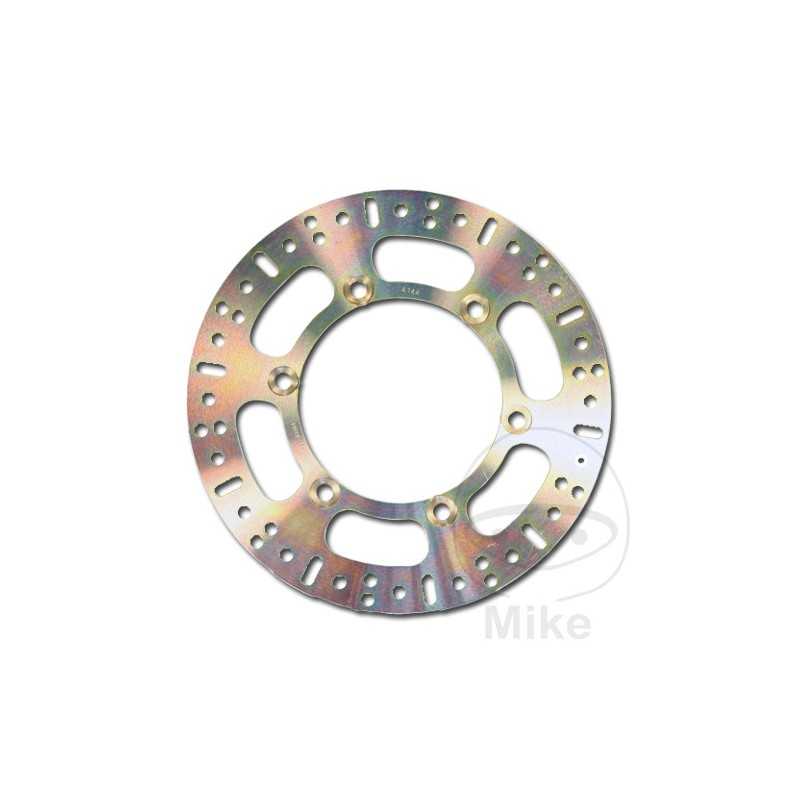

EBC BRAKE DISK 760.40.85

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.

Colour: gold
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 500 S 34 CV, 25 kw 2cil. EX500DEA E10 Bastidores: EX500DEA henceforth79001-EX500DEA-999999 2003
Kawasaki GPZ 500 S 34 CV, 25 kw 2cil. EX500DEA E9 Bastidores: EX500DEA henceforth70001-EX500DEA henceforth79000 2002
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500DEA E10 Bastidores: EX500DEA henceforth79001-EX500DEA-999999 2003
Kawasaki GPZ 500 S 60 CV, 44 kw 2cil. EX500DEA E9 Bastidores: EX500DEA henceforth70001-EX500DEA henceforth79000 2002
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B1 Bastidores: EX500A henceforth10501-EX500A henceforth20500 1988
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B2 Bastidores: EX500A henceforth20501-EX500A henceforth32900 1989
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B2 Bastidores: EX500A henceforth35337-EX500A henceforth36500 1989
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B3 Bastidores: EX500A henceforth33001-EX500A henceforth35336 1990
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B3 Bastidores: EX500A henceforth36501-EX500A henceforth48000 1990
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B4 Bastidores: EX500A henceforth48001-EX500A henceforth60000 1991
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B5 Bastidores: EX500A henceforth60001-EX500A henceforth75000 1992
Kawasaki GPZ 500 S 60/50/27 CV, 44/37/20 kw 2cil. EX500A B6 Bastidores: EX500A henceforth75001-EX500A-999999 1993
Kawasaki GPZ 500 S 60/50/34 CV, 44/37/25 kw 2cil. EX500DEA E7 Bastidores: EX500DEA henceforth56001-EX500DEA henceforth70000 2000-2001
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E1 Bastidores: EX500D henceforth00001-EX500D henceforth09000 1994
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E2 Bastidores: EX500D henceforth09001-EX500D henceforth25000 1995
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E3 Bastidores: EX500D henceforth25001-EX500D henceforth35000 1996
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E4 Bastidores: EX500D henceforth35001-EX500D henceforth40000 1997
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500D E5 Bastidores: EX500D henceforth40001-EX500D henceforth48000 1998
Kawasaki GPZ 500 S 60/50/34/27 CV, 44/37/25/20 kw 2cil. EX500DEA E6 Bastidores: EX500DEA henceforth48001-EX500DEA henceforth56000 1999
