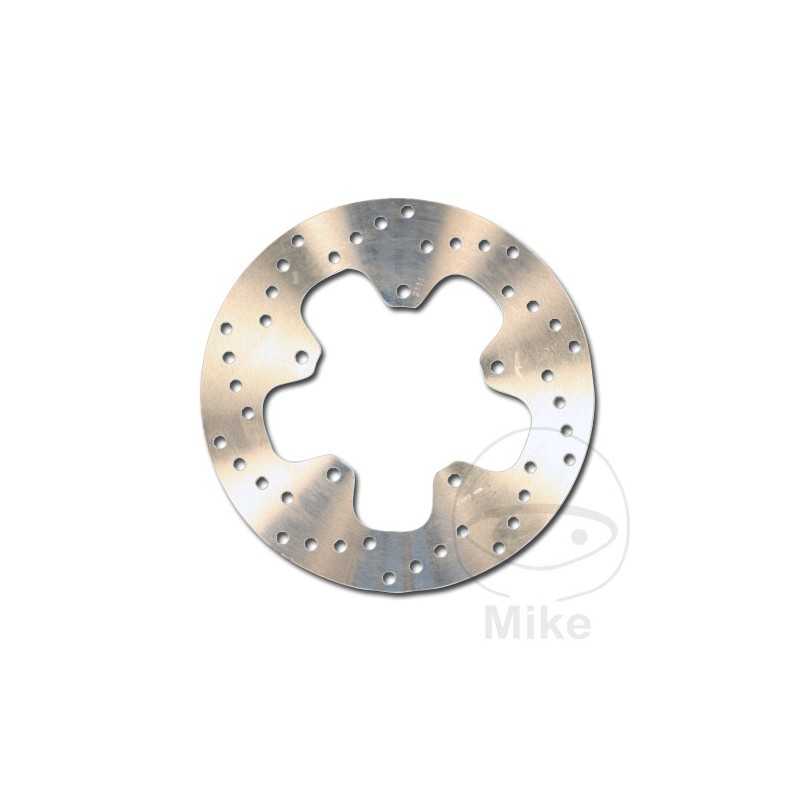

EBC brake discs. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of HPSR low carbon laminated steel.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.
- Independent design.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 102.3MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.6 MM
THICKNESS: 4.2MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D71 Bastidores: RE061 henceforth00159-- 2008
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D72 Bastidores: RE061 henceforth18938-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D74 Bastidores: RE061 henceforth24211-- 2010
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D75 Bastidores: RE061 henceforth23027-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D77 Bastidores: RE061 henceforth40001-- 2011
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D79 Bastidores: RE061 henceforth48001-- 2012
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D7F Bastidores: RE061 henceforth57001-- 2013
Yamaha YZF-R 125 Anniversary 15 CV, 11 kw 1cil. RE061 5D7B Bastidores: RE061 henceforth54001-- 2012-2013
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of HPSR low carbon laminated steel.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.
- Independent design.
OUTER DIAMETER: 230MM
INSIDE DIAMETER: 102.3MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.6 MM
THICKNESS: 4.2MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D71 Bastidores: RE061 henceforth00159-- 2008
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D72 Bastidores: RE061 henceforth18938-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D74 Bastidores: RE061 henceforth24211-- 2010
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D75 Bastidores: RE061 henceforth23027-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D77 Bastidores: RE061 henceforth40001-- 2011
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D79 Bastidores: RE061 henceforth48001-- 2012
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D7F Bastidores: RE061 henceforth57001-- 2013
Yamaha YZF-R 125 Anniversary 15 CV, 11 kw 1cil. RE061 5D7B Bastidores: RE061 henceforth54001-- 2012-2013
760.39.21
10 Items
Data sheet
- EXTERNAL DIAMETER
- 230 MM
- CIRCLE MEASUREMENT
- 120 MM
- HOLE DIAMETER
- 8.6MM
- INSIDE DIAMETER
- 120 MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 5
- THICKNESS
- 4.2MM
