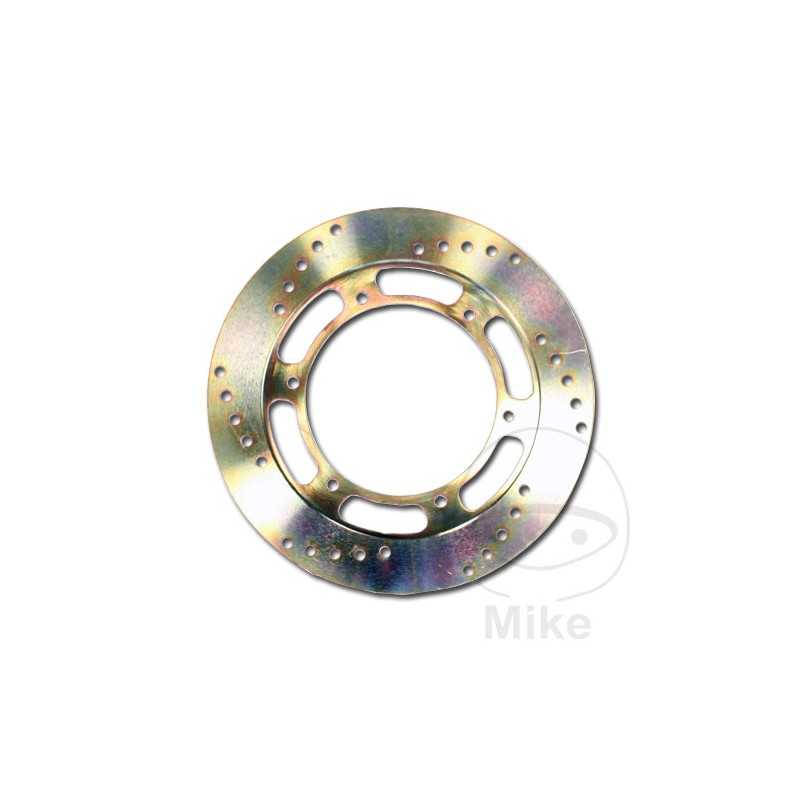

EBC BRAKE DISK 760.39.05

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.

Colour: gold
OUTER DIAMETER: 267MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 8.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FZ 750 100 CV, 74 kw 4cil. 1FN 1FN Bastidores: 1FN henceforth00101-1FN henceforth13000 1985
Yamaha FZ 750 100 CV, 74 kw 4cil. 1FN 1TV Bastidores: 1FN henceforth13101-1FN henceforth25000 1986
Yamaha FZX 750 Fazer 94 CV, 69 kw 4cil. 2JE 2JE Bastidores: 2JE henceforth00101-2JE henceforth05000 1987
Yamaha FZX 750 Fazer 94 CV, 69 kw 4cil. 2JE 2JE Bastidores: 2JE henceforth05101-2JE henceforth13000 1988-1989
Yamaha RD 500 LC YPVS 88 CV, 65 kw 4cil. 1GE 1GE Bastidores: 1GE henceforth00101-1GE henceforth20000 1985
Yamaha RD 500 LC YPVS 88 CV, 65 kw 4cil. 47X 47X Bastidores: 47X henceforth00101-47X henceforth14000 1984
Yamaha XJ 750 87 CV, 64 kw 4cil. 41Y 41Y Bastidores: 41Y henceforth00101-41Y henceforth20000 1984-1985
Yamaha XJ 900 97 CV, 71 kw 4cil. 31A 31A Bastidores: 31A henceforth00101-31A henceforth30000 1983
Yamaha XJ 900 97 CV, 71 kw 4cil. 31A 42N Bastidores: 31A henceforth34101-31A henceforth50000 1984
Yamaha XJ 900 98 CV, 72 kw 4cil. 58L 1FW Bastidores: 58L henceforth10101-58L henceforth13000 1985
Yamaha XJ 900 98 CV, 72 kw 4cil. 58L 1FW Bastidores: 58L henceforth13101-58L henceforth20000 1986
Yamaha XJ 900 F 92 CV, 68 kw 4cil. 4BB 4BB1 Bastidores: 4BB henceforth00101-4BB henceforth08000 1991
Yamaha XJ 900 F 92 CV, 68 kw 4cil. 4BB 4BB2 Bastidores: 4BB henceforth08101-- 1992-1994
Yamaha XJ 900 F 98 CV, 72 kw 4cil. 58L 2HL Bastidores: 58L henceforth20101-58L henceforth29000 1987-1988
Yamaha XJ 900 F 98 CV, 72 kw 4cil. 58L 3NG1 Bastidores: 58L henceforth29101-58L henceforth37000 1989
Yamaha XJ 900 F 98 CV, 72 kw 4cil. 58L 3NG2 Bastidores: 58L henceforth37101-58L henceforth45000 1990
Yamaha XJ 900 F 98 CV, 72 kw 4cil. 58L 58L Bastidores: 58L henceforth00101-58L henceforth10000 1985-1986
