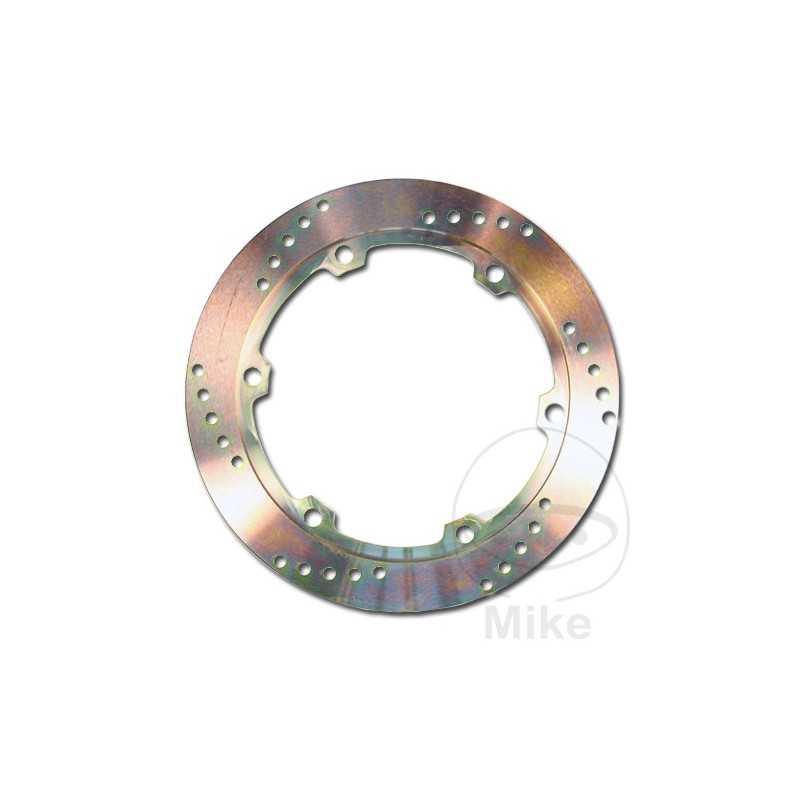

EBC BRAKE DISK 760.38.63

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Brake ring milled in forged HPSR steel with low carbon content.

- Therefore, there is no distortion of the brake disc even under the highest load.

- No glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for the best braking performance.

- Independent design.

GOLD COLOR
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 185.2MM
CIRCLE SIZE: 206 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 M Bastidores: SC22-2300101-SC22-2300170 1991
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 N Bastidores: SC22-2400001-- 1992
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 P Bastidores: SC22-2500001-- 1993
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 R Bastidores: SC22-2600001-- 1994
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22 S Bastidores: SC22-2700001-- 1995
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A T Bastidores: SC22A-TA000001-- 1996
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A T Bastidores: SC22A-TA710001-- 1996
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A V Bastidores: 1HF SC22A-VA000001-- 1997
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC22A V Bastidores: 1HF SC22A-VA720001-- 1997
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 M Bastidores: SC29-OA300101-SC29-OA300150 1991
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 N Bastidores: SC29 henceforthA400001-- 1992
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 R Bastidores: 1HF SC229 henceforthA600001-- 1994
Honda GL 1500 A Goldwing Aspencade 100 CV, 74 kw 6cil. SC29 S Bastidores: SC229 henceforthA700001-- 1995
Honda GL 1500 Goldwing 100 CV, 74 kw 6cil. SC22 J Bastidores: SC22-2000106-SC22-2002033 1988
Honda GL 1500 Goldwing 100 CV, 74 kw 6cil. SC22 K Bastidores: SC22-2100101-SC22-2101341 1989
Honda GL 1500 Goldwing 100 CV, 74 kw 6cil. SC22 L Bastidores: SC22-2200282-SC22-2200480 1990
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 M Bastidores: SC22-4000631-SC22-4000880 1991
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 N Bastidores: SC22-4100340-- 1992
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 P Bastidores: SC22-4200001-- 1993
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 R Bastidores: SC22-4300001-- 1994
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 S Bastidores: SC22-4400001-- 1995
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B V Bastidores: 1HF SC22B-VA000001-- 1997
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B X Bastidores: 1HF SC22B-XA200001-- 1999
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B Y Bastidores: 1HF SC22B-YA300001-- 2000
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22C T Bastidores: SC22C-TA000001-- 1996
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22C W Bastidores: 1HF SC22C-WA100001-- 1998
